5 - Operation
56
Filtered Fast Fill System
The ‘Filtered Fast Fill’ allows the operator to fill the sprayer from an
external water source (such as a dam or tank) using an auxiliary
pump. The system includes a Cam-Lock coupling on the inlet and a
high capacity in line filter.

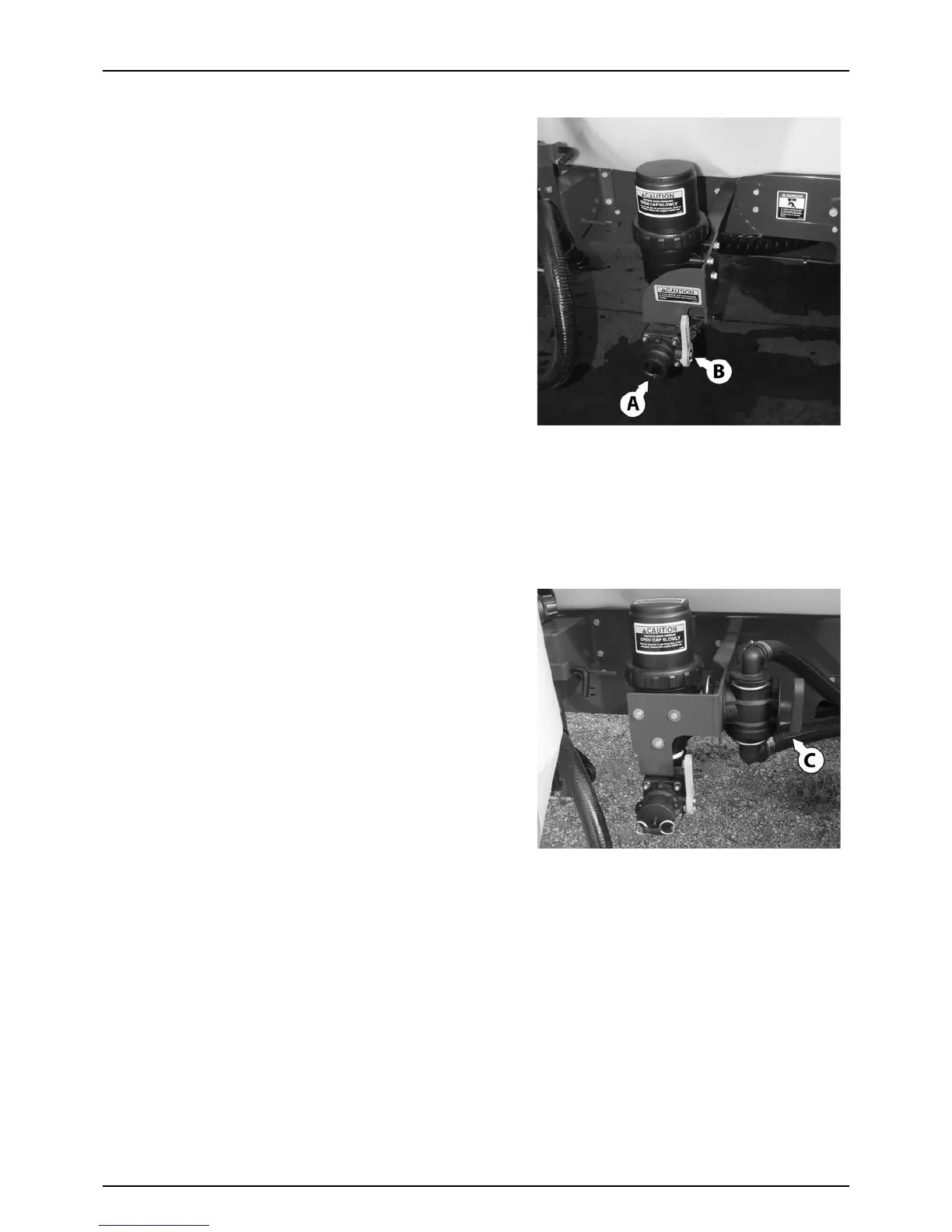

1. Remove the cover from the Cam-Lock coupling (A) and connect
a hose being fed from an auxiliary pump and external water
source.
2. Run the auxiliary pump and engage the Quick-Fill ball valve (B)
to fill.
3. Watch the tank level indicator closely to prevent over filling.
4. To stop filling close the Quick-Fill ball valve (B), turn off the
pump, disconnect the hose and replace the Cam-lock coupling
dust cover.
μ
ATTENTION! The optional flow meter is only available on
sprayers with the “Quick-Fill” system and is not offered on
machines with venturi or Banjo pump fast fill systems.
±
WARNING! Do not leave the sprayer while filling the tank and watch the level indicator closely to prevent over filling..
μ
AT TENTION! Due to risk of contamination it is prohibited in some areas to fill a sprayer from open water ways such as
lakes and rivers etc. Contact your local authorities for information about laws specific to your area.
Directional fill valve (optional)
The Filtered Fast Fill System can by equipped with a “Directional Fill
Valve“(C). By turning the valve system can be used to fill either “Main
Tank” or “Rinse Tank”. The operator can control the speed at which
filling takes place by adjusting the quick fill ball valve on the sprayer.
