Harman Kardon AVR 1510 User Manual

13
ENGLISH
AVR
Making Connections
Making Connections
CAUTION: Before making any connections to the audio/video receiver, ensure
that the AVR’s AC cord is unplugged from the AC outlet. Making connections
with the receiver plugged in and turned on could damage the speakers.

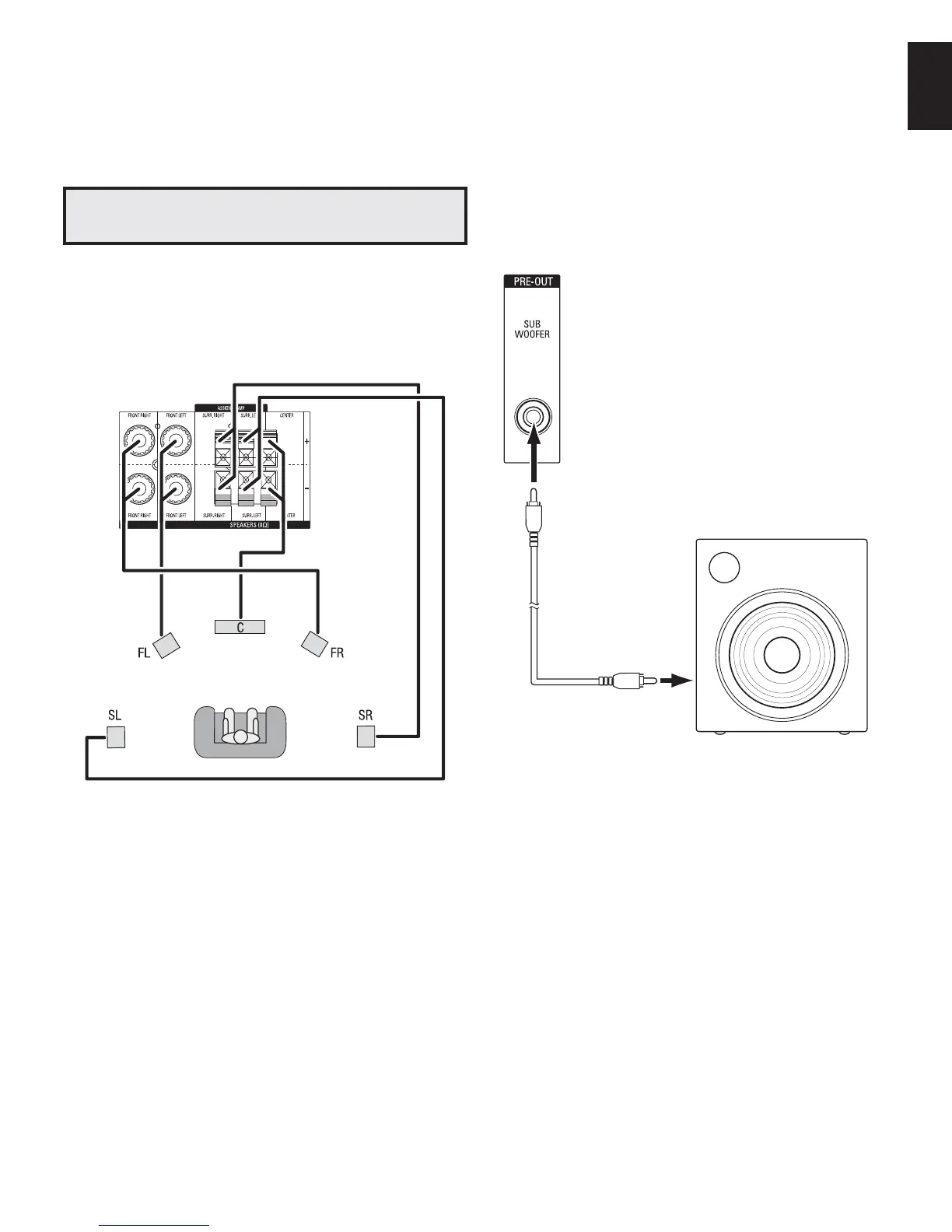

Connect Your Speakers
After you have placed your loudspeakers in the room as explained in Place Your Speakers,
on page 10, connect each speaker to its color-coded terminal on the AVR as explained in
Speaker Connections, on page 11. Connect the speakers as shown in the illustration.
Connect Your Subwoofer
Use a single RCA audio cable to connect the AVR’s Subwoofer connector to your subwoofer
as explained in Subwoofer Connections, on page 11. Consult your subwoofer’s user
manual for specific information about making connections to it.
Single
RCA Audio
Cable
(not supplied)
Powered
Subwoofer
AVR Subwoofer
Connection

Harman Kardon AVR 1510 Specifications

Audio Specifications

stereo power	75W per channel, two channels driven @ 6/8 ohms, 1kHz, <0.1% THD
multichannel power	75W per channel, two channels driven @ 6/8 ohms, 1kHz, <0.1% THD
input sensitivity/impedance	250mV/27k ohms
signal-to-noise ratio (IHF-A)	75dB
frequency response (@ 1W)	10Hz – 130kHz (+0dB/–3dB)
high instantaneous current capability (HCC)	±25 amps
slew rate	40V/sec

FM Tuner Specifications

frequency range	87.5MHz – 108.0MHz
usable sensitivity IHF	1.3µV/13.2dBf
signal-to-noise ratio (mono/stereo)	70dB/68dB
distortion (mono/stereo)	0.2%/0.3%
stereo separation	40dB @ 1kHz
selectivity (±400kHz)	70dB

AM Tuner Specifications

frequency range	520kHz – 1, 510kHz
signal-to-noise ratio	38dB
usable sensitivity (loop)	375µV
distortion (1kHz, 50% mod)	1.0%
selectivity (±10kHz)	30dB

Video Specifications

television format	NTSC
input level/impedance	1Vp-p/75 ohms
output level/impedance	1Vp-p/75 ohms
video frequency response (composite video)	10Hz – 8MHz (–3dB)
HDMI	Supports up to 4K x 2K

General Specifications

power requirement	120V AC / 60Hz
power consumption	<0.5W (standby); 410W maximum
dimensions (H x W x D)	4-3/4" x 17-5/16" x 11-13/16" (121mm x 440mm x 300mm)
weight	10 lb (4.6kg)
