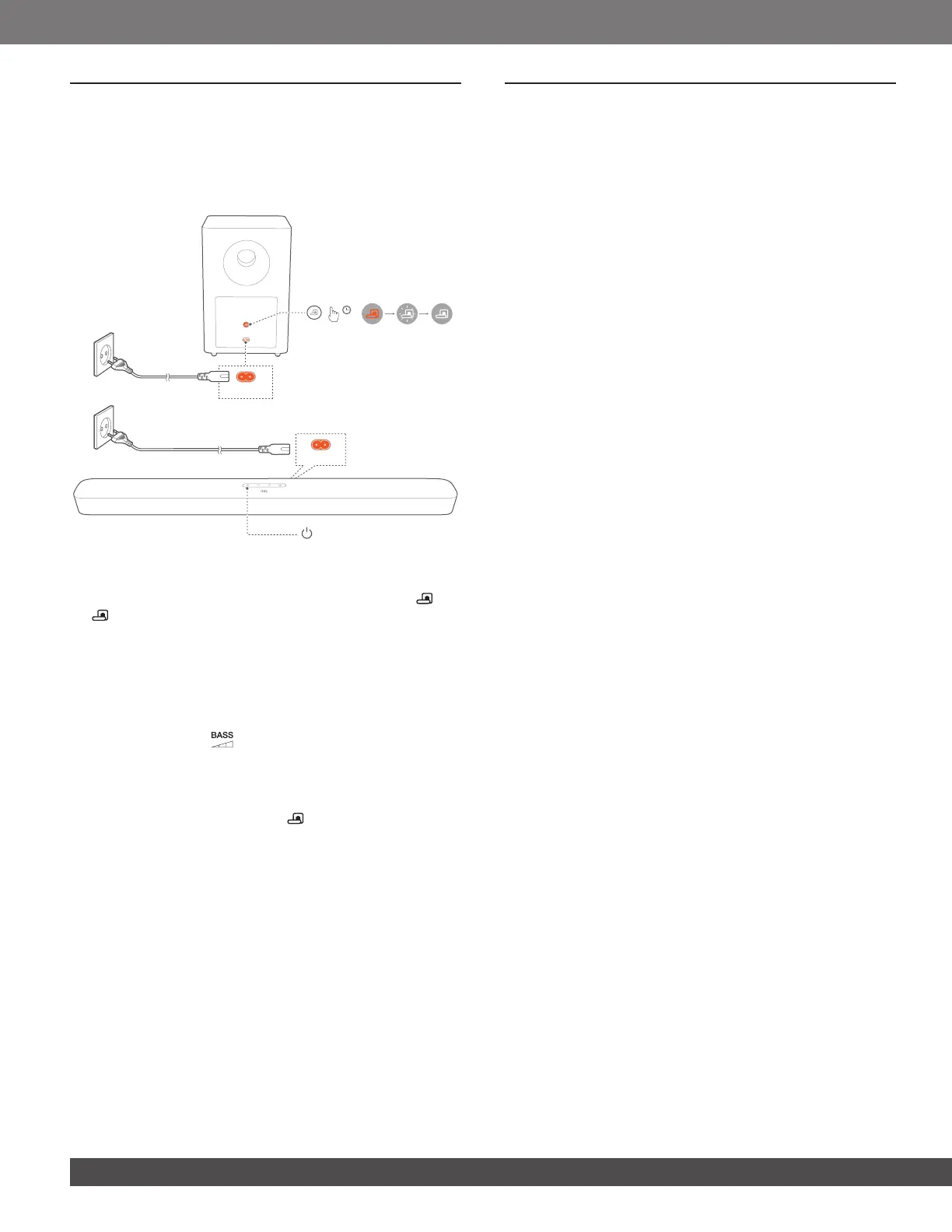

10. RE-CONNECT JBL BAR 2.0 SUB
(SOLD SEPARATELY)
After you connect the JBL BAR 2.0 SUB subwoofer to power,
it is automatically paired and connected with soundbar. In some
special cases, you may need to pair them again.
POWER
POWER
3S
To re-enter the subwoofer pairing mode
1. On the JBL BAR 2.0 SUB subwoofer, press and hold until
ashes white.
2. On the soundbar,
a) Check that the wireless dongle of JBL BAR 2.0 SUB has
been properly connected to the TYPE C connector and
the soundbar is switched on;
b) To enter the subwoofer pairing mode on the soundbar,
press and hold on the remote control for more than
three seconds, and then press - on the remote control.
Notes:
– The subwoofer will exit the pairing mode in three minutes if pairing
and connection are not completed. turns from ashing white to
solid amber.
11. PRODUCT SPECIFICATIONS
General specication:
• Power supply: 100 - 240 V AC, ~ 50/60 Hz
• Total speaker power output (Max. @THD 1%): 80 W
• Soundbar output power (Max. @THD 1%): 2 x 40 W
• Soundbar transducer: 2 x racetrack drivers
• Soundbar standby power: < 0.5 W
• Operating temperature: 0°C - 45 °C
Video specication:
• HDMI Video output (With Audio return channel): 1
Audio specication:
• Frequency response: 70 Hz - 20 KHz
• Audio inputs: 1 Optical, Bluetooth, USB (USB playback is
available in US version. For other versions, USB is for Service
only.) , USB Type C (For wireless subwoofer dongle only.)
USB (Type A) specification (Audio playback is for US version
only):
• USB port: Type A
• USB rating: 5 V DC / 0.5 A
• Supporting le format: mp3, wav
• MP3 Codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG
2.5 Layer 3
• MP3 sampling rate: 16 KHz - 48 KHz
• MP3 bitrate: 80 kbps - 320 kbps
• WAV sample rate: 16 KHz - 48 KHz
• WAV bitrate: Up to 3000 kbps
Wireless specication:
• Bluetooth version: 4.2
• Bluetooth prole: A2DP V1.3, AVRCP V1.5
• Bluetooth frequency range: 2402 MHz - 2480 MHz
• Bluetooth Max. transmitting power: <10 dbm (EIRP)
• Modulation type: GFSK, π/4 DQPSK, 8DPSK
Dimensions:
• Soundbar dimensions (W x H x D):
614 x 58 x 90 mm / 24.17” x 2.28” x 3.54”
• Soundbar weight: 1.61 kg
• Packaging dimensions (W x H x D): 855 x 125 x 145 mm
• Packaging weight (Gross weight): 2.6 kg

Harman JBL BAR 2.0 PLUS Specifications

General

Brand	Harman
Model	JBL BAR 2.0 PLUS
Category	Speaker System
Language	English
