55
HDMI cable
Side caps**
(For the soundbar) (For the detachable speakers)
**For some regions only.
Wall-mounting kit
x 2
x 2
x 6x 6
x 2
x 2
x 2
Product information & wall-mounting template

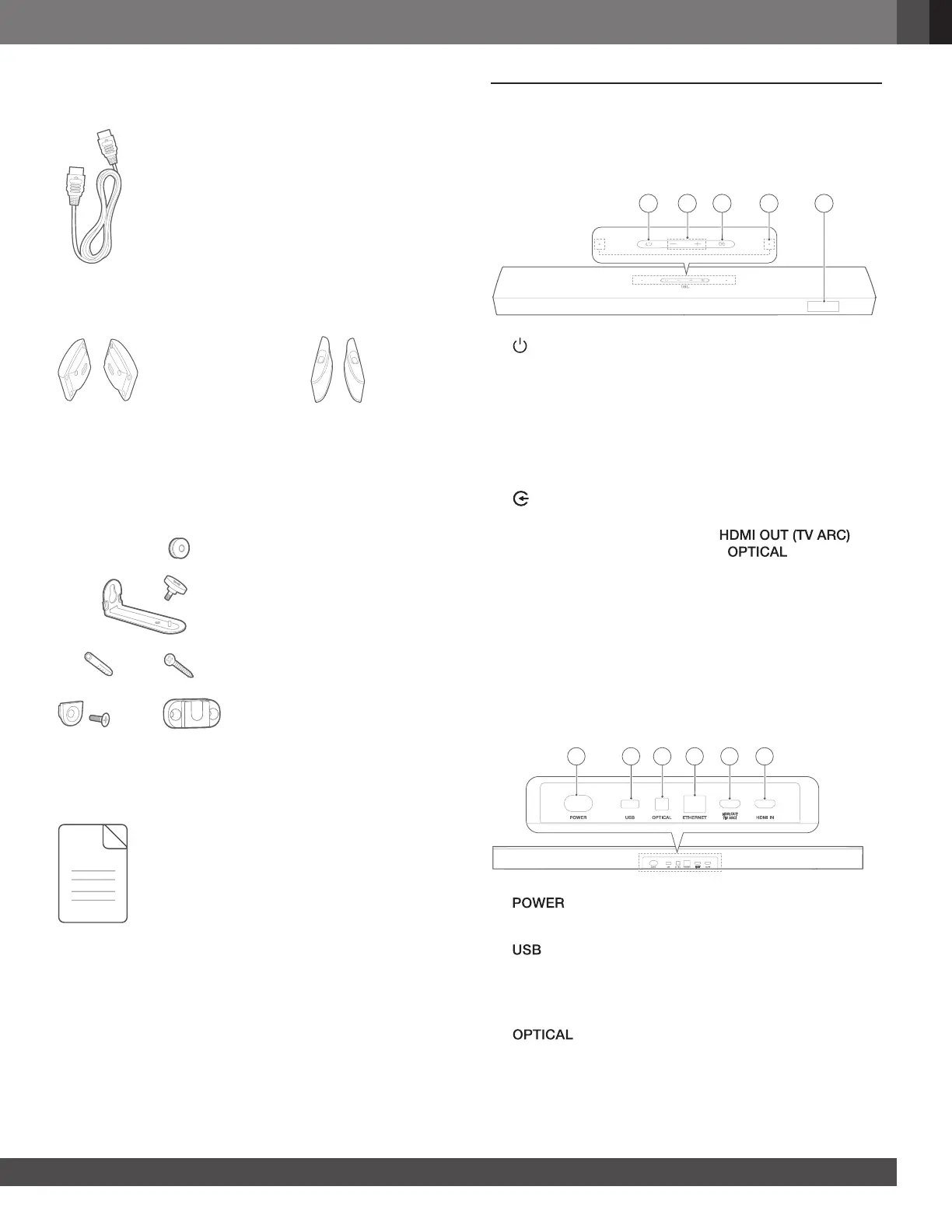

3. PRODUCT OVERVIEW
3.1 Soundbar
Controls
1 3 4 52
1) (Power)
• Switch on or to standby
2) -/+ (Volume)
• Decrease or increase the volume
• Press and hold to decrease or increase the volume
continuously
• Press the two buttons together to mute or unmute
3)
(Source)
• Select a sound source: TV (default, for audio input
from TV connection where the
connector is prioritized over the connector),
Bluetooth or HDMI IN.
4) Microphone
• For audio calibration (wireless surround sound)
(For details, see “Sound calibration” in the “SETUP”
chapter.)
5) Status display
Rear connectors
1 2 3 4 5 6
1)
• Connect to power (with the supplied power cord)
2)
• USB connector for software update
• Connect to a USB storage device for MP3 le playback
(for US version only)
3)
• Connect to the optical output on your TV or digital device
To Next Page
