A) Wall-mount the soundbar
1
5
32
≤8 mm/
0.31"
4mm/
0.16"
≥30 mm/1.18"
4
2” (50mm)
1a)
1b)
1c)

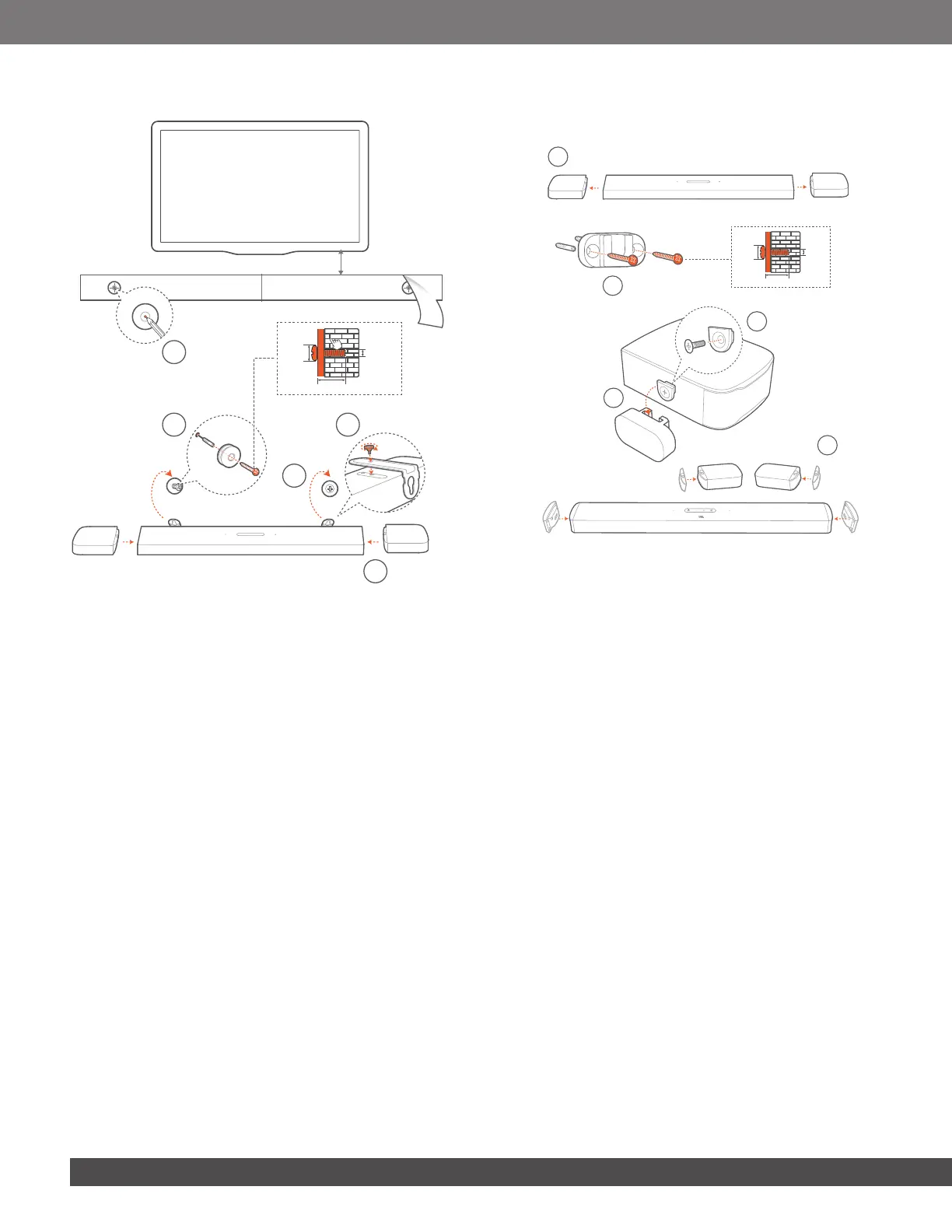

1. Preparation:
a) With the distance of about 2” (50mm) from your TV, stick
the supplied wall-mounting template to a wall by using
adhesive tapes.
b) Use your ballpen tip to mark the screw holder location.
Remove the template.
c) On the marked location, drill a 4 mm/0.16” hole.
2. Install the support for wall-mounting bracket.
3. With the screw, fasten the wall-mounting bracket onto the
bottom of the soundbar.
4. Mount the soundbar.
5. After the soundbar is securely wall-mounted, dock the two
detachable speakers onto the soundbar.
NOTES:
− Make sure that the wall can support the weight of the soundbar.
− Install on a vertical wall only.
− Avoid a location under high temperature or humidity.
− Before wall-mounting, make sure that cables can be properly
connected between the soundbar and external devices.
− Before wall-mounting, make sure that the soundbar is unplugged from
power. Otherwise, it may cause an electric shock.
− To move the soundbar, first remove the two detachable speakers to
avoid accidental damage.
B) Wall-mount the detachable speakers as rear
surround speakers
3
5
4
1
2
≤8 mm/
0.31"
4mm/
0.16"
≥30 mm/1.18"
1. From the soundbar, remove the two detachable speakers.
2. Install the wall-mounting bracket.
3. Fasten the support onto the back of the speakers.
4. Mount the speakers.
5. Install the side caps as needed.
