IMPORTANT: Disconnect the vehicle's negative (–) battery
terminal before beginning the installation.
• Always wear protective eyewear when using tools.
• Choose a safe mounting location, away from moisture. Check
clearances on both sides of a planned mounting surface. Be
sure that screws or wires will not puncture brake lines, fuel
lines, or wiring harnesses and that wire routing will not interfere
with the safe vehicle operation. Use caution when drilling or
cutting in the mounting area.
• Choose a location that provides enough air circulation.
• Do not mount the amplifier with the heat sink facing downward,
as this interferes with cooling.
• Mount the amplifier so that it will not be damaged by the feet of
backseat passengers or shifting cargo in the trunk.

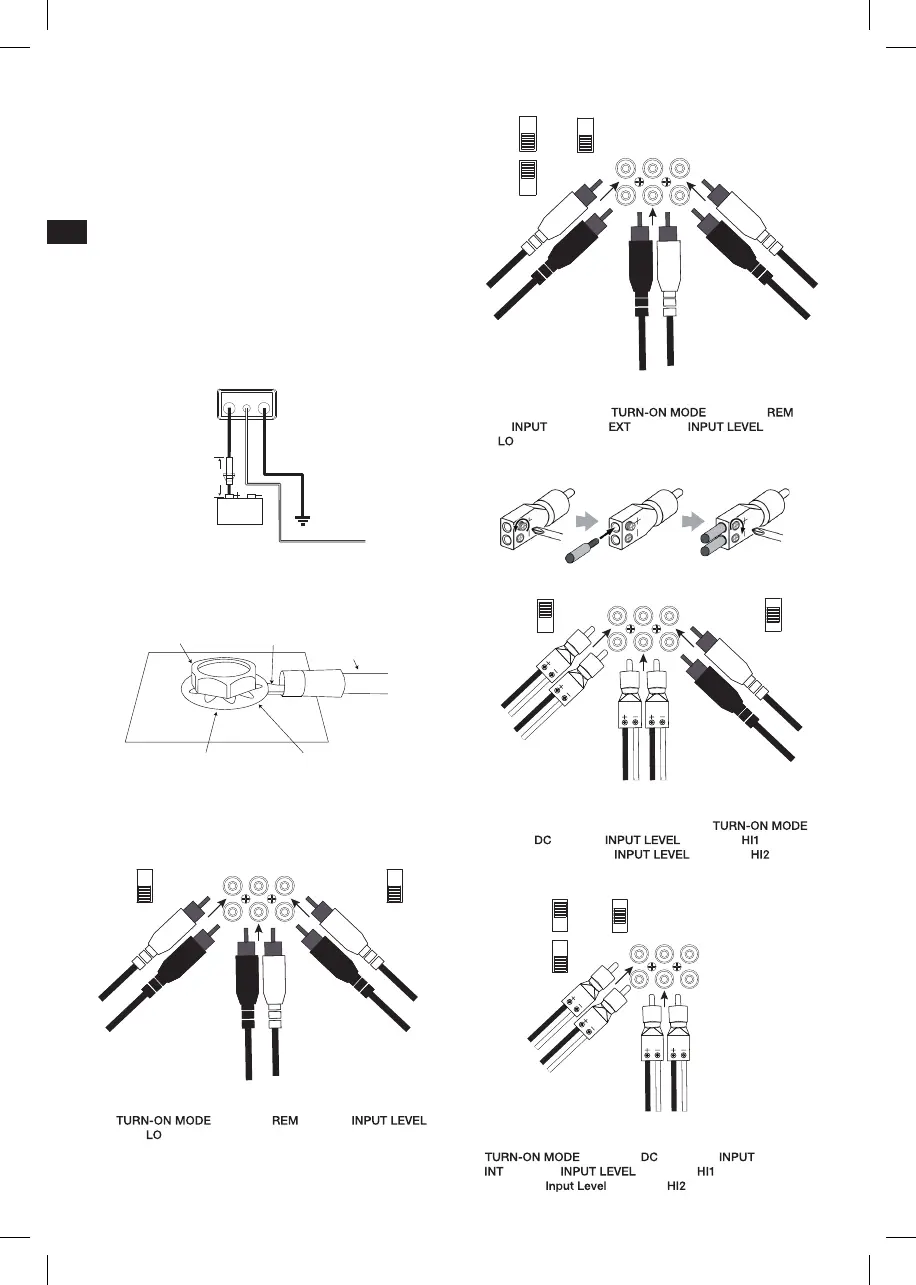

WIRING FOR POWER AND GROUND
At amplifier:
+12V REM GND
Fuse holder, fuse
Chassis ground (–)
Remote turn-on to
aftermarket stereo REM out
(used only with low-level signal inputs)
Battery
18” (46cm)
At ground location:
Ring Connector
Ground Wire
Star Washer
Factory Bolt
Note: Remove any paint
below ring connector
WIRING FOR INPUT SIGNAL
Club A754 low-level signals
L
FRONT REAR PRE OUT
R
From stereo front
low-level outputs
From stereo rear
low-level outputs
To optional
second amplifier
low-level inputs
Note: when using low-level signals and remote turn-on lead, set
the "
" switch to " " and the " "
switch to "
".
Club A5055 low-level signals
L
FRONT REAR SUB
R
From stereo front
low-level outputs
From stereo rear
low-level outputs
From stereo subwoofer
low-level outputs
Note: when using low-level signals and remote turn-on lead with
the Club A5055, set the " " switch to " ", the
SUB " " switch to " ", and the " " switch
to " ".
Club A754 high-level signals
Loosen
Screws
Insert
Wires
Tignten
Screws
L
FRONT REAR PRE OUT
R
Stereo front
speaker wires
Stereo rear
To optional
second amplifier
low-level inputs
Note: when using high-level signals, set the " "
switch to " " and the " " switch to " ". If no
sound plays, change the " " switch to " ".
Club A5055 high-level input signals
L
FRONT REAR SUB
R
Stereo front
speaker wires
Stereo rear
speaker wires
Note: when using high-level signals with the Club A5055, set the
" " switch to " ", the SUB " " switch to
" ", and the " " switch to " ". If no sound plays,
change the " " switch to " ".
