1.2 Front Panel Controls and Indicators
A. Output Volume Control
B. Power Switch
C. Illuminated ring around the output volume control will light green with signal
presence while red indicates clipping, i.e. the signal has reached the
threshold of audible distortion.
D. Tone Controls - Bass and Treble potentiometers on each output channel
E. Illuminated ring around the power switch. Blue indicates that the unit is on
and in normal operating mode. Green indicates that the unit is connected to
the AC mains and has been placed into sleep mode via the RS232 control.

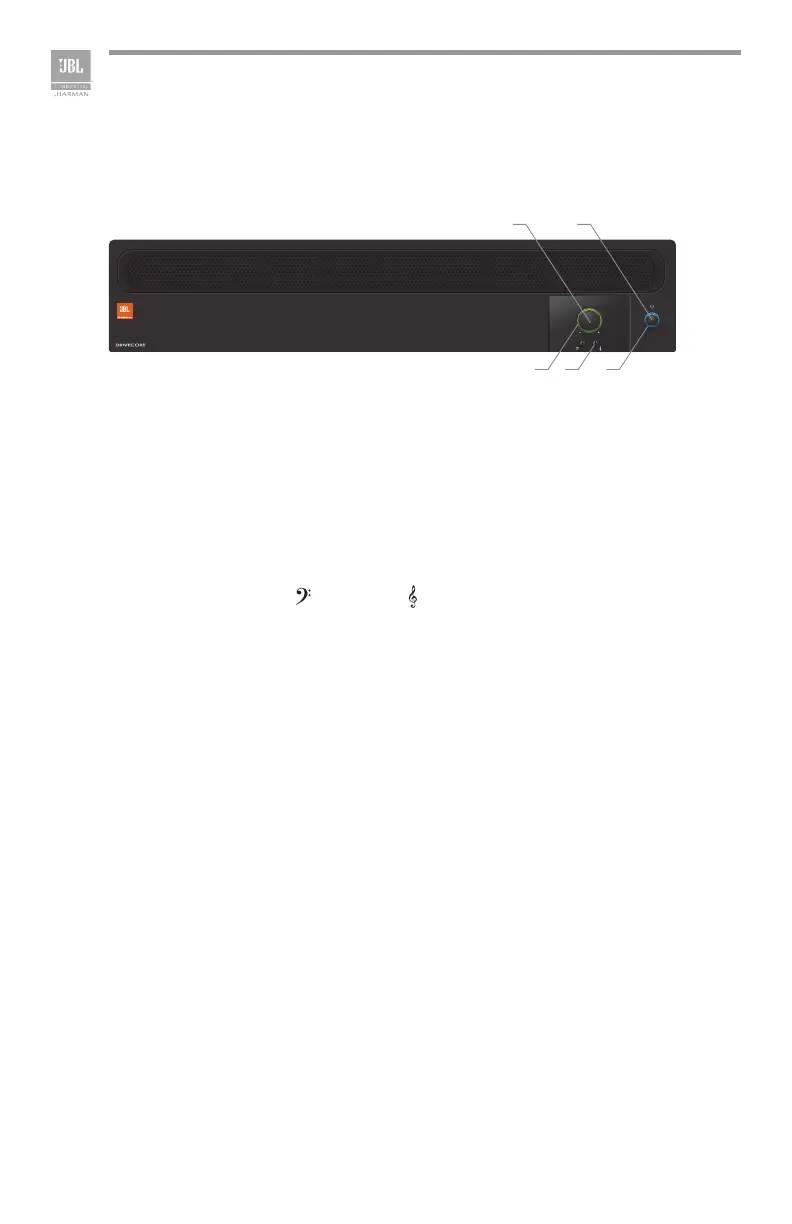

Figure 1.2 Front View of Single Channel Model
CSA 1300Z
A B
E
C
D
