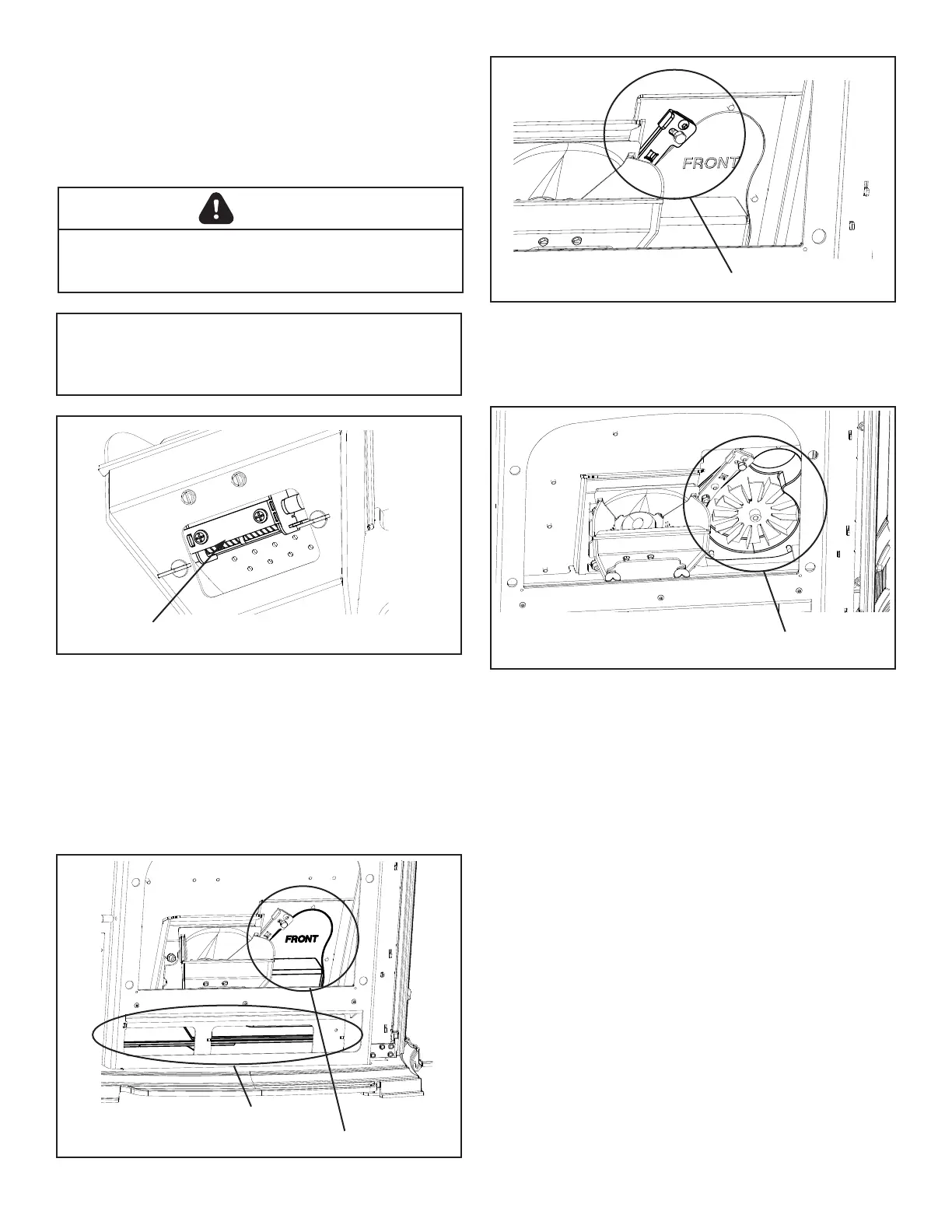

Cleaning Igniter Bracket-
Check cleanliness of the igniter and inner burnpot. If the
igniter has ash buildup it must be removed to ensure proper
ignition.Usetheprovidedbrushtoremoveashbuildupfrom
inandaroundtheigniter.Onceashisloose,vacuumaround
igniter and at the base of burn pot. Figure 2.9.
Note: The hot lead/cold lead connection must always
be pulled to the rear of the feeder body before
operation.
Use caution when cleaning burn pot clean-out
chamber. Do not damage the high temperature igniter
wires.
WARNING
Clean Ash Accumulation
Figure 2.9
Yearly Maintenance: Cleaning the Combustion Fan
Chamber-
RemovethecombustioncoverassemblyFigure2.11.Todo
this, pull up on the combustion cover latch Figure 2.12, and
pull the combustion cover assembly toward you and out.
NOTE: Whenre-installingtheCombustionCoverAssembly
makesureyouinsertthebottomofthecoverrstandthen
slide to the left to engage the bolt, prior to putting it into place.
Figure 2.11
LowerCombustionChamber
Combustion Cover Assembly
Figure 2.12
CombustionCoverLatch
Once combustion cover assembly is removed you now
have access to clean the combustion blower chamber area.
Figure2.13.
UpperCombustionChamber
Figure 2.13
