Hatz 1B20 User Manual

1B20, 1B30, 1B40, 1B50 Transport, assembly and commissioning
HATZ
33Manual

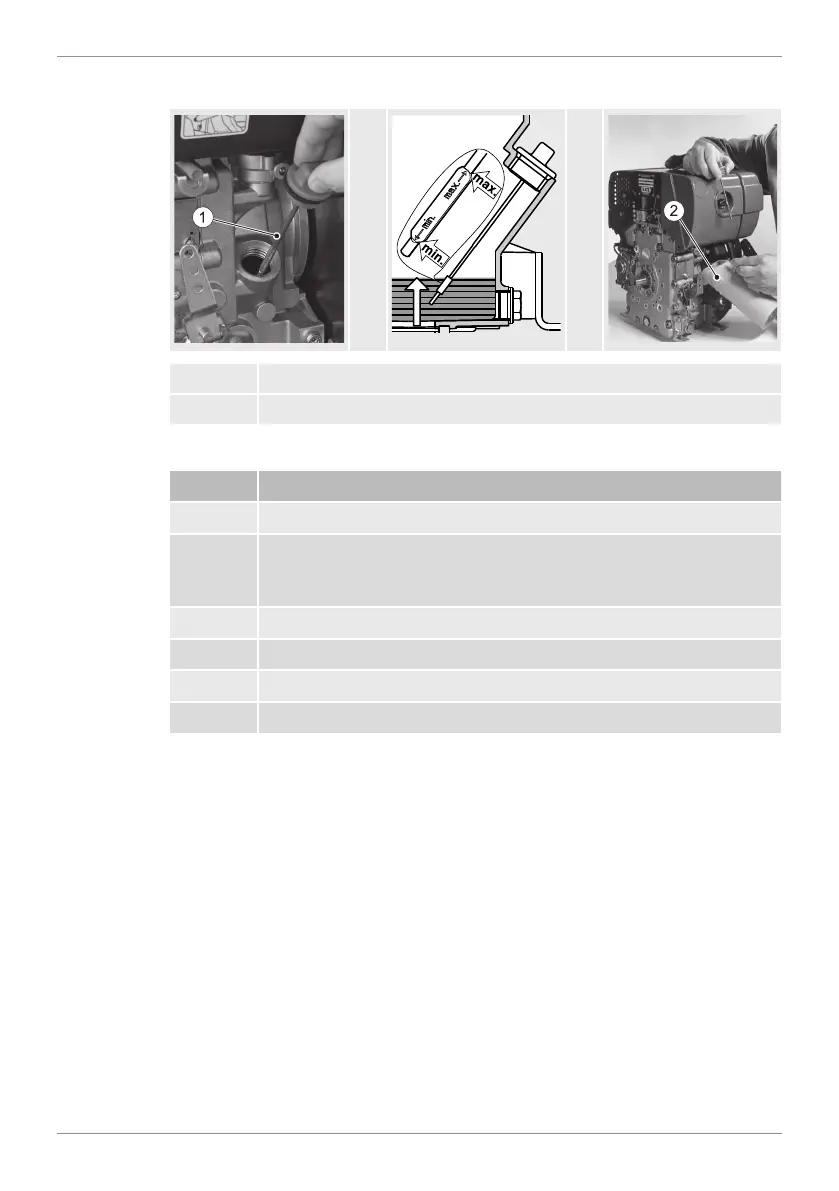

Overview
1 Dipstick
2 Oil refilling container
Procedure
Step Activity
1 Unscrew the dipstick (1) and clean it.
2 Fill engine oil. For the specification and viscosity, see chapter
4.4 Engine oil, page 25. See chapter 4.1 Engine information and
filling quantities, page 22 for the engine oil capacity.
3 Reinsert the dipstick and screw it tight.
4 Unscrew the dipstick and check the oil level.
5 If required, top up engine oil to the max. mark.
6 Reinsert the dipstick and screw it tight.

Hatz 1B20 Specifications

General

Cooling System	Air-cooled
Compression Ratio	20:1
Fuel System	Direct injection
Engine Type	Single-cylinder, four-stroke, diesel engine
Starting System	Recoil starter
