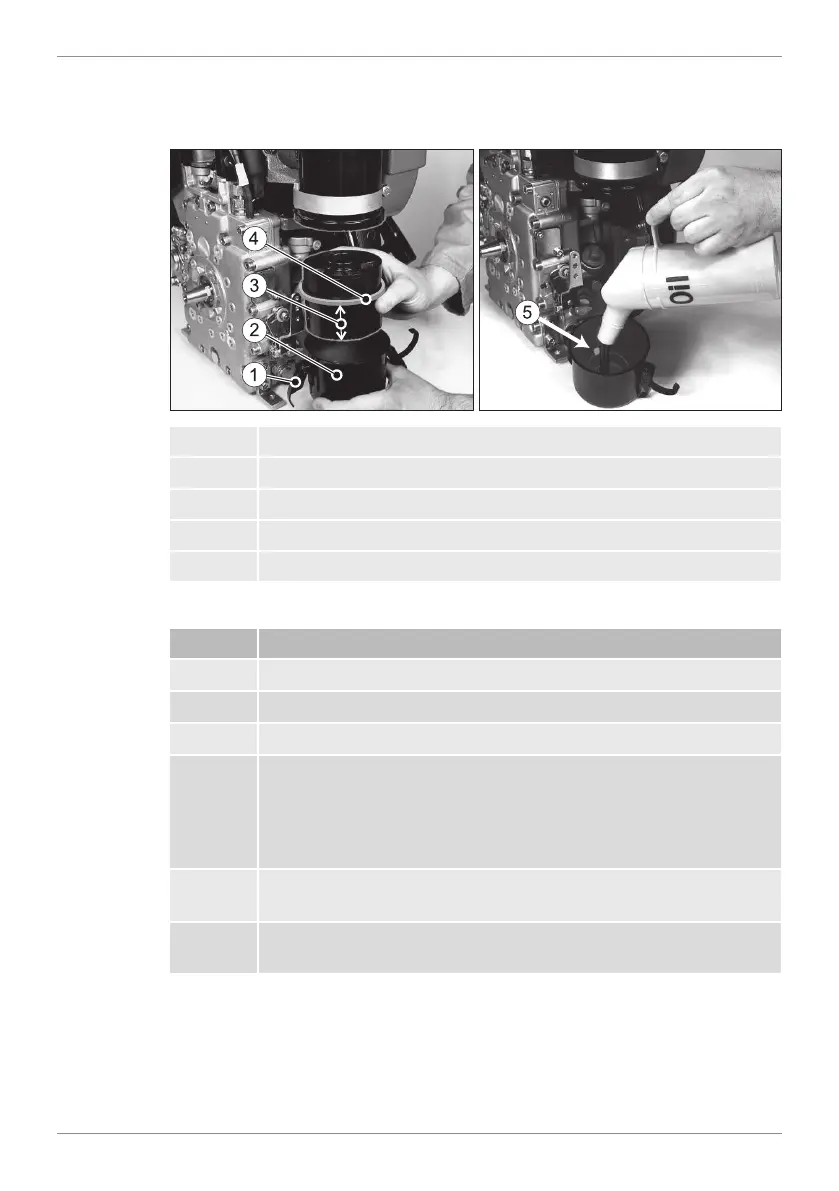

7.6.2 Oil level in the oil bath filter (option)
Overview
1 Clamp fastener (2x opposing)
2 Oil container
3 Filter insert
4 Gasket
5 Level mark
Procedure
Step Activity
1 Release the clamp fasteners (1).
2 Remove the oil container (2).
3 Take the filter insert (3) out of the oil container.
4 Check for dirt.
When the deposited dirt has reached approximately half the
height of the oil filling or the oil has become viscous, clean the
oil bath air filter (see chapter 8.2.7 Maintaining the oil bath filter,
page 70).
4 Otherwise check the oil level and fill with engine oil up to the
level mark (5) as required.
5 Mount the oil container, ensuring that the gasket (4) is properly
positioned and the clamp fasteners (1) are correctly fastened.
