1B20, 1B30, 1B40, 1B50 Operation and use
HATZ
45Manual

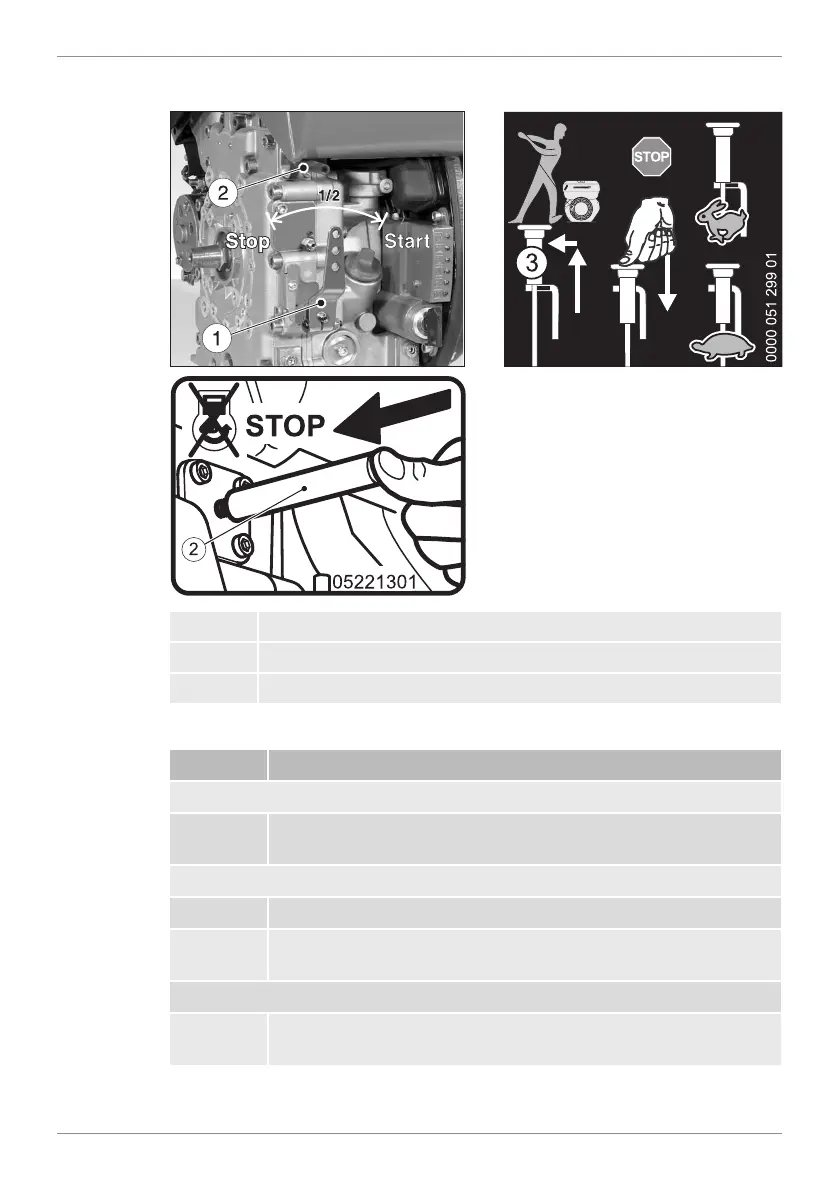

Overview
1 Speed control lever
2 Stop pin (additional equipment)
3 Connecting rod (additional equipment)
Procedure
Step Activity
Speed control lever
1 Push the speed control lever (1) all the way to the "STOP" po-
sition. The engine switches off.
Stop pin
1 Press and hold the stop pin (2) until the engine switches off.
2 Release the stop pin and ensure that it returns to its original
position.
Speed adjustment with connecting rod (additional equipment)
1 Move the speed adjustment with the connecting rod (3) to the
"STOP" position and press it until the engine switches off.

Hatz 1B20 Specifications

General

Cooling System	Air-cooled
Compression Ratio	20:1
Fuel System	Direct injection
Engine Type	Single-cylinder, four-stroke, diesel engine
Starting System	Recoil starter
