Maintenance 1B20, 1B30, 1B40, 1B50
60
HATZ
Manual

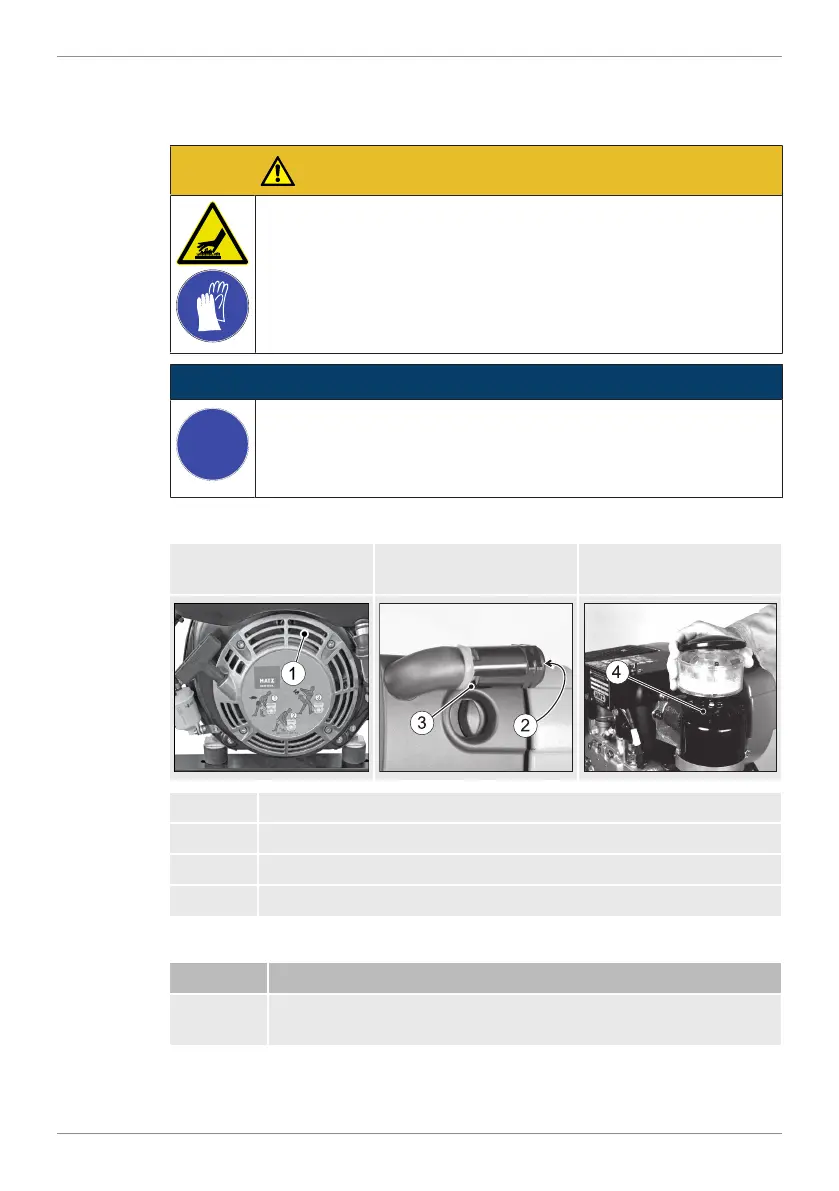

8.2.3 Checking the intake area
Safety notes
CAUTION
Danger of burns.
There is a danger of burns when working on a hot engine.
▪ Let the engine cool.
▪ Wear safety gloves.
NOTICE
i
In case of heavy contamination, shorten the maintenance inter-
vals accordingly (see chapter 8.2.2 Maintenance plan, page 58).
Overview
Standard Model with cyclone
precleaner
Model with oil bath fil-
ter
1 Air intake opening
2 Intake area of cyclone precleaner
3 Dust outlet opening
4 Intake area of oil bath filter
Procedure
Step Activity
1 Check the air intake opening (1) for coarse contamination such
as leaves, heavy dust deposits, etc., and clean if necessary.

Hatz 1B20 Specifications

General

Cooling System	Air-cooled
Compression Ratio	20:1
Fuel System	Direct injection
Engine Type	Single-cylinder, four-stroke, diesel engine
Starting System	Recoil starter
