Hatz 1B30V User Manual

Note:
In the case of engines with automatic electrical
shutdown system (see next chapter), first
actuate the starter switch from position 0 to
position I, then perform a recoil start within the
following 12 seconds. If the engine does not run
after 12 seconds, this means that the electrical
system blocks the fuel supply to the injection
pump.
In this case, the engine cannot be started.
As a solution, turn the starter key back to posi-
tion 0, then turn it to position I again. Now, start
the engine within the following 12 seconds.

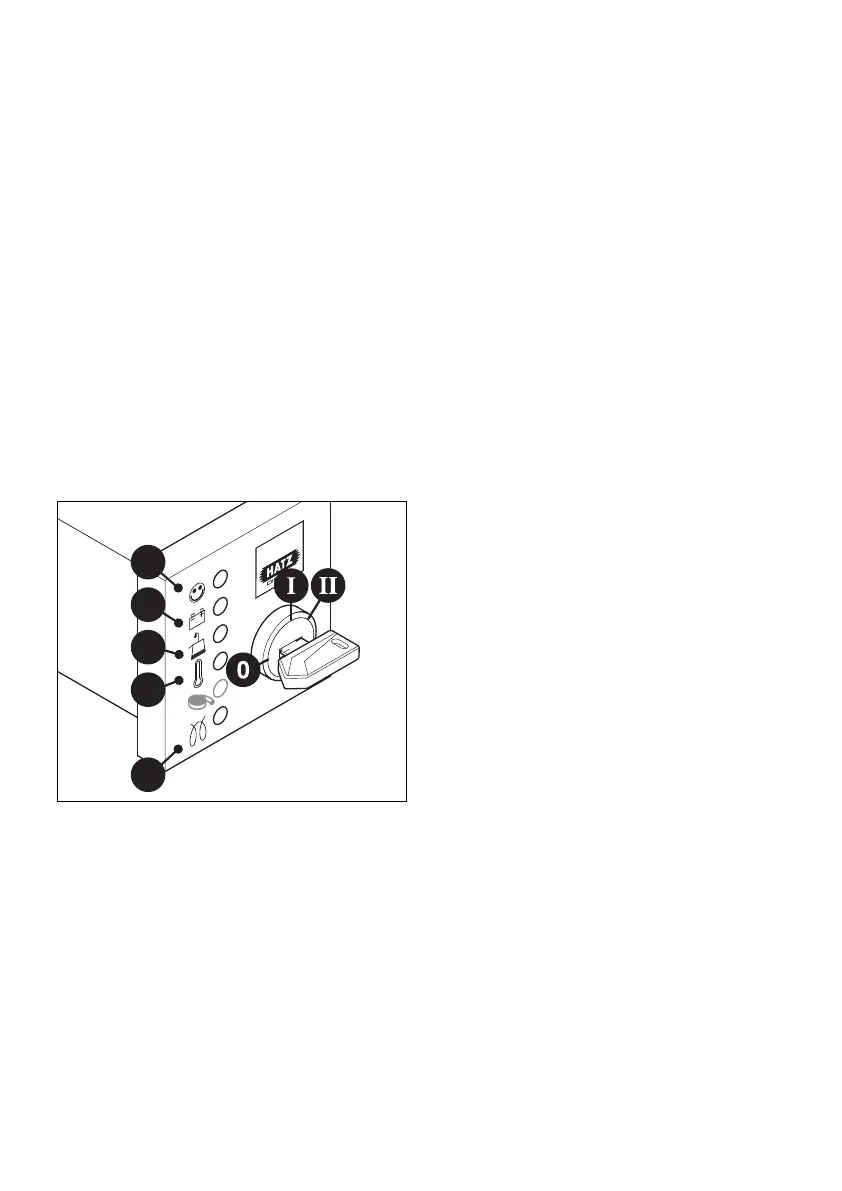

4.2.4. Electric starter
– For starting preparations, see Chapter 4.2.1.
14
– Insert the key to its stop and turn it to
position I.
– Battery charge telltale „2“ and oil pressure
warning „3“ must light up.
– Turn start key to position II.
1
2
3
4
5
– As soon as the engine runs, release the start
key. It must return to position I by itself and
remain in this position during operation.
The battery charge telltale and oil pressure
warning must go out immediately after start-
ing. Indicator light „1“ is on when the engine
is in operation.
– The engine temperature display „4“ (additional
equipment) lights up if the temperature at the
cylinder head becomes too high.
Switch off the engine and trace and elimi-
nate the cause of the problem, chap. 6.
– Always turn the start key back to position 0
before re-starting the engine. The repeat lock
in the ignition lock prevents the starter motor
from engaging and possibly being damaged
while the engine is still running.
Preheating device with automatic heating
timer (additional equipment)
The preheating light „5“ lights up additionally at
temperatures below 0° Celsius (Fig. 14).
– After the light has gone out, start the engine
without delay.
