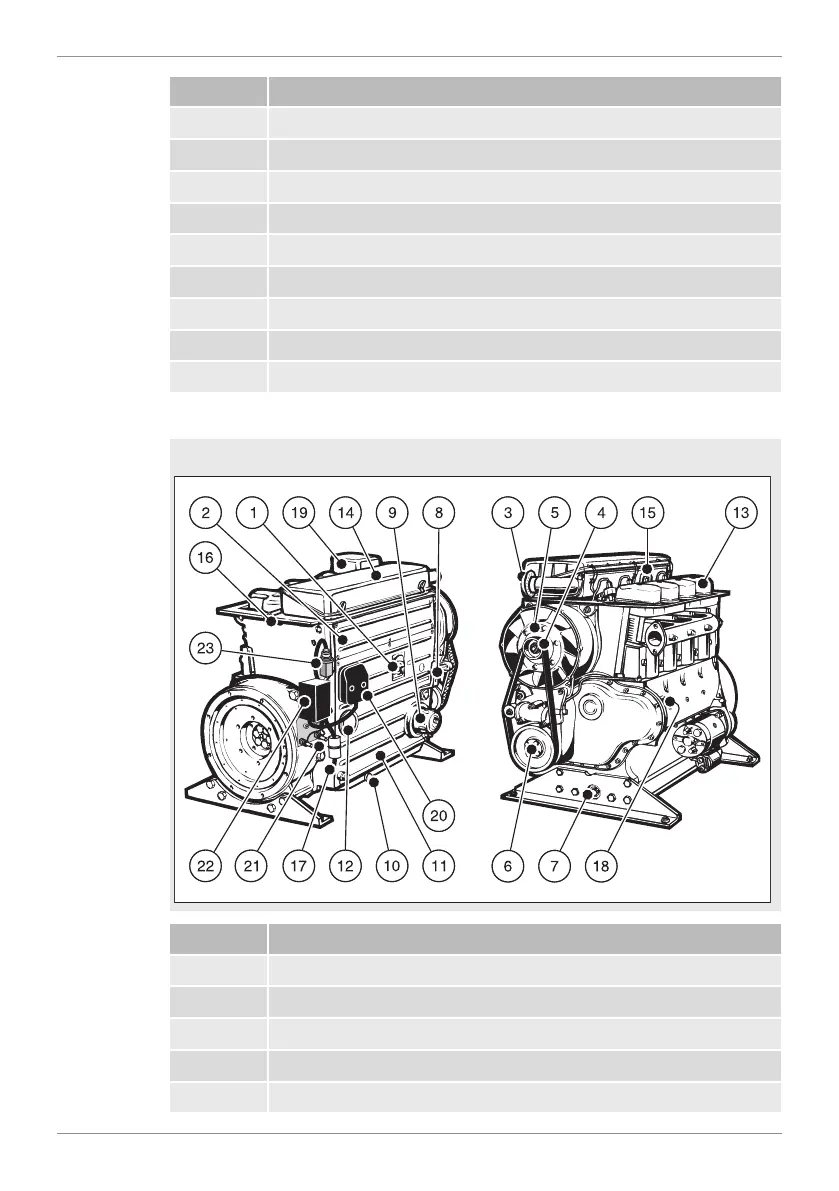

Hatz 2L41C User Manual

2L41C, 2M41, 2M41Z Engine design
HATZ
27Operator’s Manual
Pos. Designation
15 Capsule intake shaft
16 Intake opening for combustion air
17 Fuel feed line with fuel prefilter
18 Fuel return line
19 Cover plate on exhaust side
20 Central connector for electrical equipment
21 Battery connections
22 Powerbox
23 Electrical maintenance switch for air filter
Engine 2M41, 2M41Z
Standard model
Pos. Designation
1 Oil filling opening and dipstick
2 Side trim panel
3 Intake opening for combustion air
4 Cooling fan belt
5 Cooling fan with installed three phase alternator
