8.2.11 Maintaining the dry air filter
NOTICE
▪ Immediately clean the filter cartridge if the maintenance dis-
play appears at maximum speed.
▪ Renew the filter cartridge after a use period of 500 operating
hours.

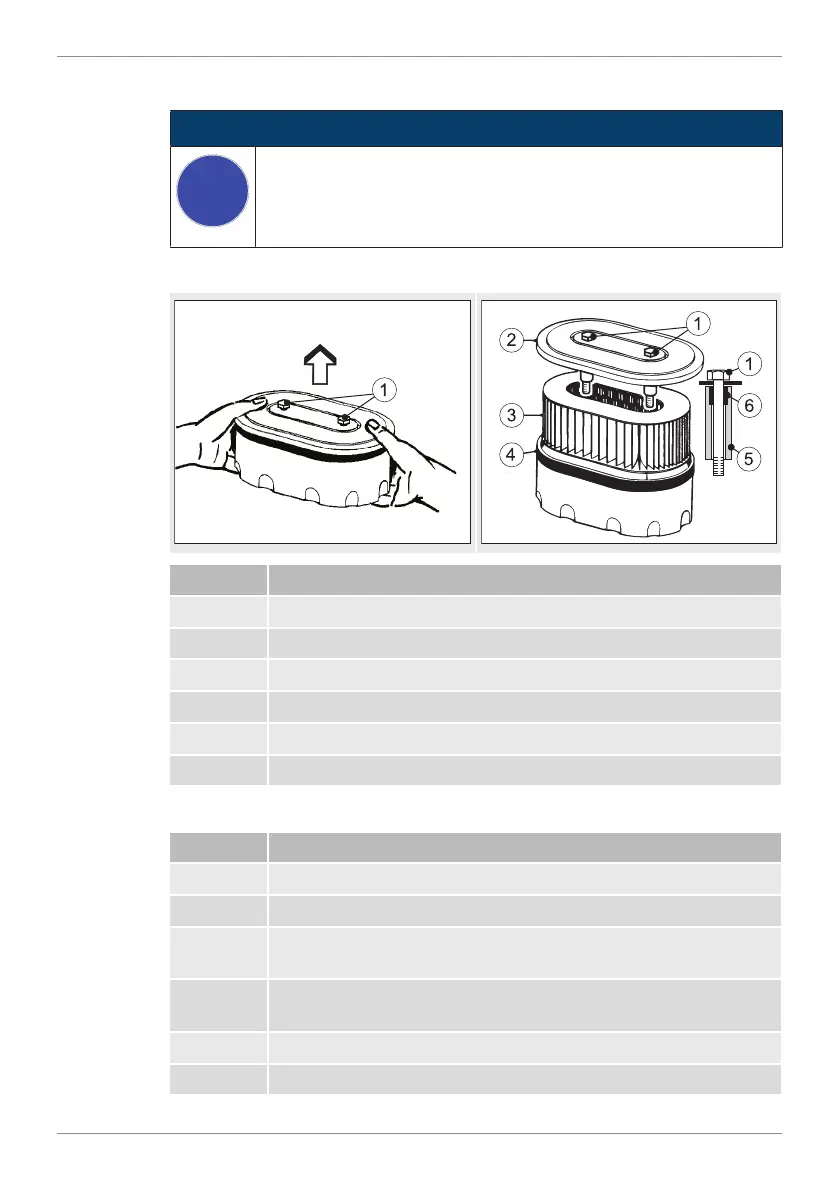

Overview of engine 2L41C
Pos. Designation
1 Screw
2 Cover
3 Filter cartridge
4 Air filter housing
5 Spacer
6 Bushing
Remove the air filter cartridge - engine 2L41C
Step Activity
1 Remove the capsule hood.
2 Remove adherent dirt in the area of the air filter housing (4).
3 Only loosen the screws (1) to the point where you can lift off
the complete air filter housing (4).
4 Cover the opening in the intake pipe to prevent ingress of dirt
and other foreign bodies.
6 Open the air filter housing (4).
7 Take out the filter cartridge (3).
To Next Page
