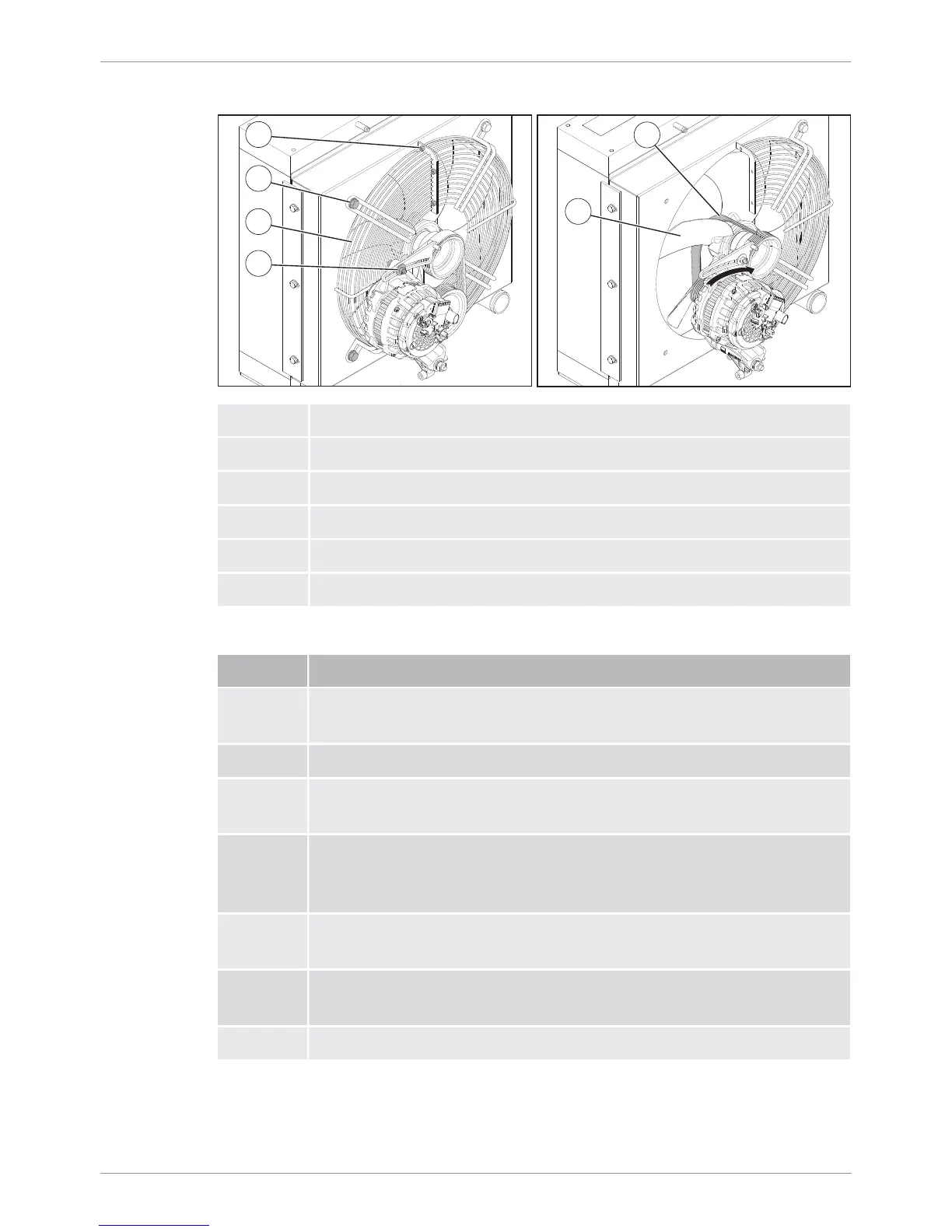

Overview
1
4
5
6
2
3
1 Connecting screws, protective guard halves (top and bottom)
2 Fixing screw, protective guard (top and bottom)
3 Protective guard (left half)
4 Alternator mounting bolt
5 Poly v belt
6 Fan blade
Procedure
Step Activity
1 Disassemble the left half of the protective guard (3) by unscrew-
ing the screws (1) and (2) (at the top and bottom).
2 Loosen the alternator mounting bolt (4) one or two revolutions.
3 Manually press the alternator towards the water pump, slide the
loose poly v belt from the belt wheels.
4 Carefully lift the poly v belt over a fan blade. Turn the fan further
in the counterclockwise direction and lift the belt over the re-
maining fan blades until it is completely free.
5 Feed a new poly v belt over the fan blade in the same way from
the radiator side.
6 Lay the poly v belt over the belt wheels and tension (see 8.2.7
Tensioning the poly v belt, page 68).
7 Reassemble the protective guard.
Maintenance 4H50TIC
70 Operator's Manual
HATZ

Hatz 4H50TIC Specifications

General

Compression Ratio	17.5:1
Cooling System	Liquid-cooled
Engine Type	4-cylinder, turbocharged, intercooled diesel engine
Fuel System	Direct injection
Emissions Standard	EU Stage V
