CAUTION
Danger of injury
Repeated contact with diesel fuel can cause chapped and
cracked skin.
▪ Wear safety gloves.
CAUTION
Danger of environmental damage from spilled fuel.
When the filter is removed, a small amount of fuel is drained as
well.
▪ Collect emerging fuel and dispose of it in an environmentally
compatible manner.
CAUTION
Dirt particles can damage the injection system.
▪ Maintain clean conditions to ensure that dirt does not enter
the fuel line.
▪ Only install fuel filters dry and do not prefill in order to avoid
contamination.

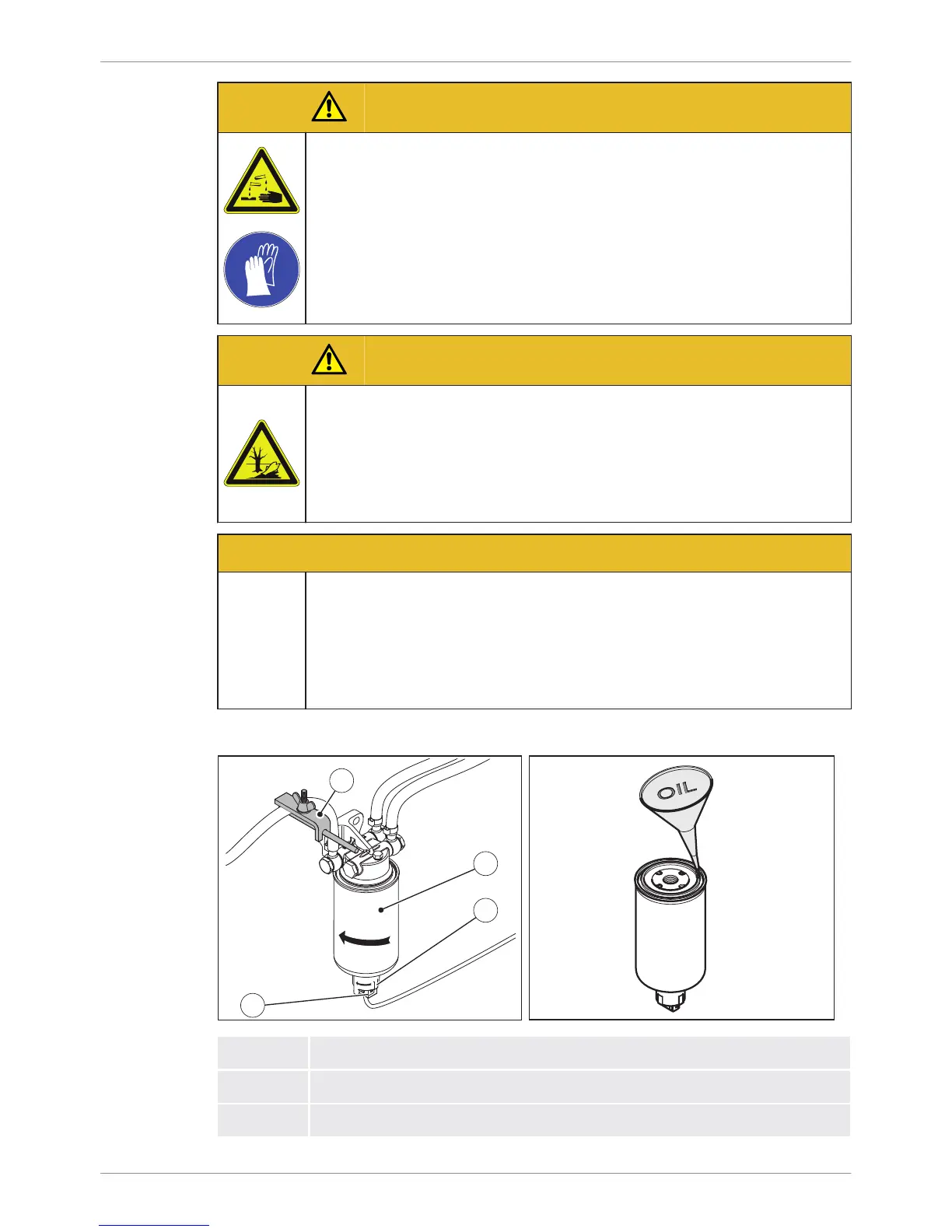

Overview
1
4
2
3
1 Hose clip (fuel feed line)
2 Fuel prefilter
3 Drain plug with integrated water level sensor
4H50TIC Maintenance
HATZ
Operator's Manual 75

Hatz 4H50TIC Specifications

General

Compression Ratio	17.5:1
Cooling System	Liquid-cooled
Engine Type	4-cylinder, turbocharged, intercooled diesel engine
Fuel System	Direct injection
Emissions Standard	EU Stage V
