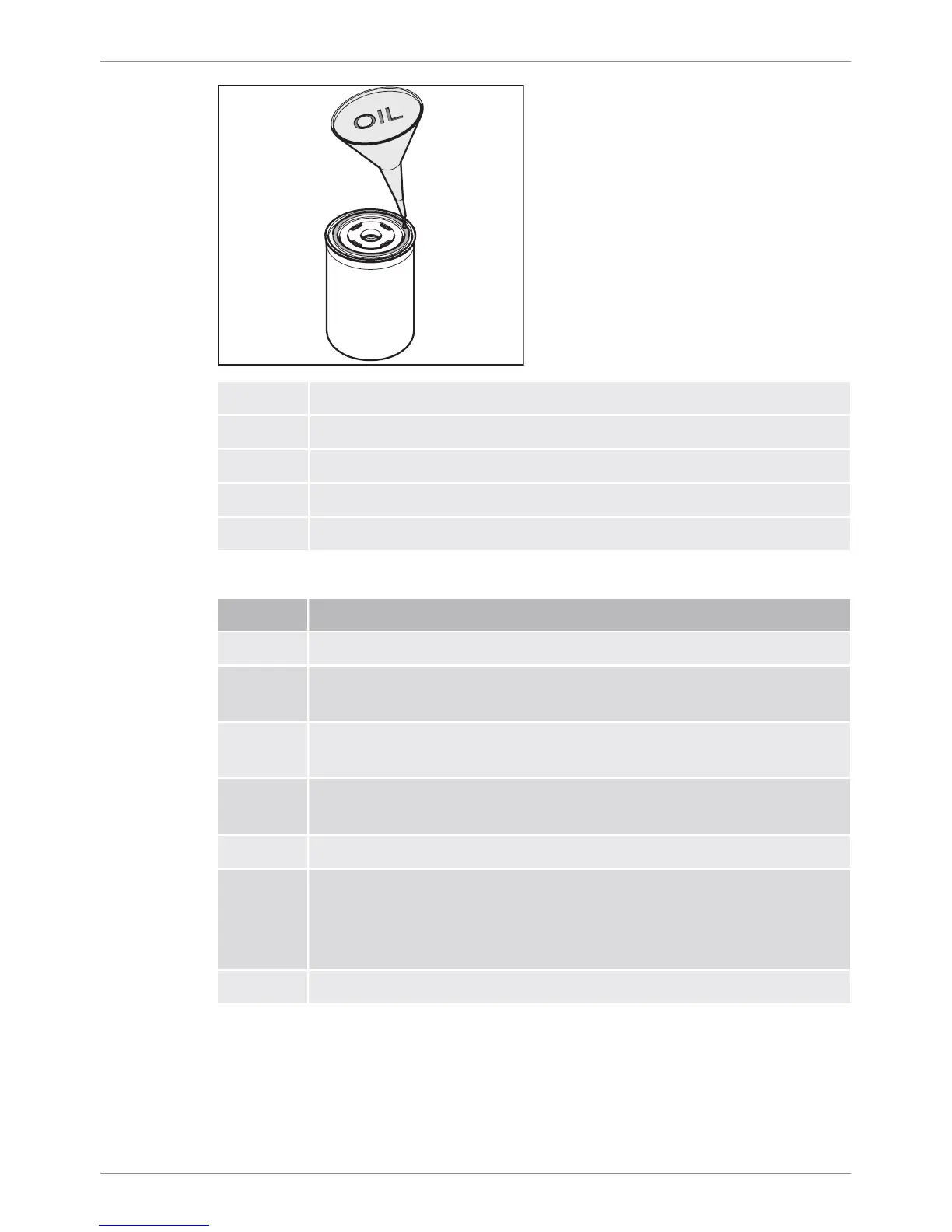

Hatz 4H50TIC User Manual

1 Bleed screw (not open!)
2 Fuel feed line
3 Fuel fine filter
4 Hose clip
5 Strap wrench
Procedure
Step Activity
1 Block the fuel feed line (2) using the hose clip (4).
2 Place a suitable container under the filter to collect emerging
fuel.
3 Unscrew the fuel fine filter (3) and according to local environ-
mental regulations.
4 Lightly oil the gasket of the new fuel fine filter, fit the filter and
tighten it by hand.
5 Release the fuel feed line.
6 Start the engine and perform a test run.
NOTE: When starting the engine, adhere to the procedure under
"7.4 Starting the engine for the first time/after a filter change,
page 42".
7 After the test run, check the fuel fine filter for leaks.
4H50TIC Maintenance
HATZ
Operator's Manual 79

Hatz 4H50TIC Specifications

General

Compression Ratio	17.5:1
Cooling System	Liquid-cooled
Engine Type	4-cylinder, turbocharged, intercooled diesel engine
Fuel System	Direct injection
Emissions Standard	EU Stage V
