2.10. Installing the support for heating elements
Note that heating element support should always be used in order to
prevent the heating elements from being bent into each other or out sideways.

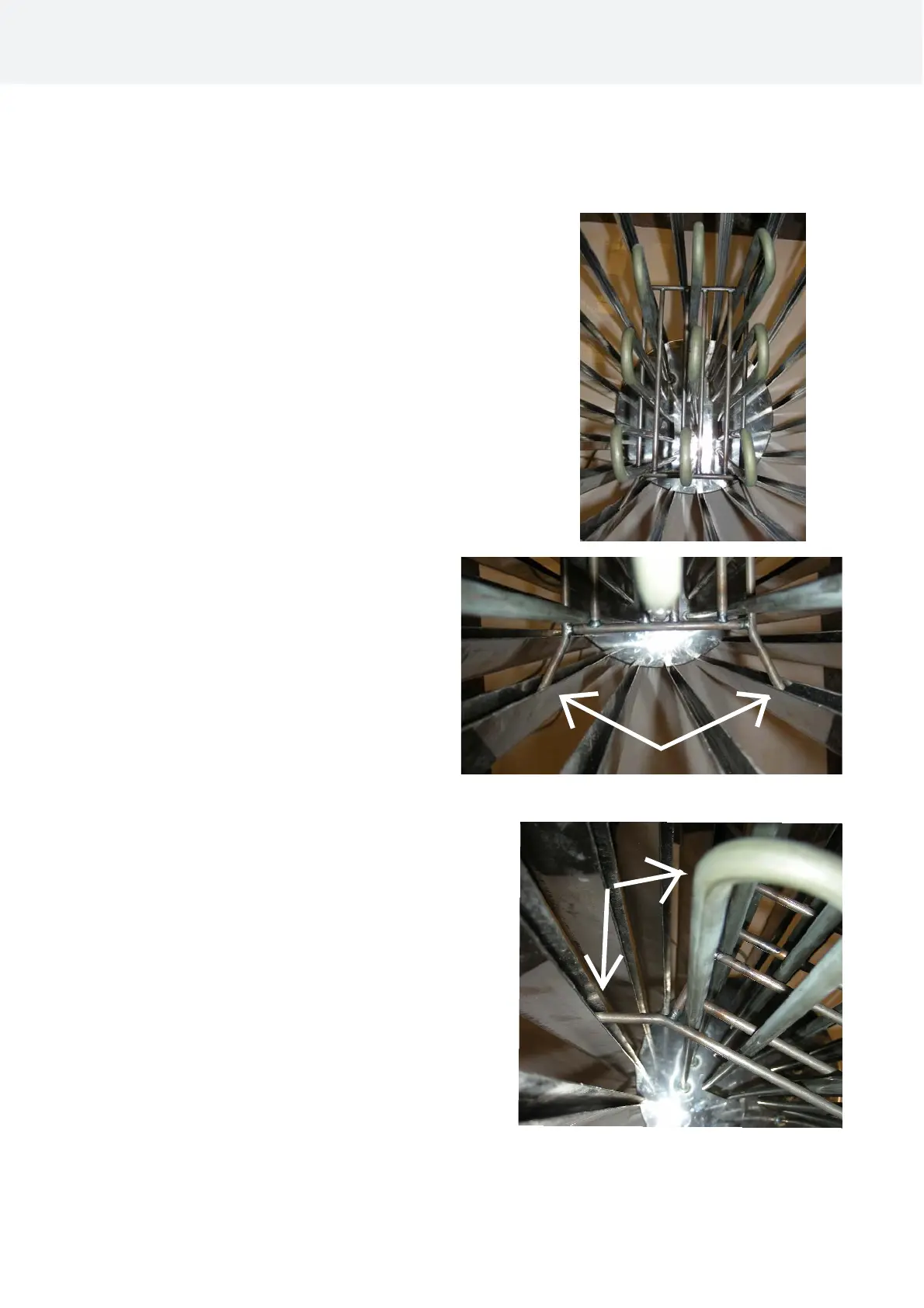

Installation of the heating element support:
Pile in stones up to halfway of the provided space. Position the
support so that the heating elements stay between the openings.
Tilt the support and press the pivots at each end of the support to
the grooves in the inside of the heater's vertical beams, one end at a
time. The support for heating elements should stay levelled.
Push the pivots at one end of the support to the
grooves in the vertical beams.
Press the pivots at the other end of the support to the
grooves in the heater's vertical beams.
Subsequently, pile in stones up to the upper edge so
that they cover the heating elements.
Image 3
Installation and User Manual ROCHER DET
8
