7. (Optional) Install the waterproof jacket. Refer to 2.4 Waterproof
Measures for details.
Wall Mounting with Junction Box
Before you start:
 Both wall mounting and ceiling mounting are suitable for the
bullet camera. Wall mounting will be taken as an example in this
section. And you can take steps of wall mounting as a reference
for ceiling mounting.
 You need to purchase a junction box first.
Steps:
1. Paste the drill template (supplied) to the desired mounting
position on the wall.
2. Drill the screw holes and the cable hole (optional) in the wall
according to the drill template.
Note:
Drill the cable hole, if adopting ceiling outlet to route the cable.
Screw
Hole
Cable
Hole

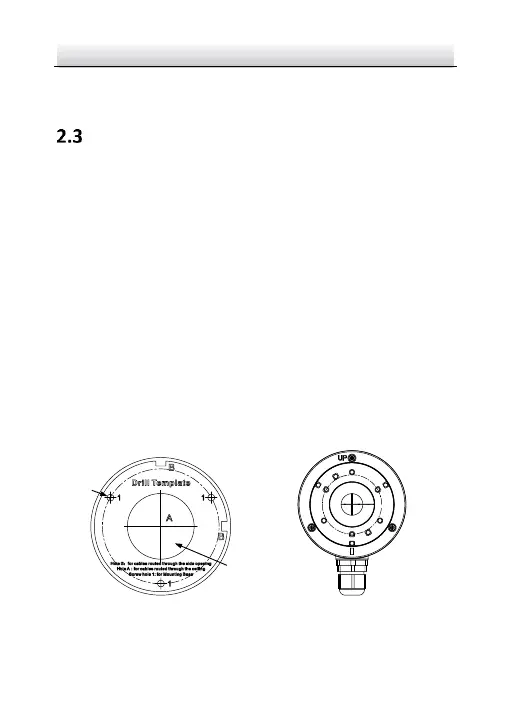

Figure 2-5 The Drill Template

HIKVISION DS-2CD1023G0-IU Specifications

General

Type	IP security camera
Placement supported	-
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Bluetooth	No
Number of users	32 user(s)
Networking standards	IEEE 802.3af
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
Ethernet LAN (RJ-45) ports	1
Form factor	Bullet
Mounting type	Ceiling/wall
Product color	Black, White
Housing material	Metal, Plastic
International Protection (IP) code	IP66
LED type	IR
Infra-red wavelength	850 nm
Night vision distance	30 m
Pan range	0 - 360 °
Tilt angle range	0 - 180 °
Angle of rotation	360 °
Camera shutter speed	1 - 1/100000 s
Minimum illumination	0.028 lx
Sensor type	CMOS
Optical sensor size	1/2.7 \
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	3.6 W
Power consumption (Power over Ethernet (PoE))	4 W
Fixed focal length	2.8 mm
Maximum aperture number	2
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95 %
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Video compression formats	H.264, H.265, M-JPEG
Noise reduction technology	3D noise reduction

Weight and Dimensions

Depth	66.2 mm
Width	67.8 mm
Height	177.6 mm
Weight	270 g
Package depth	121 mm
Package width	216 mm
Package height	118 mm
Package weight	470 g
