HIKVISION DS-2CD2732F-I Installation Manual

Installation Manual of Network Camera
69
3.8.3 Camera Description of Type B Dome Camera
5
6
8
1
2
3
4
9
7

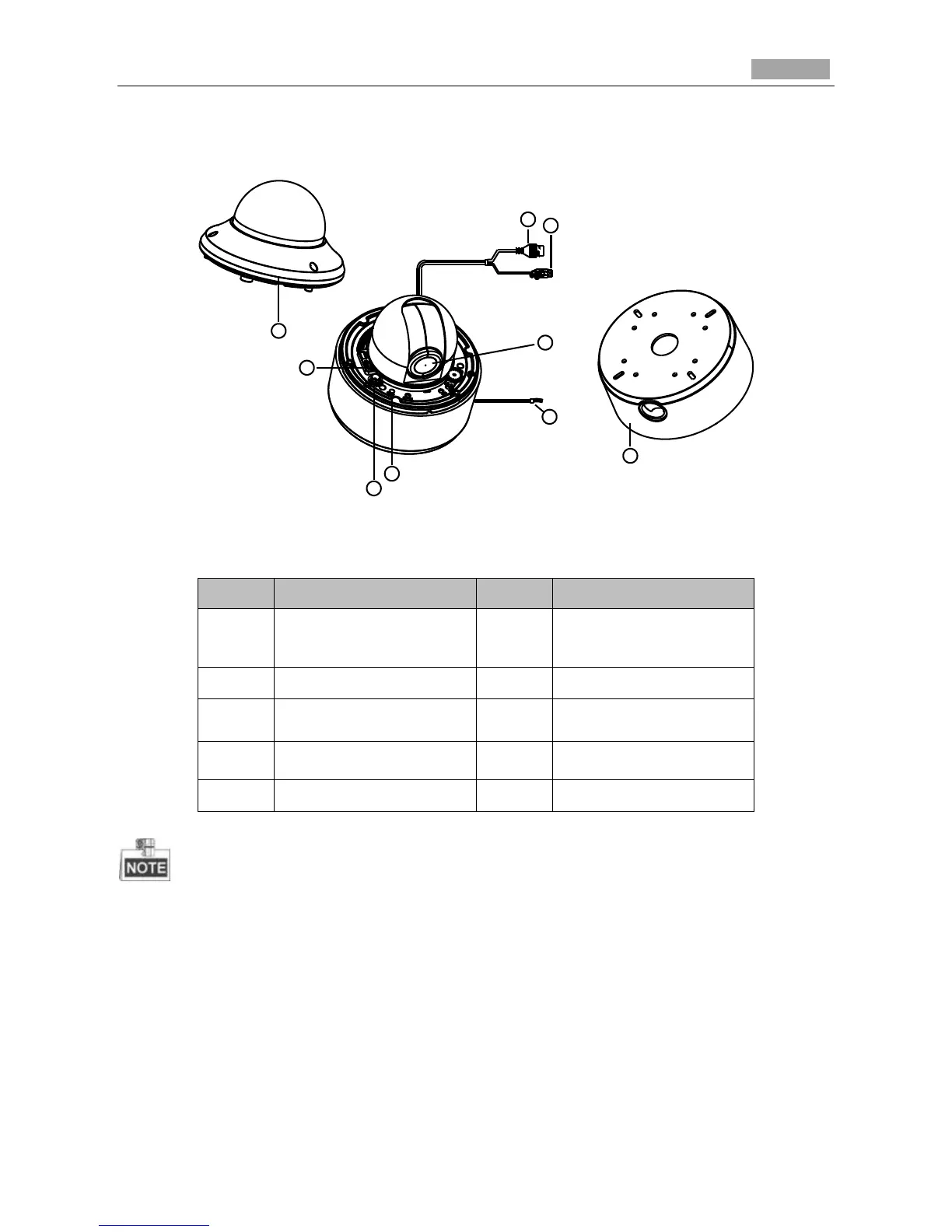

Figure 3-98 Overview of Type B Dome Camera
Table 3-10 Description of Type B Dome Camera
No.
Description
No.
Description
1
Bubble
6
10/100M Self-adaptive
Ethernet Interface
2
SD Card Slot
7
Lens
3
Video Out Interface
8
Audio/Alarm Cables
4
Reset
9
Mounting Base
5
Power Cable
10
● The most distinguish difference between type A and type B dome camera is type B dome camera
has an internal PT (Pan and Tilt) unit, and you can adjust the pan and tilt angle of the camera from
the client software or via web browser.
● Press RESET about 10s when the camera is powering on or rebooting to restore the default
settings, including the user name, password, IP address, port No., etc.
3.8.4 Installation of Type B Dome Camera
Steps:
Lo-Call 1890 866 900
www.cctvireland.ie
shop@cctvireland.ie

HIKVISION DS-2CD2732F-I Specifications

General

Type	IP security camera
PTZ control	Yes
Placement supported	Outdoor
Connectivity technology	Wired
Form factor	Dome
Mounting type	Ceiling
Product color	White
Protection features	Vandal proof
International Protection (IP) code	IP66
Total megapixels	3 MP
Maximum resolution	2048 x 1536 pixels
Supported video modes	1080p, 720p
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	1280 x 960, 1280 x 720 (HD 720)
Pan range	0 - 360 °
Tilt angle range	0 - 75 °
Angle of rotation	360 °
Camera shutter speed	1/30 - 1/100000 s
Minimum illumination	0.095 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Optical zoom	- x
Zoom capability	-
Focal length range	- mm
Password protection type	User
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	64 GB
LED type	IR
Night vision distance	20 m
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, ICMP, IGMP, SNMP, FTP, 802.1X, QoS, HTTPS
Ethernet LAN (RJ-45) ports	1
DC output voltage	+12V
Power source type	PoE
Power consumption (max)	5.5 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Height	99.9 mm
Weight	1000 g
Diameter	140 mm
