HIKVISION DS-2CD4012F-A Installation Manual

Installation Manual of Network Camera
19
Chapter 3 Dome Camera Installation
3.1 Type I Dome Camera
3.1.1 Camera Description

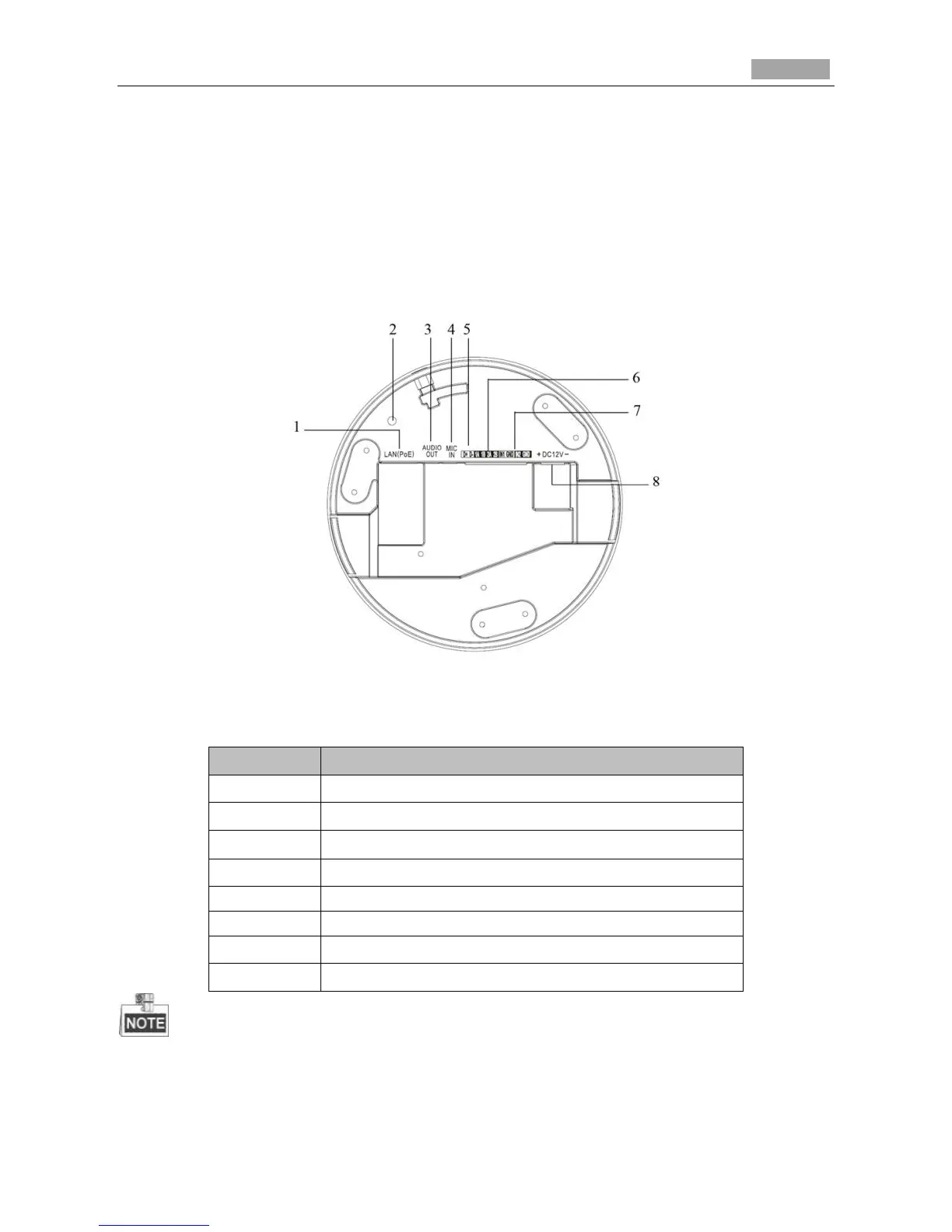

Figure 3-1 Overview
Table 3-1 Description
No.
Description
1
10M/100M self-adaptive Ethernet interface
2
Reset Button
3
AUDIO OUT: Audio output interface
4
MIC IN: Audio input interface
5
D+, D-: RS-485 interface
6
1A, 1B, 2A, 2B: Alarm output interface
7
IN1, GND, IN2, GND: Alarm input interface
8
Power Supply Interface
Press RESET about 10s when the camera is powering on or rebooting to restore the default settings,
including the user name, password, IP address, port No., etc.
