2 Installation
Before You Start
•
Make sure that the device in the package is in good
condition and all assembly parts are included.
•
Make sure that all related equipment is powered off
during the installation.
•
Check the products’ specifications for the installation
environment.
•
Check whether the power supply matches your power
output to avoid damage.
•
Make sure the wall is strong enough to withstand
three times the weight of the camera and the mount.
•
If the wall is concrete, insert expansion bolts before
installing the camera. If the wall is wood, use self-
tapping screws to secure the camera.
•
If the product does not function properly, contact
your dealer or the nearest service center. Do NOT
disassemble the camera for repair or maintenance
yourself.
2.1 Installation of Type I Camera
2.1.1 Ceiling/Wall Mounting without Junction Box
Before You Start
Ceiling mounting and wall mounting are similar. The
following uses ceiling mounting as an example.
Paste the drill template (supplied) where you want to
install the camera.
Drill screw holes and the cable hole (optional) on the
ceiling according to the drill template.

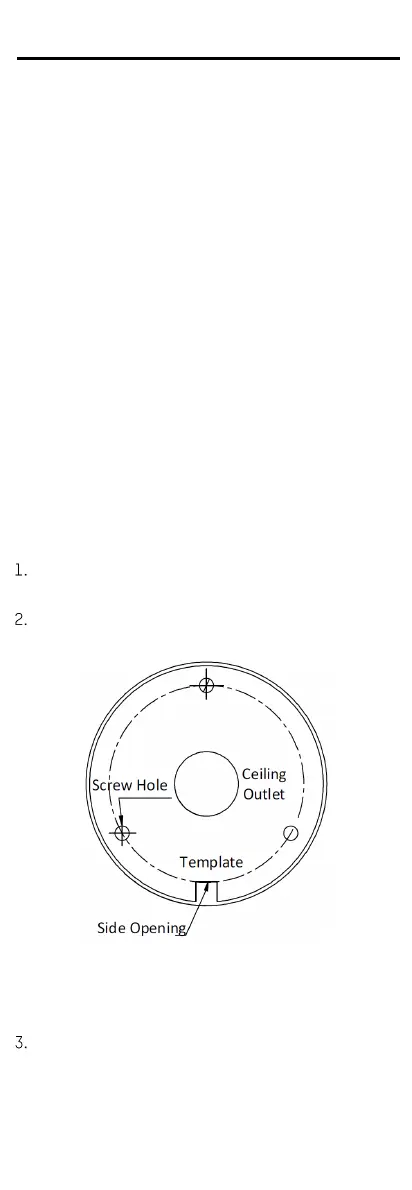

Figure 4, Drill Template
NOTE: Drill a cable hole when using the ceiling outlet
to route the cable.
Route the cables through the cable hole or the side
opening.
