UM ColorVu DS-2CExxHFT-Fxx 122919NA 9
Take apart the junction box, and align the camera
screw holes with those on the junction box cover.
Attach the camera to the junction box cover with
supplied screws.

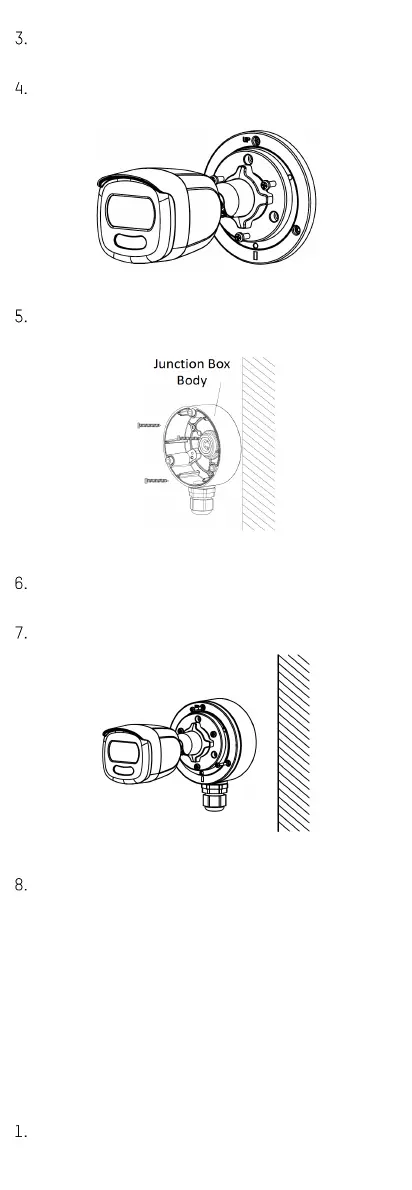

Figure 8, Attach Camera to Junction Box Cover
Secure the junction box body on the ceiling/wall with
supplied screws.
Figure 9, Secure Junction Box on Wall/Ceiling
Route the cables through the junction box’s bottom
cable hole or side cable hole.
Attach the junction box cover to its body.
Figure 10, Re-attach Junction Box Cover to its Body
Repeat steps 5 and 6 of
2.1.1 Ceiling/Wall Mounting
without Junction Box
to finish the installation.
2.2 Installation of Type II Camera
2.2.1 Ceiling/Wall Mounting without Junction Box
Before You Start
Ceiling mounting and wall mounting are similar. The
following uses ceiling mounting as an example.
NOTE: Installation with a junction box refers to
2.1.2
Ceiling/Wall Mounting with Junction Box.
Paste the drill template (supplied) where you want to
install the camera.
To Next Page
