DS-2TD2xxx-xx/xx Thermal and Optical Bi-Spectrum Network Bullet Camera Quick Start Guide
QSG DS-2TD2xxx-xx/xx 071720NA 13

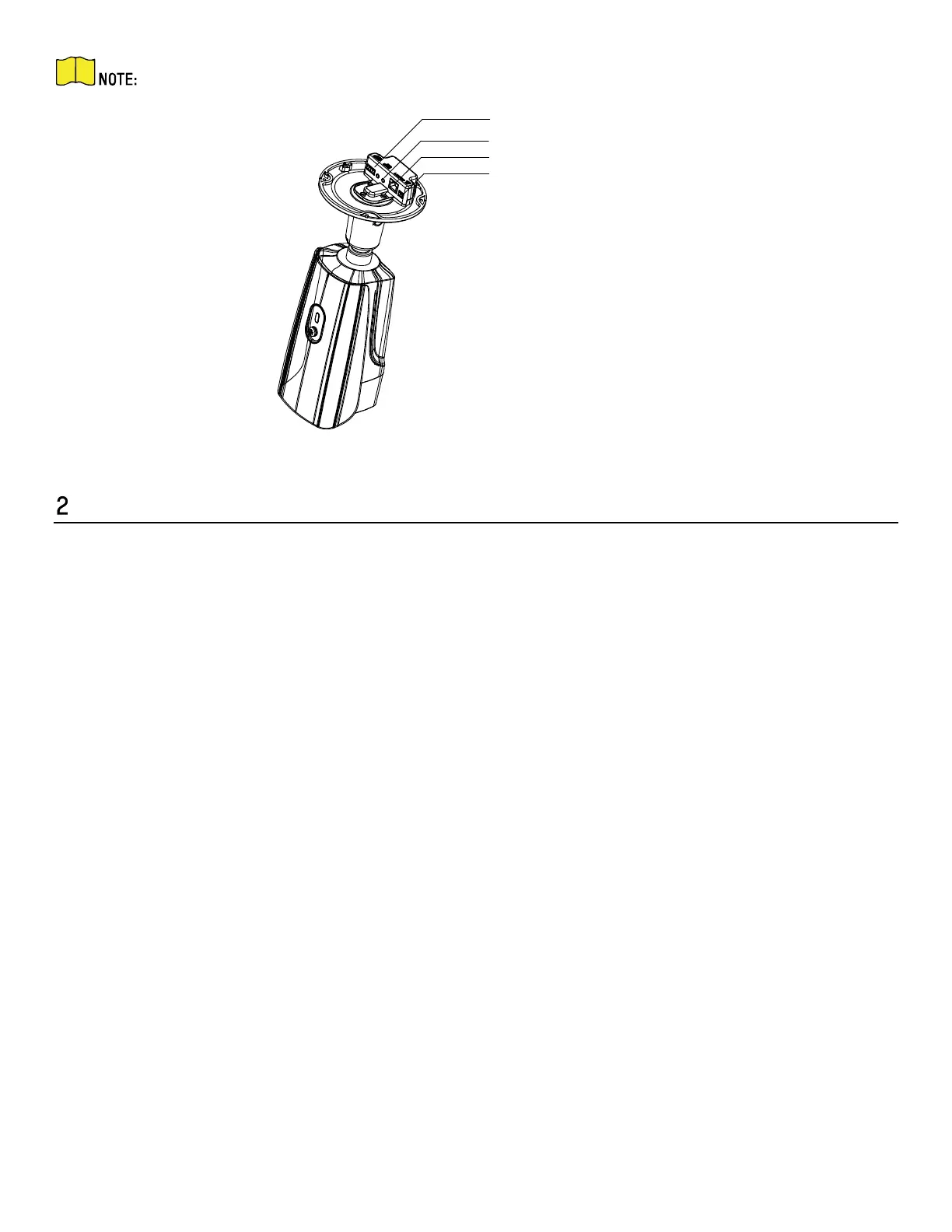

The junction box differs by camera model.
Alarm Interface
Audio Input& Output Interface
Network Interface
Power Interface
Figure 10, Interface Description
Installation
Before You Start
•
Make sure the device in the package is in good condition and all the assembly parts are included.
•
The standard power supply is 12 VDC, 24 VAC, or PoE (802.3af). Make sure your power supply matches
your camera.
•
Make sure all the related devices are powered off during the installation.
•
Check the specification of the products for the installation environment.
•
Make sure that the wall is strong enough to withstand four times the weight of the camera and the
bracket.
For cameras that support IR, pay attention to the following precautions to prevent IR reflection:
•
Dust or grease on the camera cover will cause IR reflection. DO NOT remove the camera cover film until
the installation is finished. If there is dust or grease on the camera cover, clean the camera cover with
a clean soft cloth and isopropyl alcohol.
•
Make sure that there is no reflective surface too close to the camera lens. The IR light from the camera
may reflect back into the lens causing reflection.
•
DO NOT drag the camera with its waterproof cables, or the waterproof performance will be affected.
