HIKVISION DS-7104NI-Q1/M User Manual

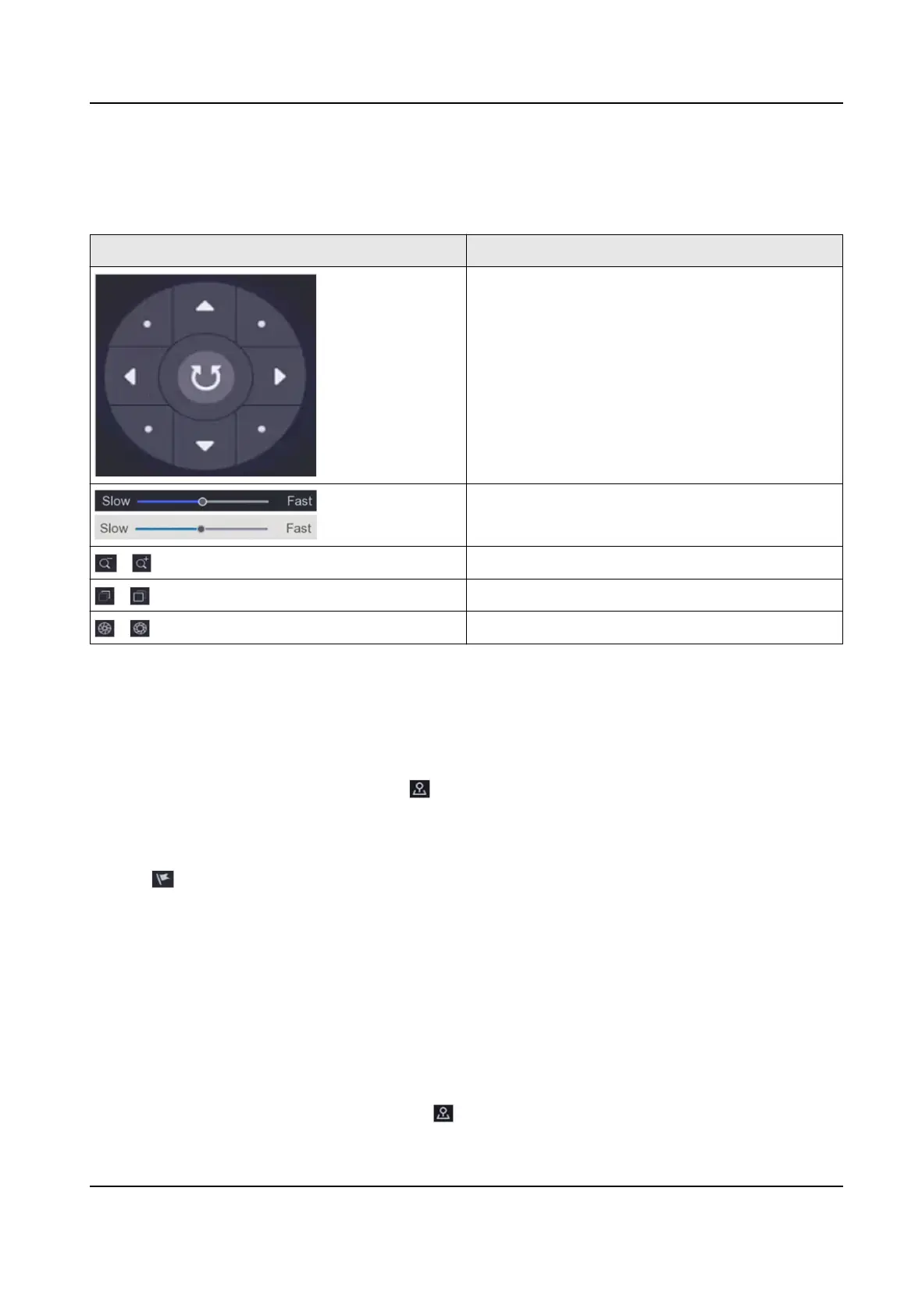

2.2.2 PTZ Control Panel Introducon
Table 2-3 PTZ Panel Descripon
Icon Descripon
Direcon buons, and the auto-cycle buon.
The speed of the PTZ movement.
/ Zoom -/+.
/ Focus -/+.
/ Iris -/+.
2.2.3 Customize Preset
Set a preset locaon where the PTZ camera would point to when an event occurs.
Steps
1. Preview a camera in live view and click on shortcut menu.
2. Select a desired preset in preset list.
3. Use
direcon buons to wheel the camera to required locaons. Adjust zoom and focus as your
desire.
4. Click .
What to do next
Double click a preset in the preset list to call it.
2.2.4 Customize Patrol
Patrol refers to a path consists of a series of presets with designated sequence. It provides dynamic
live image for monitoring several presets.
Steps
1. Preview a camera in live view and click on
shortcut menu.
Network Video Recorder User Manual
8

HIKVISION DS-7104NI-Q1/M Specifications

General

Input bandwidth	40 Mbit/s
Output bandwidth	60 Mbit/s
Maximum resolution	1920 x 1080 pixels
Video input channels	4 channels
Supported resolutions	1920x1080, 1280x1024, 1280x720, 1024x768
Video recording modes	720p, 1080p
Video formats supported	H.264, H.264+, H.265, H.265+
HDMI output	Yes
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
Product color	Black
Rack capacity	1U
Wi-Fi	No
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Output voltage	12 V
Power consumption (max)	18 W

Weight and Dimensions

Depth	225 mm
Width	260 mm
Height	48 mm
Weight	1000 g
