HIKVISION DS-7104NI-Q1/M User Manual

Congure Channel-Zero Encoding
Enable the channel-zero encoding when you need to get a remote view of many channels in real
me from a web browser or CMS (Client Management System) soware, in order to decrease the
bandwidth requirement without aecng the image quality.
Steps
1. Go to
Conguraon → System → Live View → General .
2. Set Video Output Interface as Channel-Zero.
3. Go to
Conguraon → System → Live View → Channel-Zero .

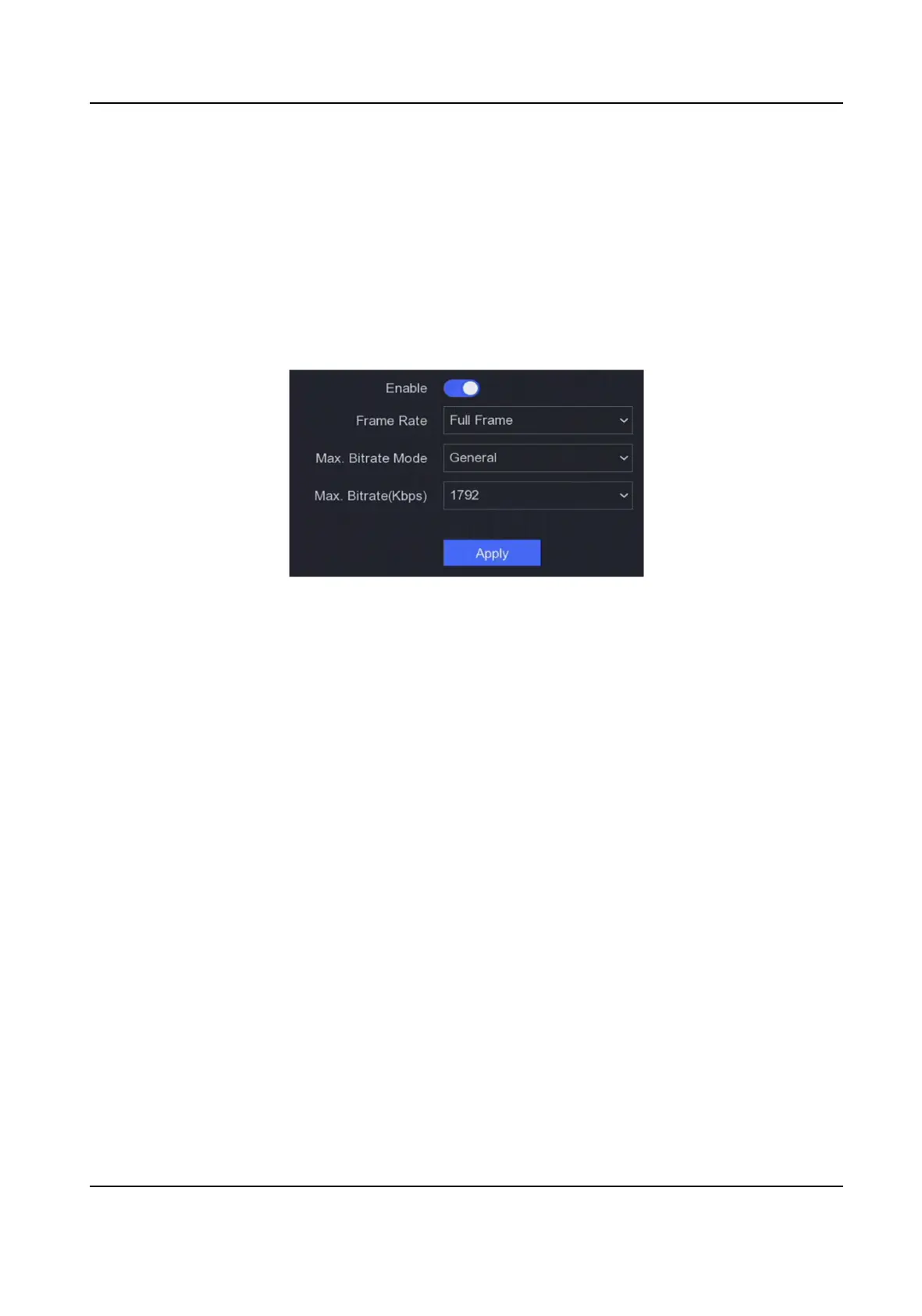

Figure 6-5 Channel-Zero
4. Turn on Enable.
5.
Congure Frame Rate, Max. Bitrate Mode, and Max. Bitrate. The higher frame rate and bitrate
require higher bandwidth requirement.
6. Click Apply.
6.1.3 User
Refer to User for details.
6.2 Network
Conguraon
6.2.1 TCP/IP
TCP/IP must be properly congured before you operate video recorder over network.
Steps
1. Go to Conguraon → Network → General → TCP/IP .
2.
Congure network parameters.
Working mode
Network Video Recorder User Manual
40

HIKVISION DS-7104NI-Q1/M Specifications

General

Input bandwidth	40 Mbit/s
Output bandwidth	60 Mbit/s
Maximum resolution	1920 x 1080 pixels
Video input channels	4 channels
Supported resolutions	1920x1080, 1280x1024, 1280x720, 1024x768
Video recording modes	720p, 1080p
Video formats supported	H.264, H.264+, H.265, H.265+
HDMI output	Yes
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
Product color	Black
Rack capacity	1U
Wi-Fi	No
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Output voltage	12 V
Power consumption (max)	18 W

Weight and Dimensions

Depth	225 mm
Width	260 mm
Height	48 mm
Weight	1000 g
