HIKVISION DS-7108HQHI-F1/N User Manual

Digital Video Recorder User Manual
184
Sensitivity: Range [0-100]. The higher the value is, the more easily the detection alarm can
be triggered.
Step 7 Click and draw a quadrilateral in the preview window by specifying four vertexes of
the detection region, and right click to complete drawing. Only one region can be
configured.
You can use the to clear the existing virtual line and re-draw it.

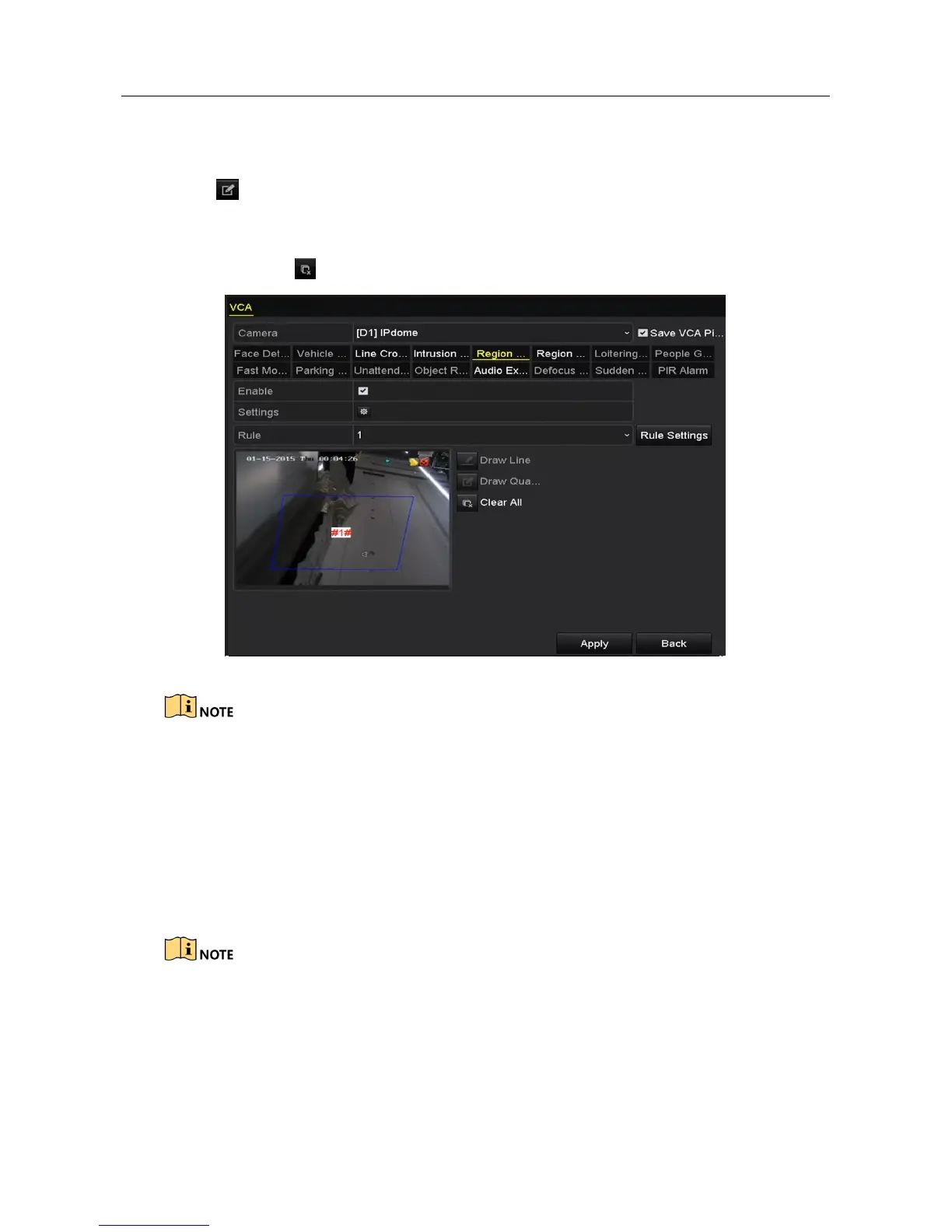

Figure 10-10 Set Region Entrance Detection
Up to 4 rules can be configured.
Step 8 Click Apply to save the settings.
10.6 Region Exiting Detection
Purpose
Region exiting detection function detects people, vehicle or other objects which exit from a
pre-defined virtual region, and some certain actions can be taken when the alarm is triggered.

Please refer to the Chapter 10.5 Region Entrance Detection for operating steps to configure
the region exiting detection.

Up to 4 rules can be configured.

HIKVISION DS-7108HQHI-F1/N Specifications

General

BNC input ports	1
Video input channels	8 channels
USB 2.0 ports quantity	2
Power consumption (typical)	12 W
Voltage	12 V
Product color	White
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	800 g
Dimensions (WxDxH)	200 x 200 x 45 mm
