HIKVISION DS-7108HQHI-F1/N User Manual

Digital Video Recorder User Manual
81

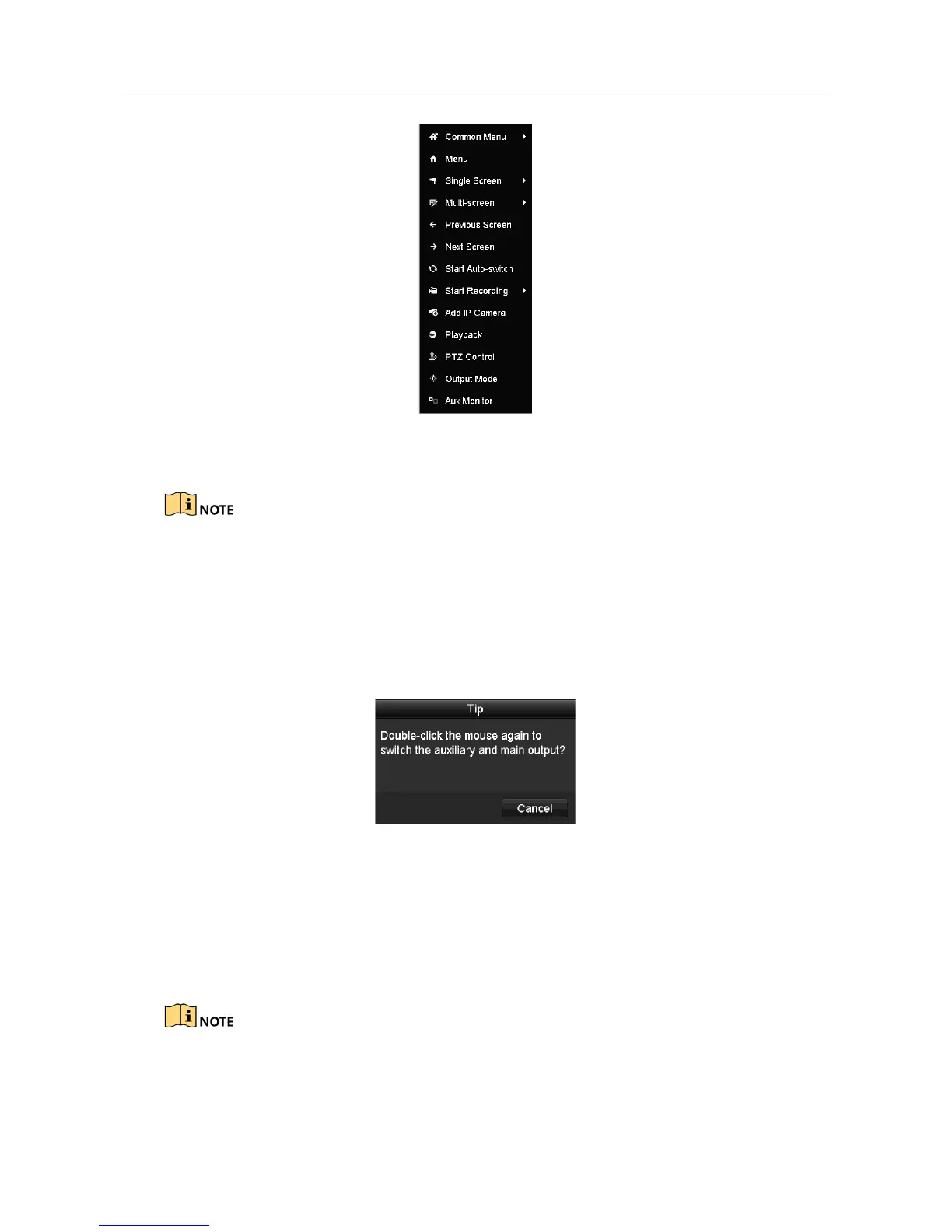

Figure 3-1 Right-click Menu
3.2.2 Switching Main/Aux Output

Except –HGHI and DS-7100HQHI-F/N series DVR, other series DVR support Aux/Main
output switch. Refer to the tables of Chapter 3.2 Operations in Live View Mode for the main
and aux output relationship.

For the DVR with CVBS output, the CVBS output only serves as the aux output or live view
output.
Step 1 Use the mouse wheel to double-click on the HDMI1/VGA, or HDMI2, or HDMI/VGA, or
HDMI, or VGA output screen, and the following message box pops up.
Figure 3-2 Switch Main and Aux Output
Step 2 Use the mouse wheel to double-click on the screen again to switch to the aux output, or
click Cancel to cancel the operation.
Step 3 Select the Menu Output Mode to others from the right-click menu on the monitor.
Step 4 On the pop-up message box, click Yes to reboot the device to enable the selected menu
output as the main output.
You can select the Menu Output Mode under Menu>Configuration>General>More Settings to
Auto, HDMI1/VGA and HDMI2 (for DS-7300/8100/9000HUHI-F/N) or Auto, HDMI and VGA (for

HIKVISION DS-7108HQHI-F1/N Specifications

General

BNC input ports	1
Video input channels	8 channels
USB 2.0 ports quantity	2
Power consumption (typical)	12 W
Voltage	12 V
Product color	White
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	800 g
Dimensions (WxDxH)	200 x 200 x 45 mm
