Chapter 2 Installation and Connections
NVR Installation
During installation of the NVR:
Use brackets for rack mounting.
Ensure ample room for audio and video cables.
When routing cables, ensure that the bend radius of the cables are no less than five times
than its diameter.
Connect the alarm cable.
Allow at least 2cm (≈0.75-inch) of space between racks mounted devices.
Ensure the NVR is grounded.
Environmental temperature should be within the range of -10 to +55º C, +14 to +131º F.
Environmental humidity should be within the range of 10% to 90%.
Hard Disk Installation
Before you start:
Disconnect the power from the NVR before installing a hard disk drive (HDD). A factory
recommended HDD should be used for this installation.
Tools Required: Screwdriver.

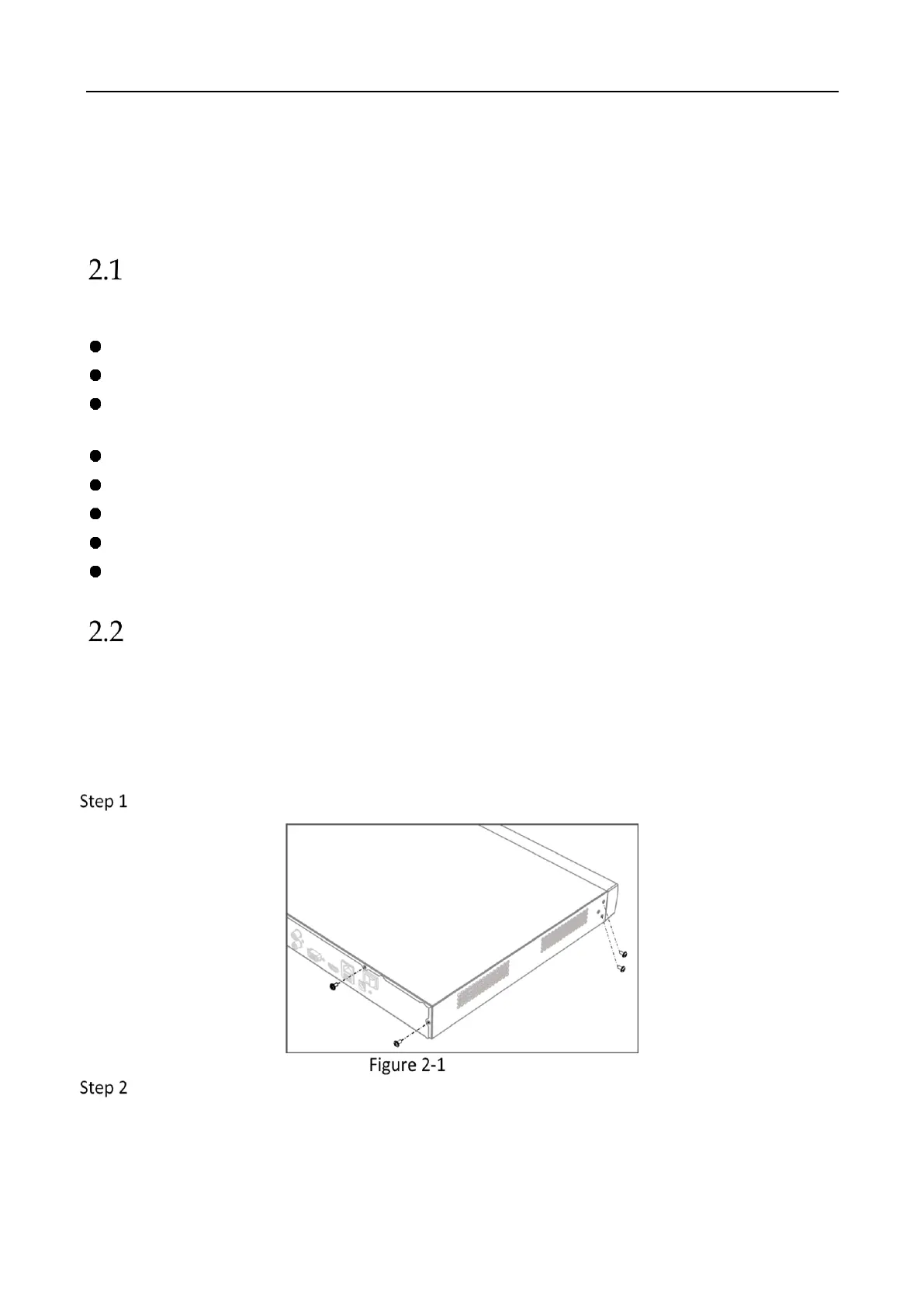

Remove the cover from device by unfastening the screws on panels.
Remove Cover
Connect the data cable and power cable.
1) Connect one end of data cable to the device motherboard.
2) Connect the other end of data cable to HDD.
3) Connect one end of power cable to HDD.

HIKVISION DS-7108NI-Q1/8P/M Specifications

General

DC voltage	48 V
Power supply type	DC
Power consumption (typical)	75 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Video input channels	8 channels
USB 2.0 ports quantity	2
VGA (D-Sub) output ports	1
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Maximum HDD capacity	6000 GB
Video compression formats	H.264, H.265

Weight and Dimensions

Depth	225 mm
Width	260 mm
Height	48 mm
Weight	1000 g
