HIKVISION DS-7108NI-Q1/8P/M Quick Start Guide

Network Video Recorder Quick Start Guide
11
4) Connect the other end of power cable to the device motherboard.

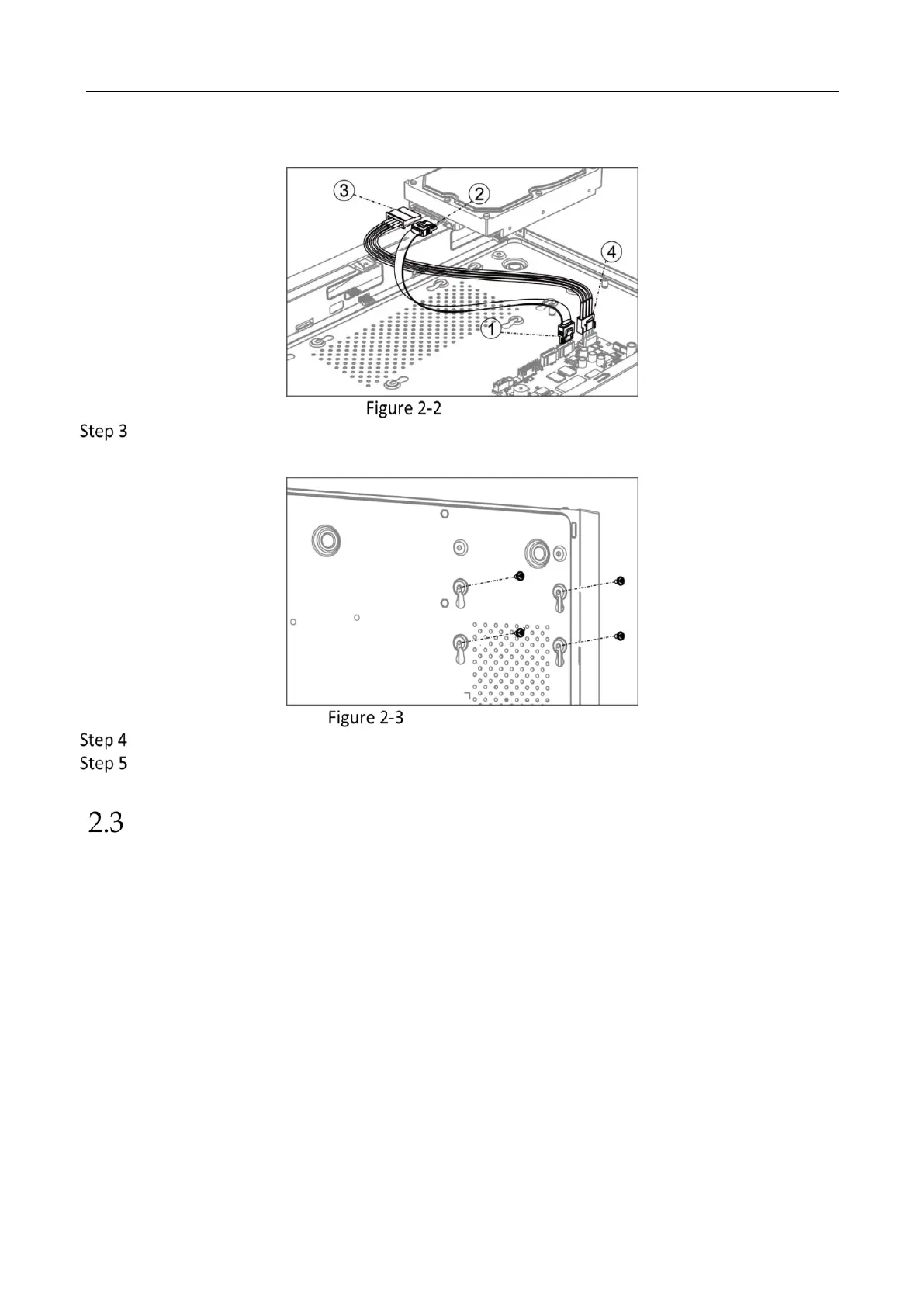

Connect Cables
Set the device up, match HDD screw threads with the reserved holes on the device bottom,
and fix HDD with screws.
Fix HDD to Device Bottom
(Optional) Repeat the steps above to install other HDDs.
Reinstall the device cover and fasten screws.
HDD Storage Calculation Chart
The following chart shows an estimation of storage space used based on recording at one channel
for an hour at a fixed bit rate.

HIKVISION DS-7108NI-Q1/8P/M Specifications

General

DC voltage	48 V
Power supply type	DC
Power consumption (typical)	75 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Video input channels	8 channels
USB 2.0 ports quantity	2
VGA (D-Sub) output ports	1
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Maximum HDD capacity	6000 GB
Video compression formats	H.264, H.265

Weight and Dimensions

Depth	225 mm
Width	260 mm
Height	48 mm
Weight	1000 g
