User Manual of DS-7200/7300/8100 Series DVR
83

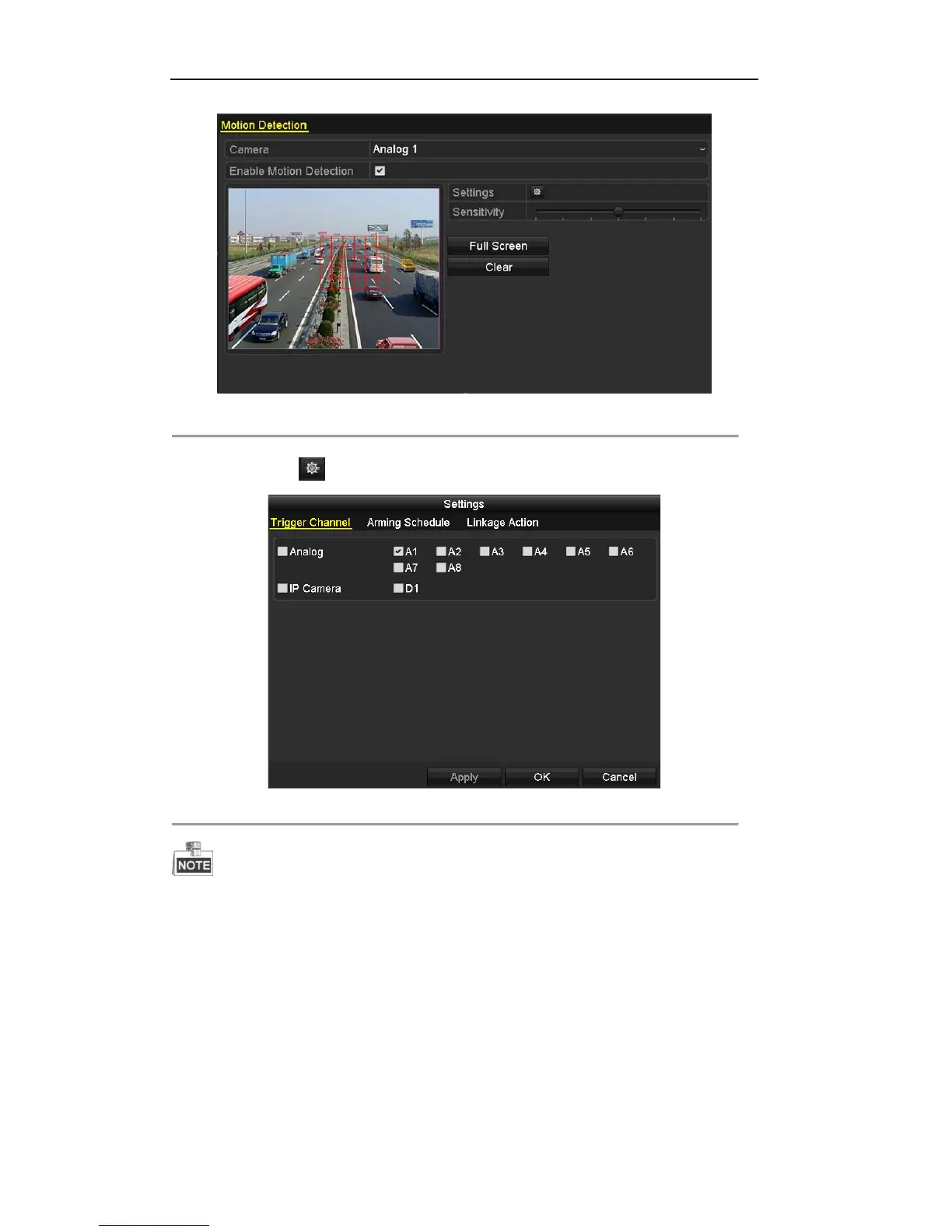

Figure 5. 15 Motion Detection- Mask
4) Click the beside Settings and the message box for channel information will pop up.
Figure 5. 16 Motion Detection Handling
The IP Camera is supported by HDVR series only.
5) Select the channels which you want the motion detection event to trigger recording.
6) Click Apply to save the settings.
7) Click OK to back to the upper level menu.
8) Exit the Motion Detection menu.
3. Enter Schedule settings interface.
Menu> Parameters> Schedule
