User Manual of Digital Video Recorder
56

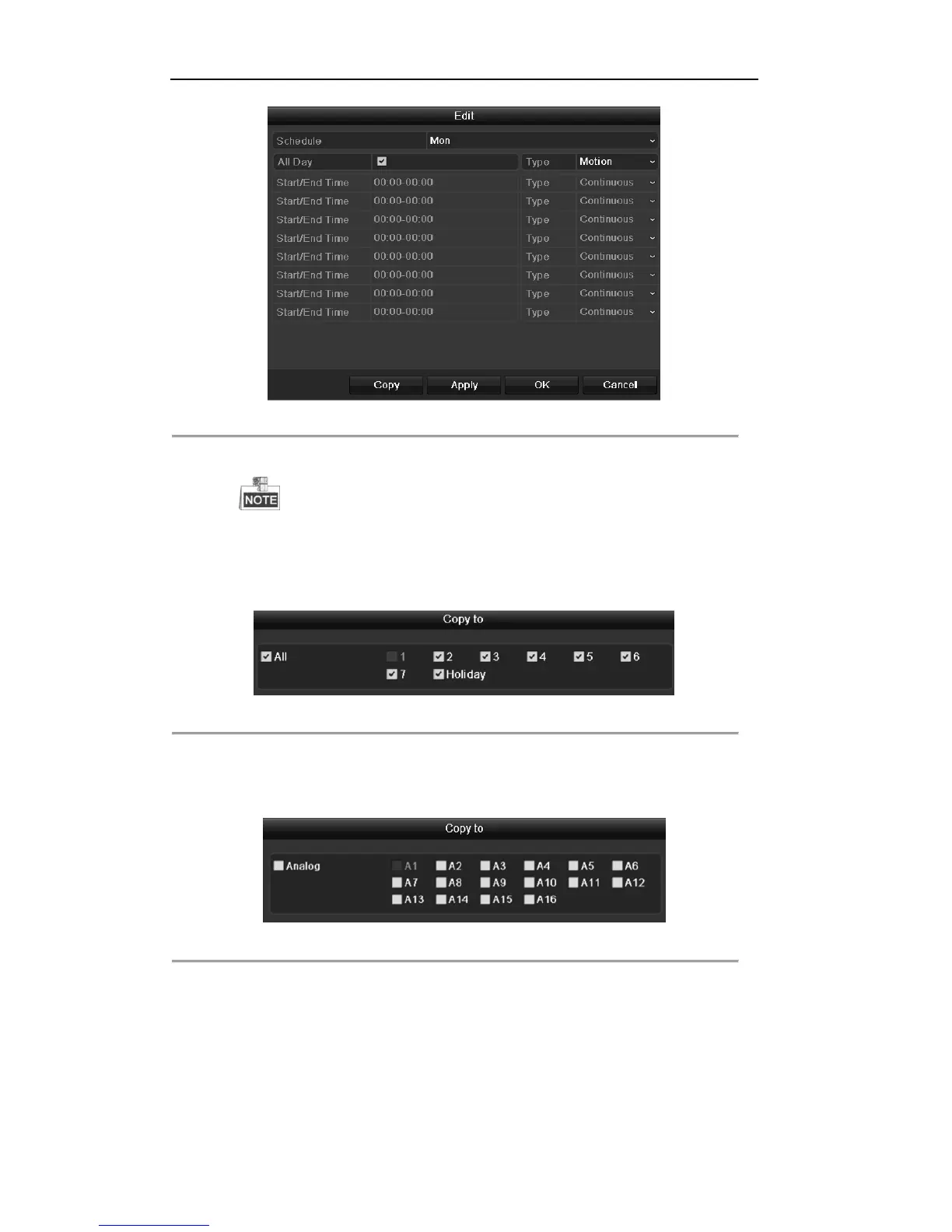

Figure 5. 16 Edit Schedule
To arrange other schedule, leave the All Day checkbox blank and set the Start/End time.
Up to 8 periods can be configured for each day. And the time periods can’t be overlapped each
other.
Repeat the above steps3)-6) to schedule motion detection triggered recording for all the week. If
the schedule can also be set to other days, click Copy.
Figure 5. 17 Copy Schedule to Other Days
6) Click OK to back to upper level menu.
If you can to copy the same schedule settings to other camera (s), click Copy to enter the Copy Camera
interface, and then select the camera (s) you want to copy.
Figure 5. 18 Copy Schedule to Other Channels
5.4 Configuring Manual Record
Purpose:
Follow the steps to set parameters for the manual record. When using manual record, you need to manually
cancel the record. The manual recording is prior to the scheduled recording.
