Network Video Recorder User Manual
17
DS-7700NI-E4 Series

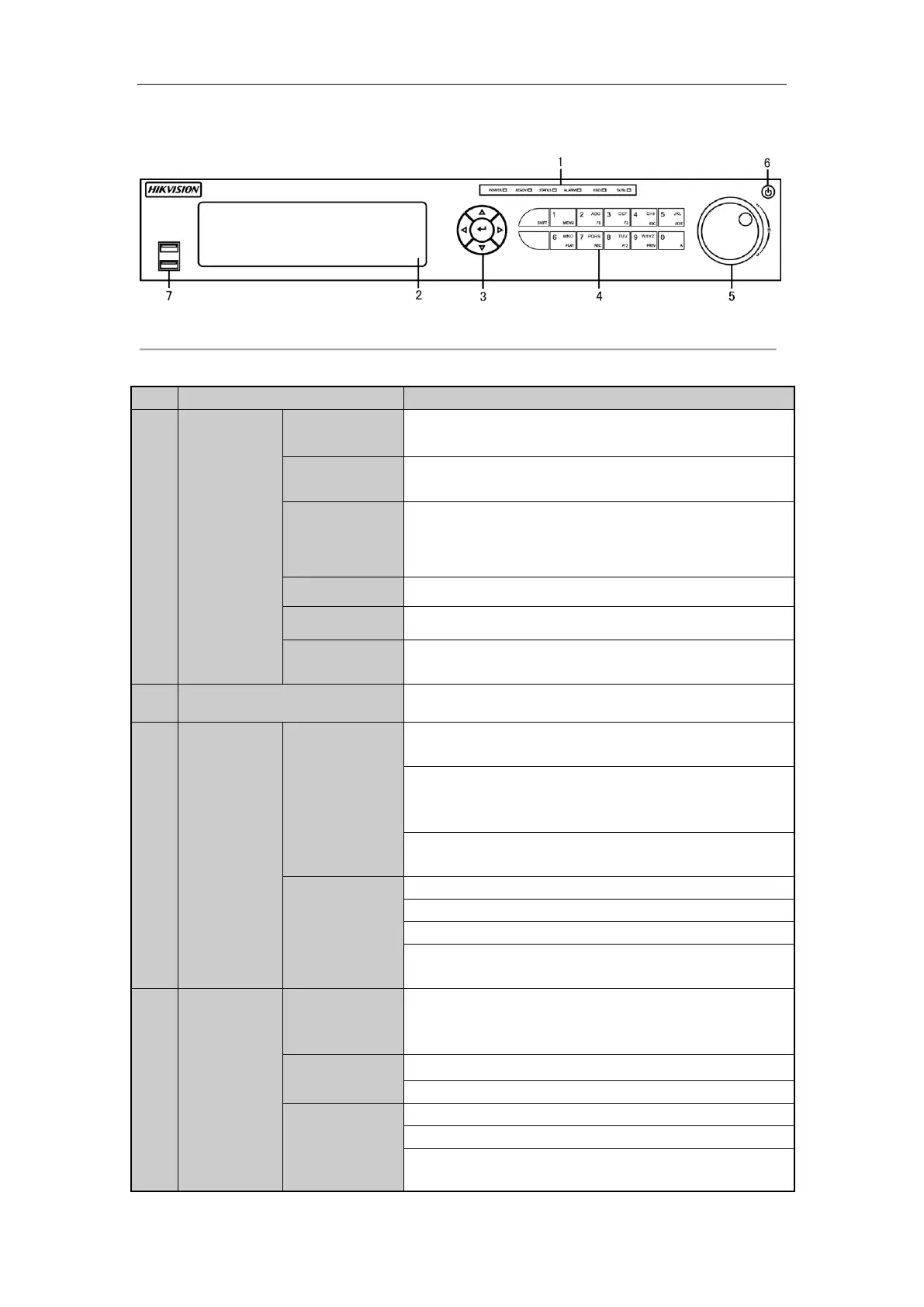

Figure 1. 2 DS-7700NI-E4 Series
Table 1. 2 Description of Control Panel Buttons
Turns green when NVR is powered up.
Turns green when the device is running normally.
Turns green when the IR remote control is enabled;
Turns red when the function of the composite keys (SHIFT) are
used.
Turns red when there is an alarm occurring.
Flickers red when HDD is reading/writing.
Flickers green when network connection is functioning normally.
Navigates between different fields and items in menus.
In the playback mode, use the Up and Down buttons to speed up
and slow down recorded video. Use the Left and Right buttons to
select the next and previous video files.
Cycles through channels in live view mode.
Confirms selection in any of the menu modes.
Checks the checkbox fields.
Plays or pauses the video playing in playback mode.
Advances the video by a single frame in single-frame playback
mode.
Switches between the numeric or letter input and functions of the
composite keys. (Input letter or numbers when the light is out;
Realize functions when the light is red.)
Accesses the main menu interface.
Uses the F1 button in a list field to select all items.
To Next Page
