User Manual of Network Video Recorder
202

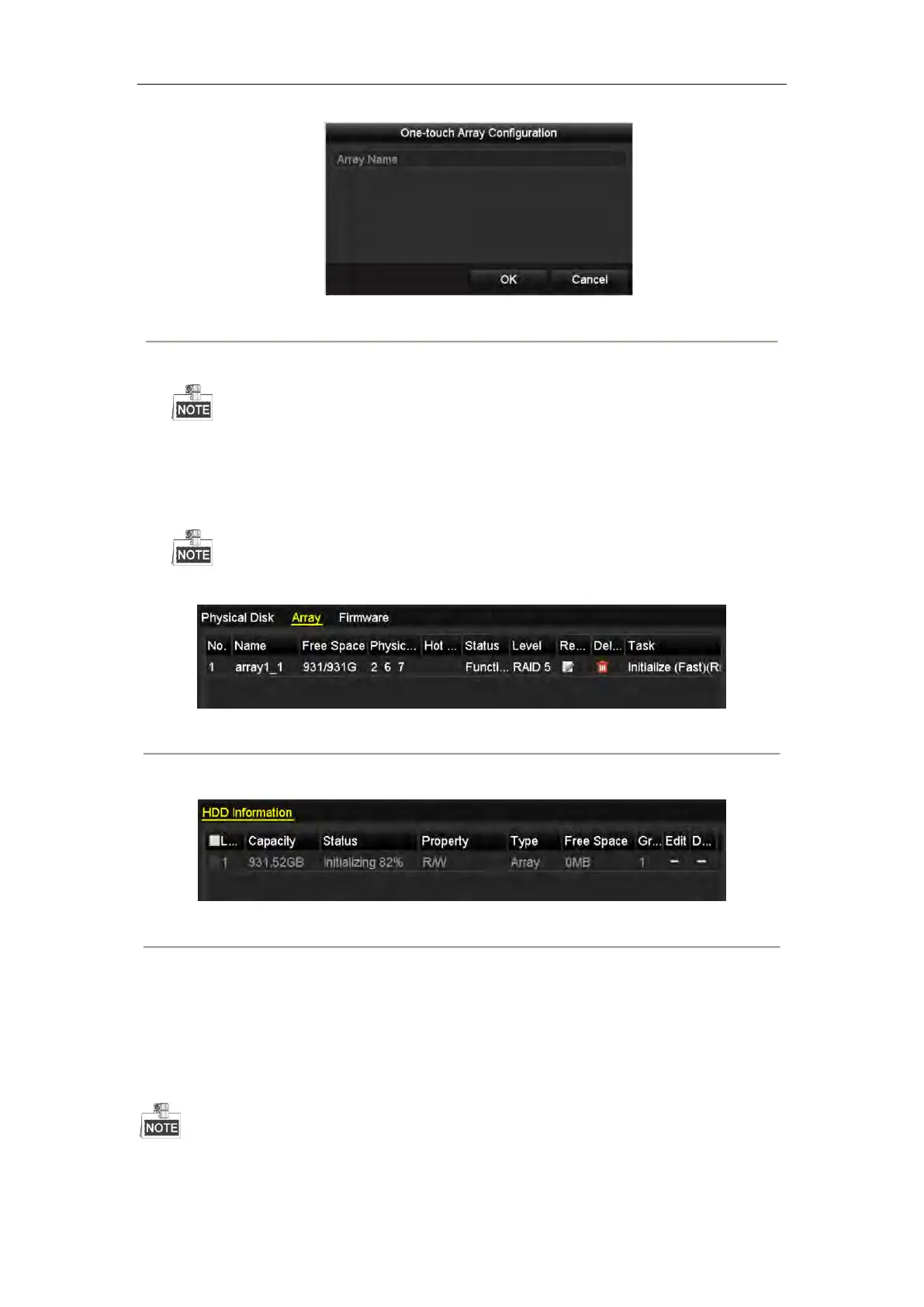

Figure 13. 4 One-touch Array Configuration
4. Edit the array name in the Array Name text filed and click OK button to start configuring array.
If you install 4 HDDs or above for one-touch configuration, a hot spare disk will be set by default. It is
recommended to set hot spare disk for automatically rebuilding the array when the array is abnormal.
5. When the array configuration is completed, click OK button in the pop-up message box to finish the settings.
6. You can click Array tab to view the information of the successfully created array.
By default, one-touch configuration creates an array and a virtual disk.
Figure 13. 5 Array Settings Interface
7. A created array displays as an HDD in the HDD information interface.
Figure 13. 6 HDD Information Interface
13.1.3 Manually Creating Array
Purpose:
You can manually create the array of RAID 0, RAID 1, RAID 5 and RAID 10.
In this section, we take RAID 5 as an example to describe the manual configuration of array and virtual disk.
