HIKVISION DS-96128NI-I24 Quick Start Guide

Network Video Recorder Quick Start Guide
12
2.2.2 DS-96000NI-I24(/H) Series
Purpose:
The following section introduces the HDD installation for the DS-96000NI-I24(/H) series NVR.
Steps:
1. Unlock the front panel with the panel key.

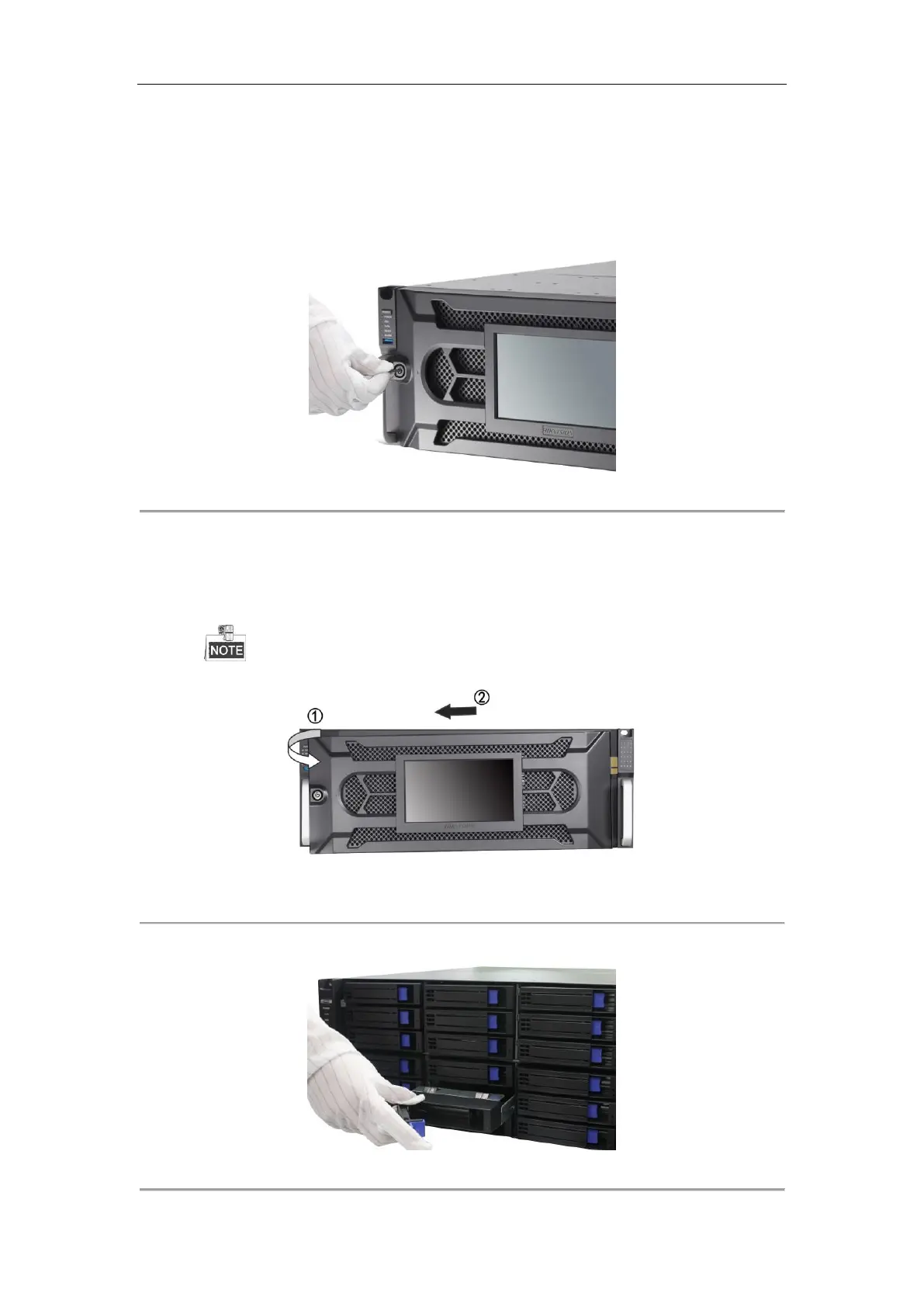

Figure 2. 6 Unlock the Panel
2. To remove the cover from front panel, operate following steps:
1) Slightly pull the cover out of the device along the direction arrow ① and make it a little above the left
handle. The angle between the cover and the front panel must be within 10°.
2) Pull the front panel out of the device along the direction arrow ②.
Handle with care to avoid damage.
Figure 2. 7 Remove the Cover
3. Press the blue button to pop up the handle and hold the handle and pull the hard disk box out of the slot.
Figure 2. 8 Pull out Slot

HIKVISION DS-96128NI-I24 Specifications

General

Audio system	2-way
Input bandwidth	576 Mbit/s
Output bandwidth	512 Mbit/s
Maximum resolution	4096 x 2160 pixels
Alarm input channels	16
Video input channels	128 channels
Alarm output channels	8
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, H.265+, M-JPEG, MPEG4
Number of simultaneously playbacked channels	16 channels
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	4
Supported network protocols	IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
Product color	Black
Rack capacity	4U
Rack mounting	Yes
RAID levels	0, 1, 5, 10
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	10 TB
Number of HDDs installed	0
Number of HDDs supported	24
AC input voltage	100 - 240 V
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Display type	LCD

Weight and Dimensions

Depth	528 mm
Width	447 mm
Height	172 mm
Weight	23000 g
