Network Video Recorder Quick Start Guide
21
3.5 Login and Logout
3.5.1 User Login
Purpose:
If NVR has logged out, you must login the device before operating the menu and other functions.
Steps:
1. Select the User Name in the dropdown list.

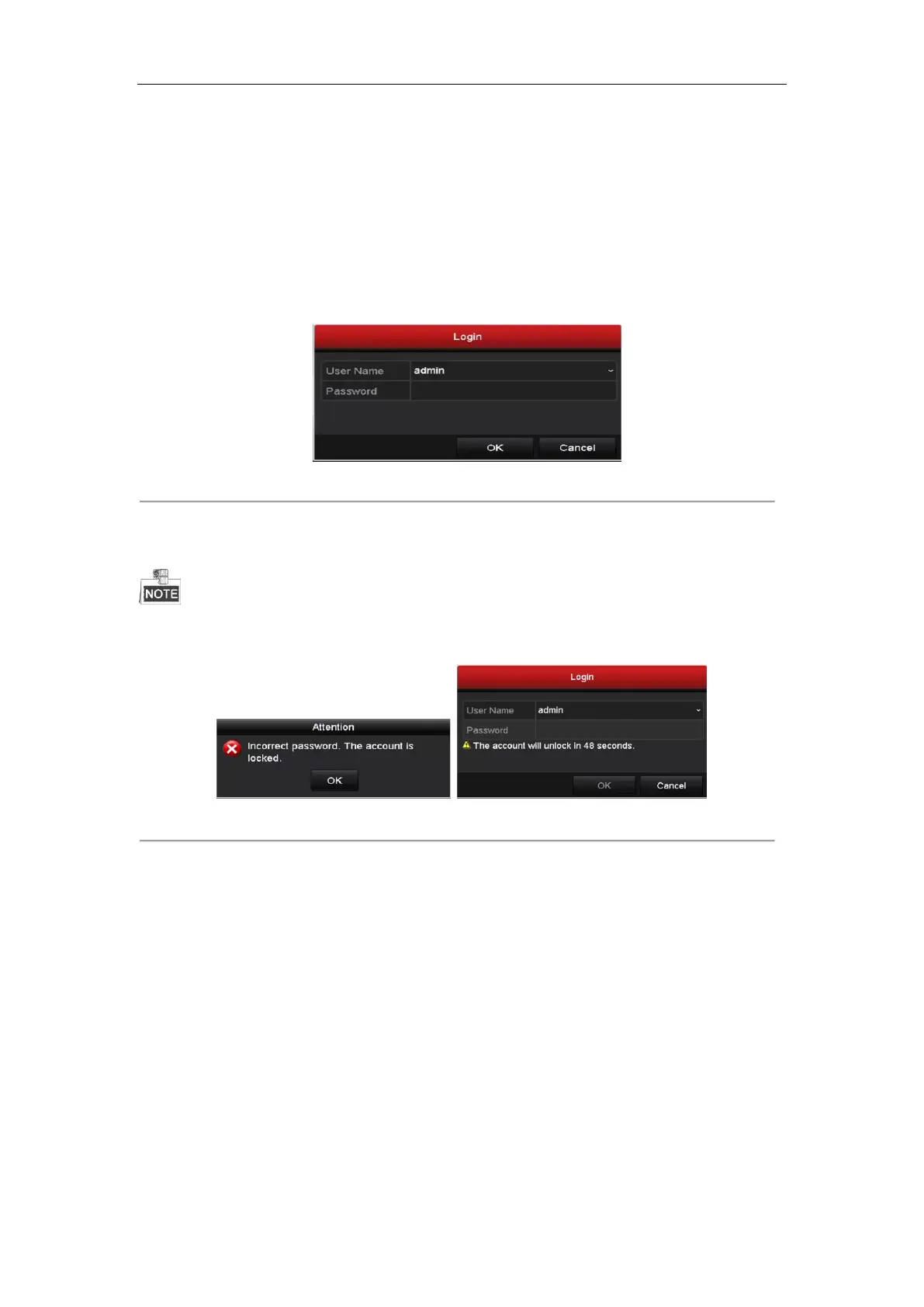

Figure 3. 6 Login
2. Input Password.
3. Click OK to log in.
In the Login dialog box, if you enter the wrong password 7 times for administrator or 5 times for other user, the
current user account will be locked for 60 seconds.
Figure 3. 7 Account Lock
3.5.2 User Logout
Purpose:
After logging out, the monitor turns to the live view mode and if you want to perform any operations, you need to
enter user name and password log in again.
Steps:
1. Enter the Shutdown menu.
Menu > Shutdown

Other manuals for HIKVISION DS-96128NI-I24

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-96128NI-I24 and is the answer not in the manual?

HIKVISION DS-96128NI-I24 Specifications

General IconGeneral
Audio system2-way
Input bandwidth576 Mbit/s
Output bandwidth512 Mbit/s
Maximum resolution4096 x 2160 pixels
Alarm input channels16
Video input channels128 channels
Alarm output channels8
Supported resolutions4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supportedH.264, H.264+, H.265, H.265+, M-JPEG, MPEG4
Number of simultaneously playbacked channels16 channels
Audio RCA inputs1
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports4
Supported network protocolsIPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
Product colorBlack
Rack capacity4U
Rack mountingYes
RAID levels0, 1, 5, 10
HDD capacity- GB
HDD interfaceSATA
Maximum storage capacity10 TB
Number of HDDs installed0
Number of HDDs supported24
AC input voltage100 - 240 V
Power consumption (typical)14 W
Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)10 - 90 %
Display typeLCD
Weight and Dimensions IconWeight and Dimensions
Depth528 mm
Width447 mm
Height172 mm
Weight23000 g
