Installation for DS-K1101/ 02/ 03/ 04 series card reader

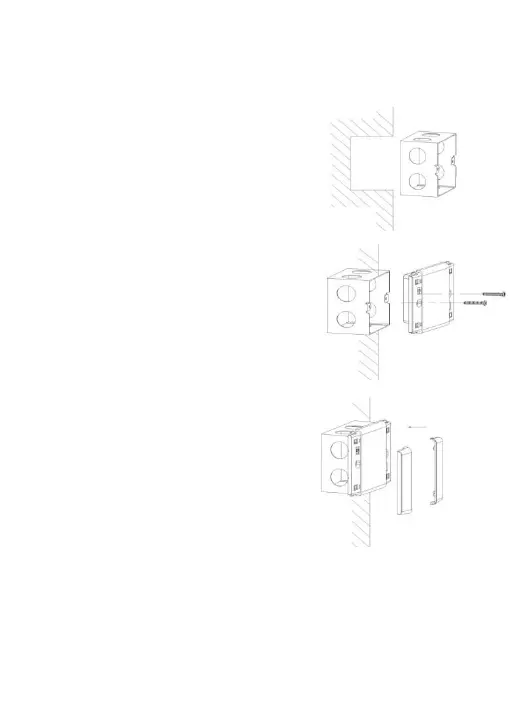

Steps:
1. Fix the gang box on the wall or
other place.
2. Connect the cables between
controller and card reader. For
details, refer to 3.4 Wiring
Cables.
3. Push the card reader to match
the fixed gang box.
4. Fasten the screw to keep the
components together.
5. Fix the side cover onto the card
reader, press the cover to make
it tightly fit the reader.
Chapter 4 Sound Prompt and Indicator
After the card reader is powered on, LED status indicator will turn
blue and blink for 1 time. Then it will turn red and blink for 3
times. At last the buzzer will send out a beep sound indicating the
