4.3 Installing E-Lock
4.3.1 Installation of Cathode Lock

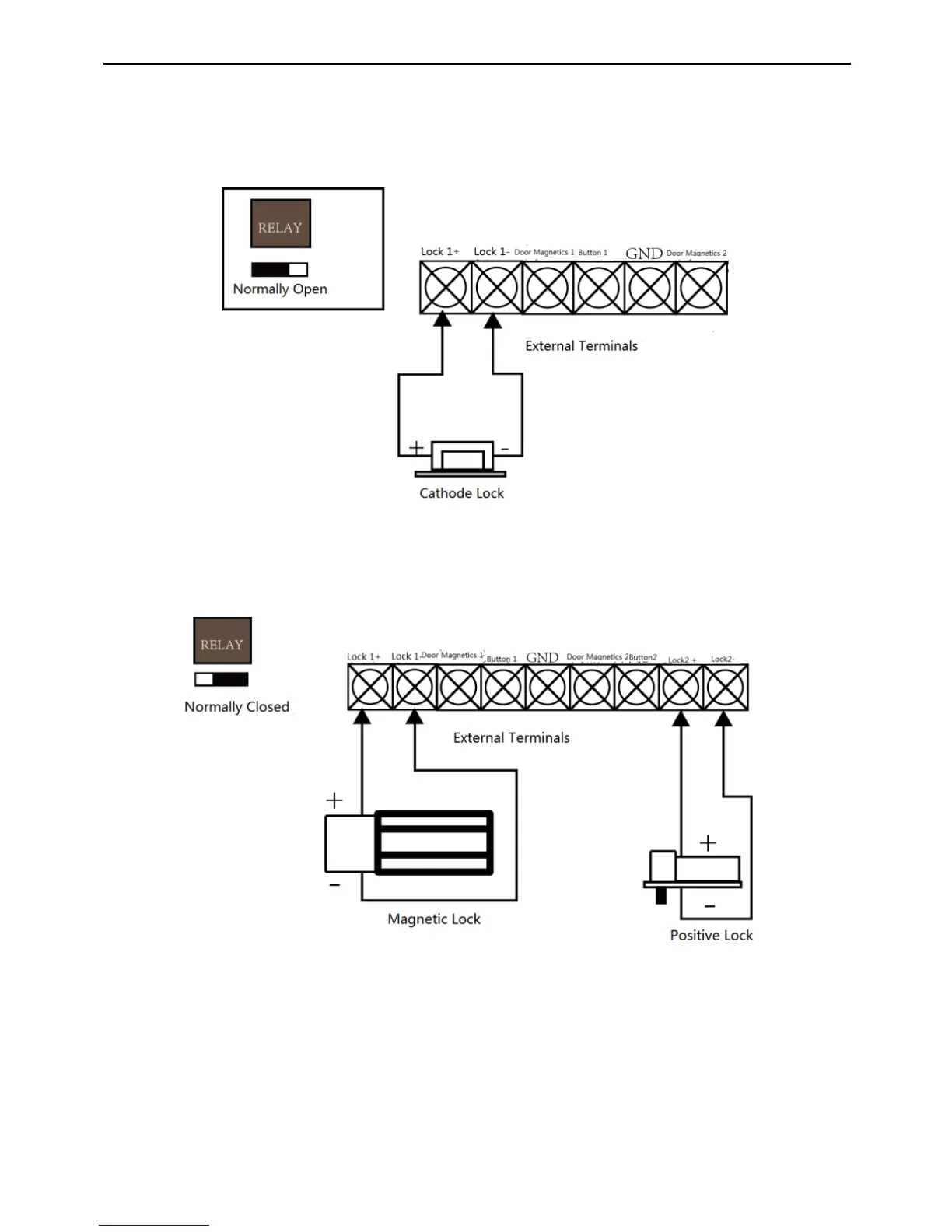

Figure 4-6 Wiring diagram of cathode lock
4.3.2 Installation of Anode Lock
Figure 4-7 Wiring diagram of anode lock
