Video Intercom Door Station·User Manual
8
The dimensions above are theoretical. The actual size can be slightly different from
the theoretical dimension.
5.1.2 Wall Mounting with Gang Box of DS-KV8X02-1A Model
Steps:
1. Take the gang box and screws from the packing box.
2. Chisel a hole in the wall for inserting the gang box. The size of the hole should be 90
(width) ×170 (length) × 38(depth) mm.
3. Insert the gang box into the hole and fix it with 4 PA4 screws, as shown in the figure
below.

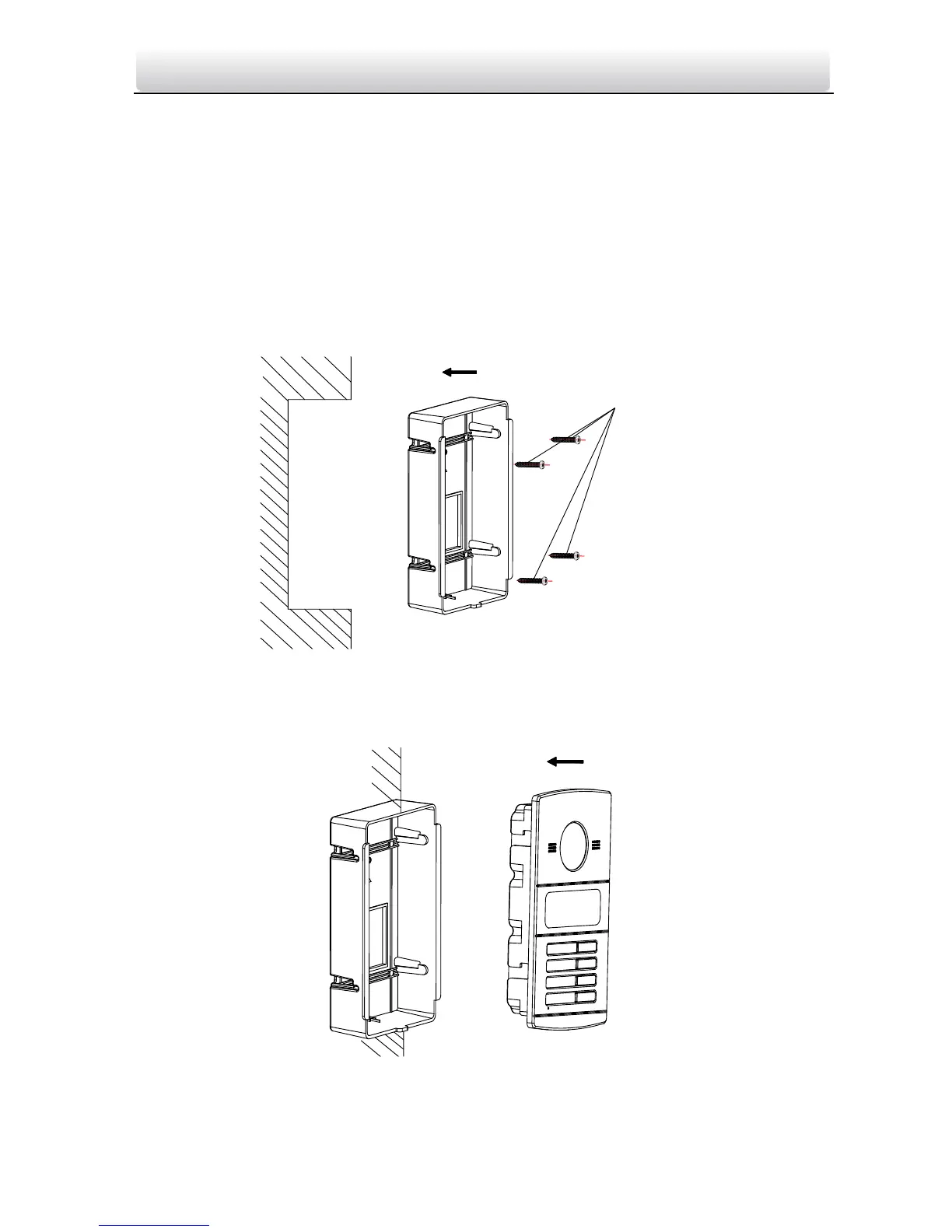

Figure 5-2 Insert the Gang Box
4. After fixing the gang box, install the door station into the gang box according to the
direction of the arrow, as shown in the figure below.
Figure 5-3 Insert the Door Station
