Capture Speed
When the speed of the vehicle on the lane (except the emergency lane) is lower than the set
value, no capture will be triggered.
4.
Click Save.
1.5.9 Set Trac Light Detecon Parameters
Trac light detecon is supported for video analysis intersecon violaon system.
Steps
1.
Go to Conguraon → Capture → Applicaon Mode .
2.
Select Applicaon Mode as Video Analysis E-Police.
3.
Select
Trac Light Signal Input and set the corresponding parameters.
RS-485 Set Linked Red Light Channel and Yellow Light Related Channel No. according to
the actual wiring.
Video
Analysis
Interface
Click Set to set the video analysis area.

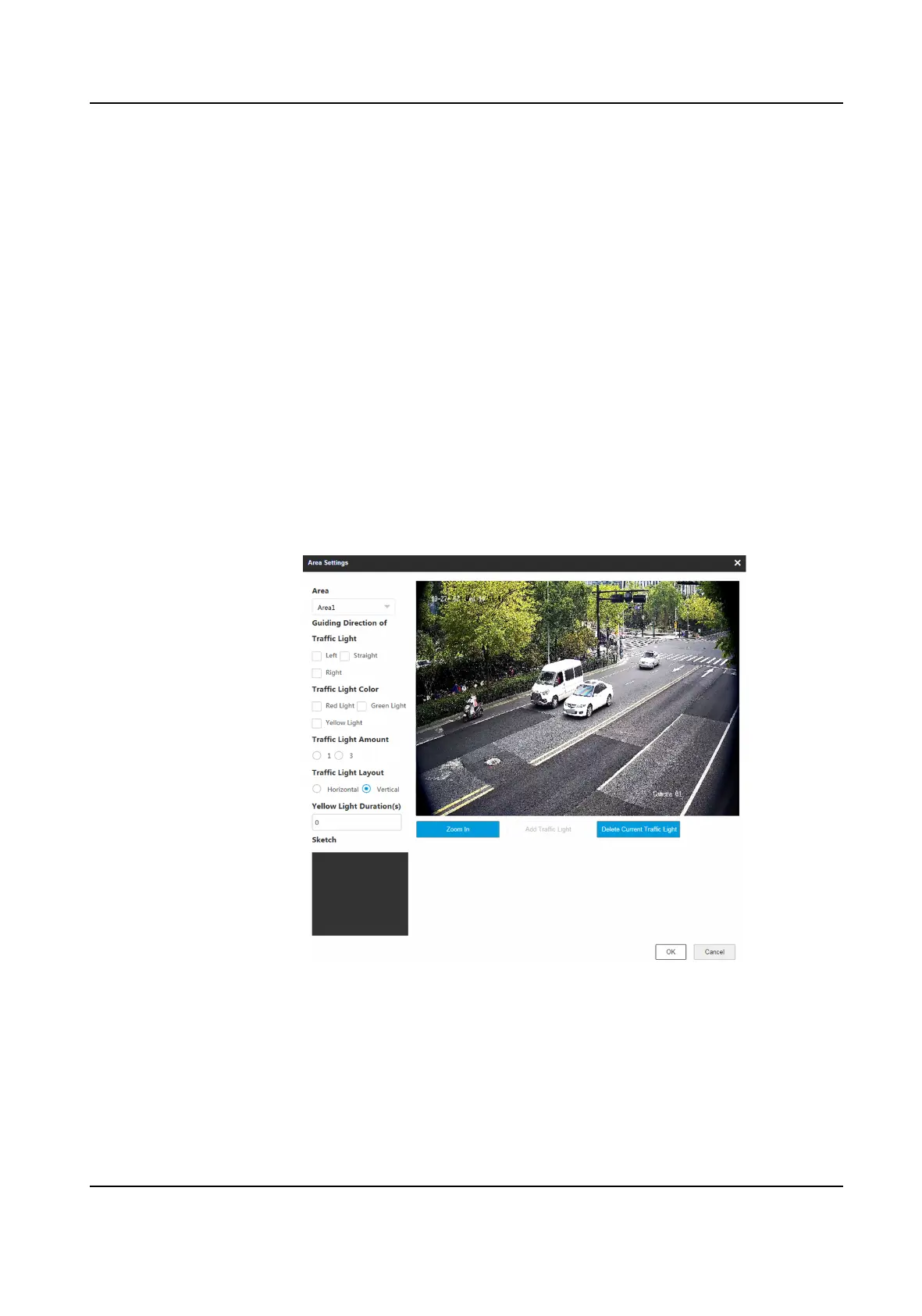

Figure 1-13 Set Video Analysis Area
a. Select the area.
b. Set the parameters.
Guiding
Direcon of Trac Light
The direcon guided by the trac light.
Network Trac Camera Conguraon Manual
28
