Installation OS20/OS30

Release

06/2015

1.5.3 1000 Mbit/s F/O port

Only OS30 device variants have 1000 Mbit/s F/O ports.

This port is an SFP slot.

The 1000 Mbit/s F/O port offers you the ability to connect network

components according to the IEEE 802.3 100BASE-SX/1000BASE-LX

standard.

This port supports:

 Autonegotiation

 Full duplex mode

Delivery state: Autonegotiation activated

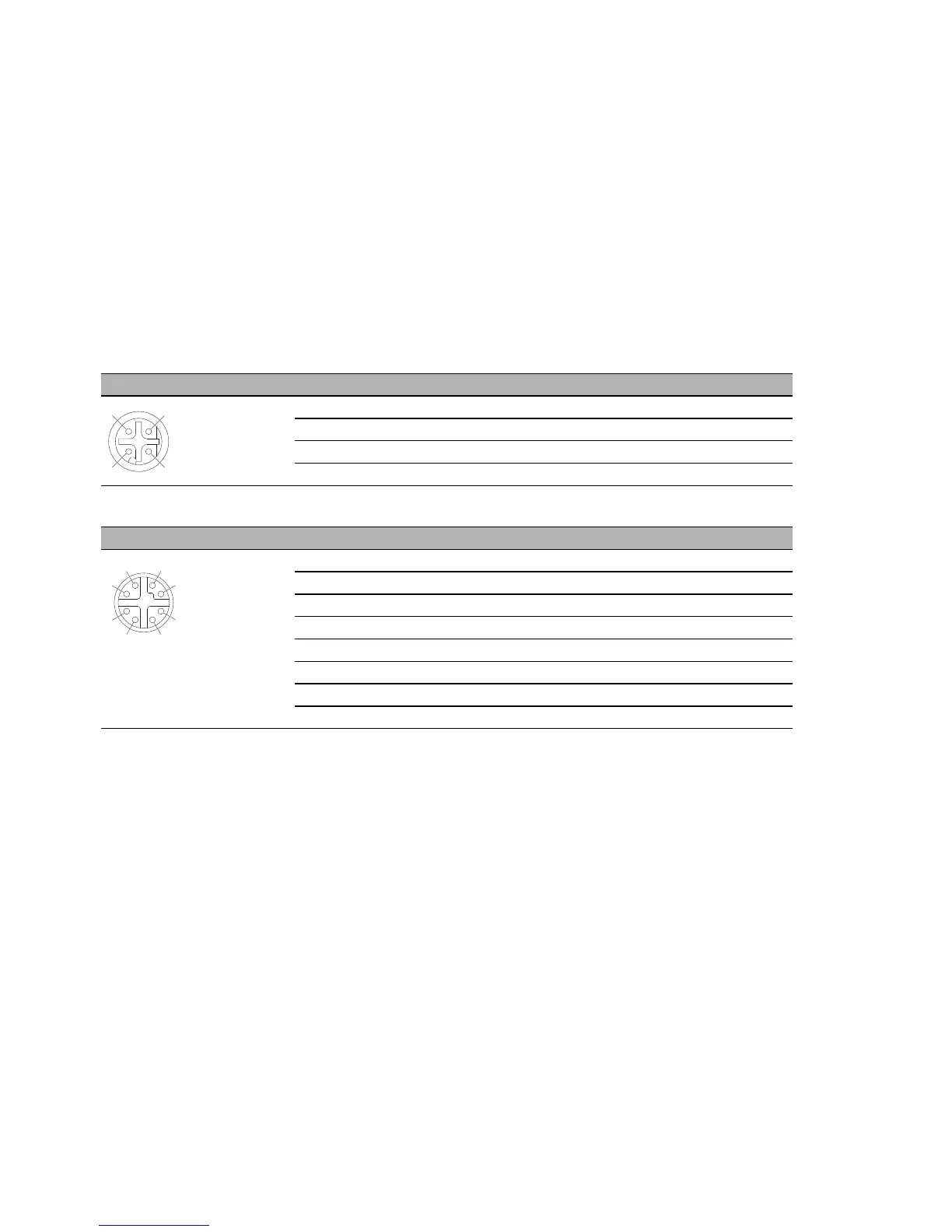

1.5.4 Pin assignments

M12 4-pin (D coded) Pin Data PoE

1 TX+ Positive V

PSE

2 RX+ Negative V

PSE

3TX− Positive V

PSE

4RX− Negative V

PSE

M12 8-pin (X-coded) Pin 10/100 Mbit/s 1000 Mbit/s PoE

1 RX+ BI_DB+ Negative V

PSE

2RX− BI_DB− Negative V

PSE

3 TX+ BI_DA+ Positive V

PSE

4TX− BI_DA− Positive V

PSE

5 — BI_DC+ —

6— BI_DC− —

7— BI_DD− —

8 — BI_DD+ —
