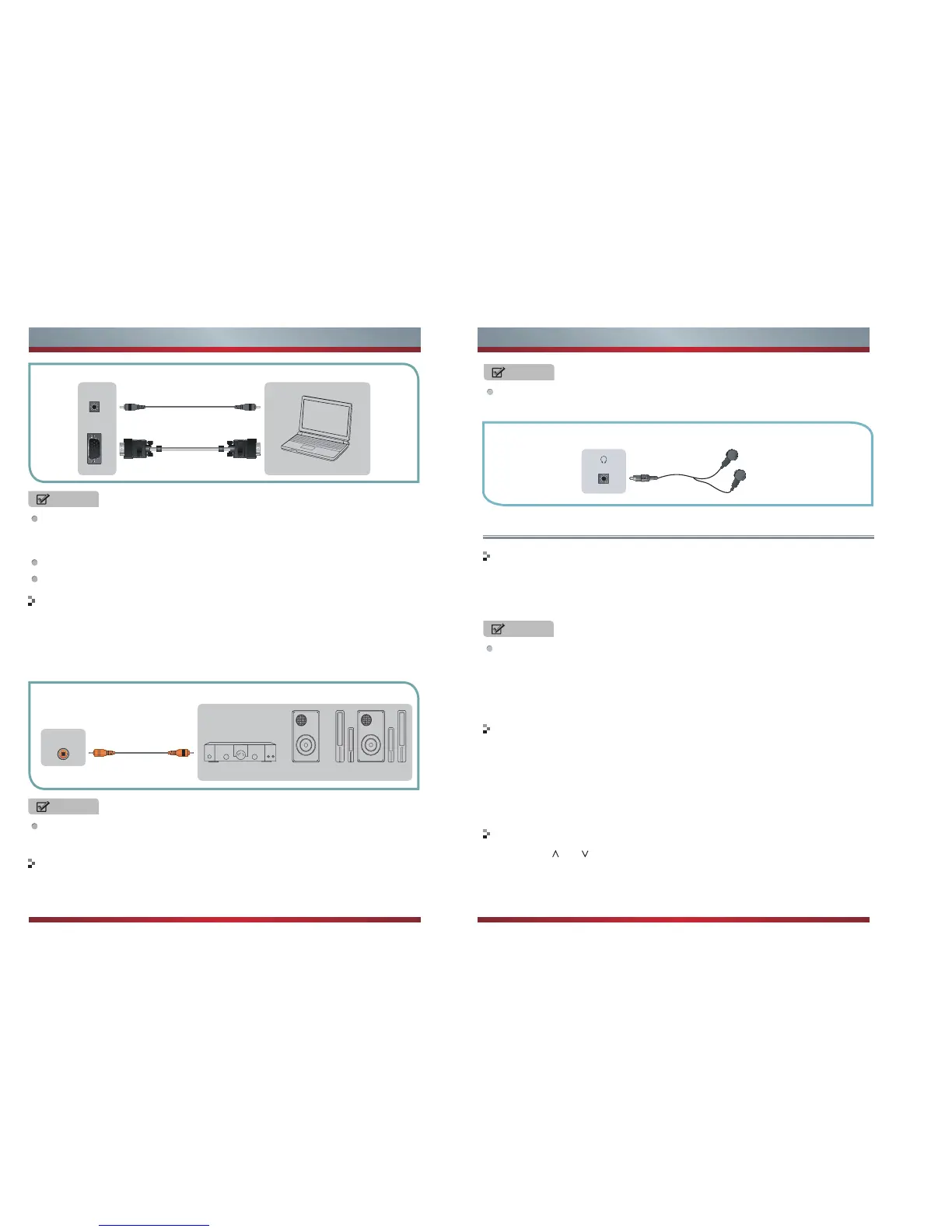

Getting Started Getting Started
EXTERNAL DEVICES
Computer
TV JACK
VGA
PC/DVI AUDIO IN
Audio Cable
(not included)
VGA Cable
(not included)
NOTES
Primarily this unit is intended for use as an LCD TV. If you want to use it as a
monitor, please contact the manufacturer of the PC Video/Graphic's card for further
support. Perfect compatibility is not warranted.
The VGA cable will not be supplied with the product.
We strongly recommend to use VGA cable with 2 cores as shown in the figure.
COAXIAL audio
1. Use a coaxial cable to connect the A/V device’s digital audio in jack to the TV’s
DIGITAL AUDIO OUT jack.
2. Plug the connected devices into the mains socket before switching on the TV.
3. Select the corresponding source from the TV.
TV JACK
EXTERNAL DEVICES
Powerless
Bass Speaker
Speaker
Audio Ampli� er
COAXIAL
Coaxial Cable
(not included)
NOTE
When a digital audio system is connected to the DIGITAL AUDIO OUT (COAXIAL)
jack, decrease the volume of both the TV and the system.
Connecting a headphone
Headphones can be connected to the HEADPHONE output on your set. (While the
headphone is connected, the sound from the built-in speakers will be disabled.)
Turning your TV on and off
Selecting the video source
Adjusting the volume
1. To turn your TV on: Connect the TV to an AC power outlet and turn on the AC
Power ON/OFF switch and turn on the Power button. A few seconds later an image
will appear on the screen.
1. Select the video source depending on the video device you have connected to the
TV set. DTV, ATV, AV,YP
bPr,HDMI PC and USB can be chosen as the video
source.
2.
Press [Source] to select the video source . When the list of video source appears,
press [▲/▼ ] to select the source, then press [OK] to enter.
Press [VOL
/VOL ] to increase or decrease the volume. Press [Mute] to turn off
the Audio. Press [Mute] again to turn on the Audio.
NOTE
Turn the Power button off when you do not intend to use the TV for long periods,
for example overnight. Remove the connection from the wall power outlet if you do
not intend to use the unit for longer period, for example, if you plan to be away for
a few days. Wait at least 5 seconds after turning off if you want to turn on the TV
again.
Shortcuts Instructions
∧ ∨
NOTE
To prevent possible hearing damage, do not listen at high volume levels for long
periods
AUDIO OUT
EXTERNAL DEVICESTV JACK
To Next Page
