6.6 Light
6.6.1 Basic parameters
1.Check the connecting wiring between light and mainboard is well
or not,repair if it is broken.Refrigerator light corresponding pin No.1
and No.2 on CN7 connector of mainboard,freezer light corresponding
pin No.1 and No.3,ice maker light corresponding pin No.1 and No.4,

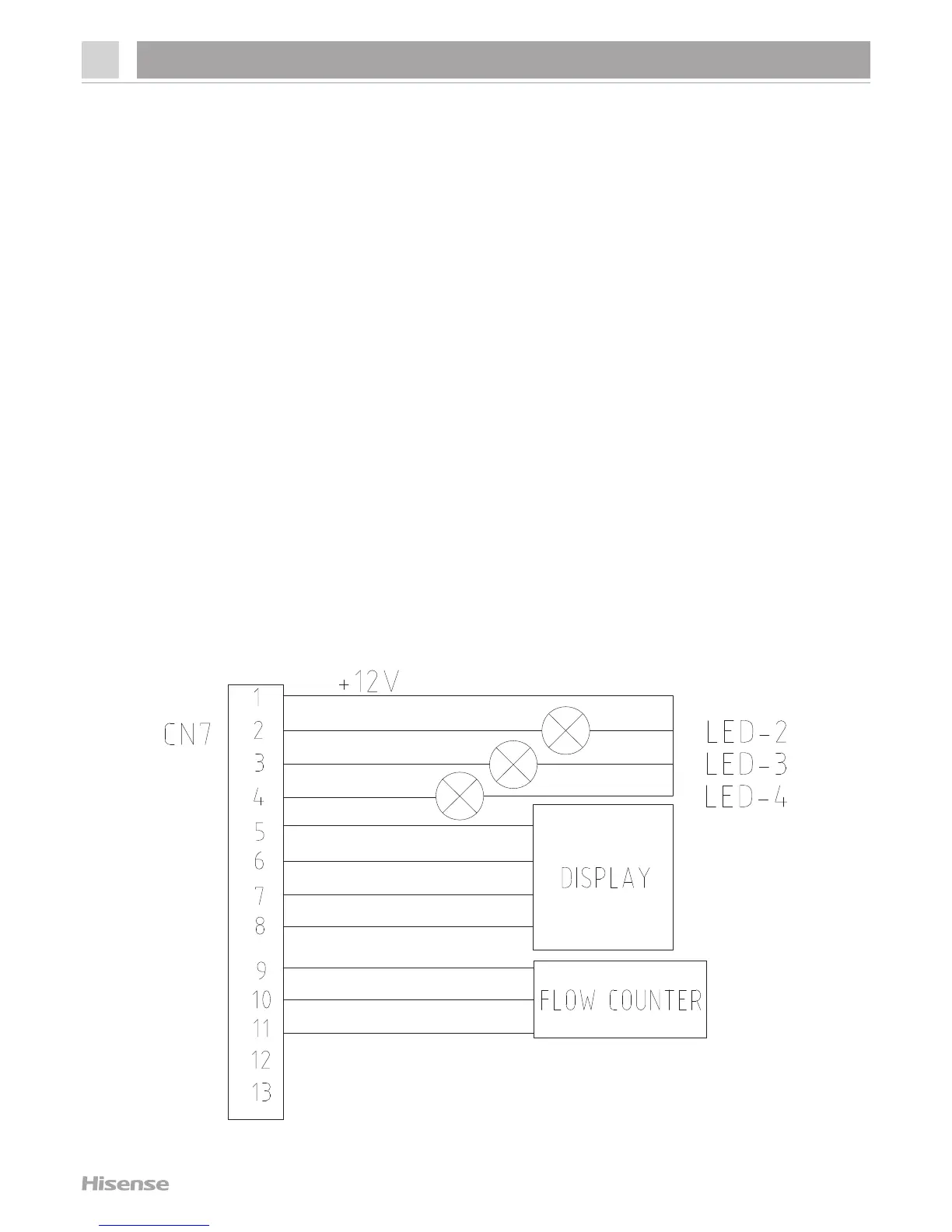

as the drawing below.
2.Check output voltage corresponding light of the mainboard,if it is
12V,it means the mainboard is OK,change the light;If not,it means
the mainboard is not OK,change it.
6.6.2 Checking method
6.Circuit and checking
Rated voltage:DC12V
Rated power:2W
