STEP 2. Connect devices to your TV
Check to ensure that you have selected the right cables for the ports and that they are connected securely. Loose connections can affect
the quality of the picture image and colour. (Cables and External Equipment not included.)

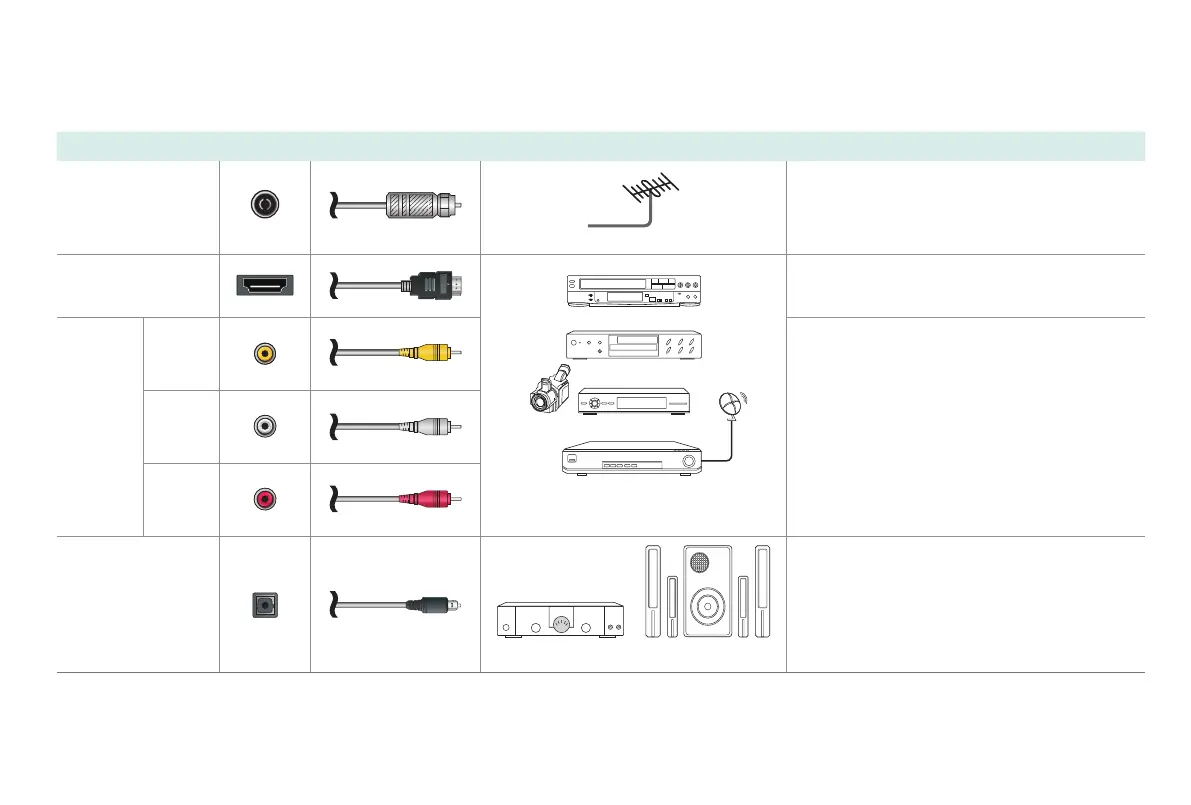

TV label Port Cable External Equipment Brief Description
ANT
Antenna
Connect an outdoor or indoor antenna.
HDMI
DVD Player/Recorder
Set-top Box
Satellite Receiver
Satellite
antenna
cable
VCR
Video
Camera
Connect a High Speed HDMI
®
Cable from
an external device.
AV IN
VIDEO
Yellow
Connect a composite video cable and left-
right audio cables from an external AV
device.
L
White
R
Red
DIGITAL AUDIO OUT
SpeakerAudio Amplier
Connect a digital audio cable from an
external digital audio system.
