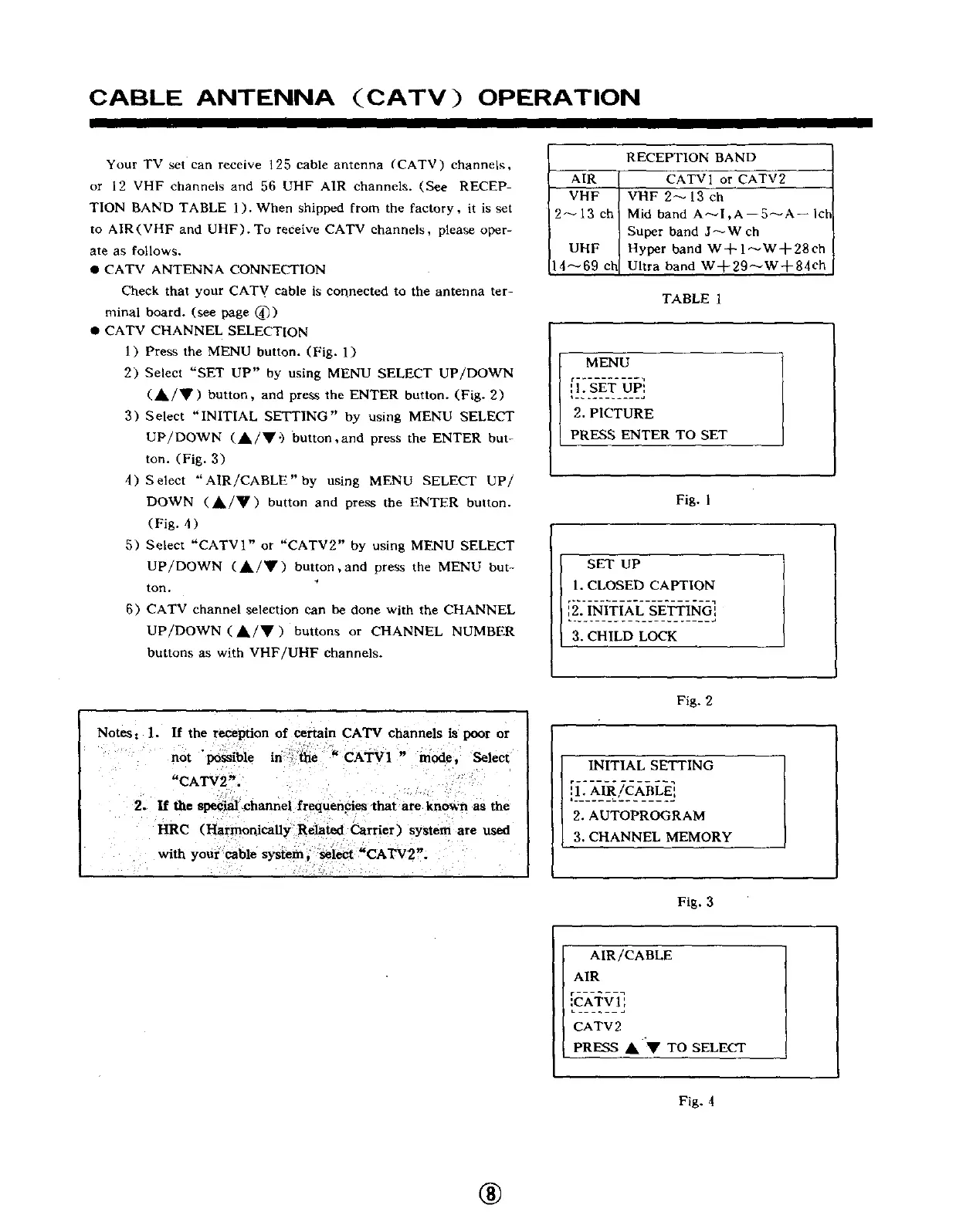

CABLE ANTENNA (CATV) OPERATION
Your TV set can receive 125 cable antenna (CATV) channels,
or 12 VHF channels and 56 UHF AIR channels. (See RECEP
TION BAND TABLE 1). When shipped from the factory, it is set
to AIR(VHF and UHF). To receive CATV channels, please oper-
ate as follows.
• CATV ANTENNA CONNECTION
Check that your CATV cable is connected to the antenna ter-
minal board. (see page _))
• CATV CHANNE L SELECTION
]) Press the MENU button. (Fig. 1)
2) Select "SET UP" by using MENU SELECT UP/DOWN
(Jk/_') button, and press the ENTER button. (Fig. 2)
3) Select "INITIAL SETTING" by using MENU SELECT
UP/DOWN (A/V.) button,and press the ENTER but-
ton. (Fig. 3)
4) Select "AIR/CABLE"by using MENU SELECT UP/
DOWN (A/V) button and press the ENTER button.
(Fig. 4)
S) Select "CATVI" or "CATV2" by using MENU SELECT
UP/DOWN (•/•) button, and press the MENU but-
ton.
6) CATV channel selection can be done with the CHANNEL
UP/DOWN (,/_) buttons or CHANNEL NUMBER
buttons as with VHF/UHF channels.
RECEPTION BAND
AIR CATVI or CATV2
VHF VHF 2_ 13 ch
2_13 ch Mid band A_I,A--S_A--lch
Super band J_W ch
UHF Hyper band W_ l_Wq-28ch
14_69 ch Ultra bandWq-29_Wd-84ch
TABLE 1
MENU
t i
',1. SET UP',
2. PICTURE
PRESS ENTER TO SET
Fig. 1
SET UP
!:CLOS
Notes: 1. If the reception of certain CATV channels is poor or
not "possible in_:the "CATV1 _ mode, Select
"CATV2".
2. If the _¢ial" channel frequencie_ that are kno,_"n as the
HRC (Harmonically Reiat_d Carrier) system are used
with your cable system, select "CA'['V2".
Fig. 2
INITIAL SETTING
,'I.AIR!CABLE'
2. AUTOPROGRAM
3. CHANNEL MEMORY
Fig. 3
AIR/CABLE
AIR
r ......
i i
,CATV 1,
L ......
CATV2
PRESS • "V' TO SELECT
Fig. 4
®
To Next Page
