ESTIMATED ASSEMBLY TIME 20-40 MINUTES
ASSEMBLY INSTRUCTIONS
For your safety, never connect plug to power source
receptacle until all assembly and adjustment steps are
completed, and you have read and understood the safety
and operating instructions.
TOOLS NEEDED
The Drill Press is very heavy and MUST be assembled with
the help of 2 PEOPLE OR MORE, to safely assemble it.

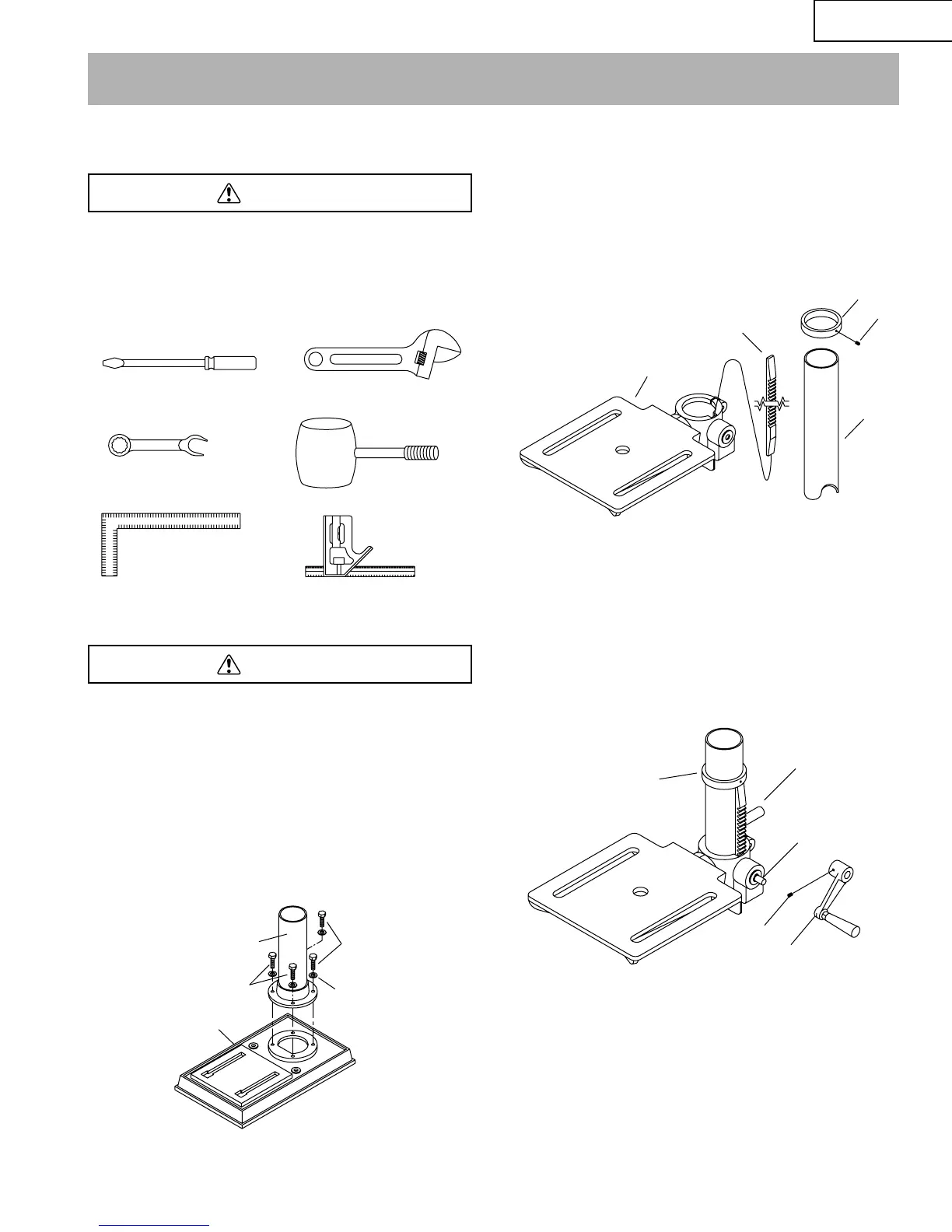

COLUMN SUPPORT TO BASE (Fig. A)
1. Position the base (1) on floor or bench.
2. Place the column (2) on the base, aligning the holes in
the column support with the holes in the base.
3. Locate the four long hex bolts (3) and washers (4) from
the loose parts bag.
4. Place a bolt in each hole through the column support and
the base. Tighten with an adjustable wrench.
INSTALLING THE TABLE (Fig. B and C)
1. Loosen set screw (1). Remove rack (2) and retaining ring
(3) from column (4).
2. Place rack inside table assembly bracket (5) with large,
unmachined portion of rack to the top. Slide rack into slot
in bracket so that teeth of reack engage pinion gear in
bracket.
3. Slide table assembly with rack over column. Place bottom
end of rack inside beveled edge of column flange.
4. (Fig. C) Slide rack retaining ring (3) over column with
beveled edge down. Position ring against top of rack so
that rack is in beveled edge of ring. Secure ring with set
screw (1).
5. Rotate table assembly around column. Adjust rack
retaining ring as necessary to prevent binding of rack.
6. Attach crank handle (6) to shaft (7), rotate to remove
slack, and shoulder crank handle against table bracket.
Secure handle with screw (8).
7. Tighten table bracket locking handle (9) to secure table
assembly.
WARNING
WARNING
ASSEMBLY AND ADJUSTMENTS
Slotted Screwdriver
Combination Wrench
Framing Square
8″ & 10″ Adjustable Wrench
Combination Square
Mallet
Fig. A
2
3
3
4
1
Fig. B
Fig. C
3
1
4
2
5
6
9
7
3
8
