Hitachi C 18DSL Handling Instructions

42
English
REPLACING LIGHT BULB
CAUTION
○ Make absolutely sure that the battery is removed from the main
body before replacing the light bulb.
○ Immediately after the light is turned OFF, the bulb retains high
temperature. Make sure to cool down the light bulb thoroughly
before replacing it so as to prevent burns.
○ When replacing the light bulb, check the shape of base as well
as the rating (12 V, 5 W), and then carry out perfect mounting.
Otherwise, the light bulb can come off and/or cause overheat.

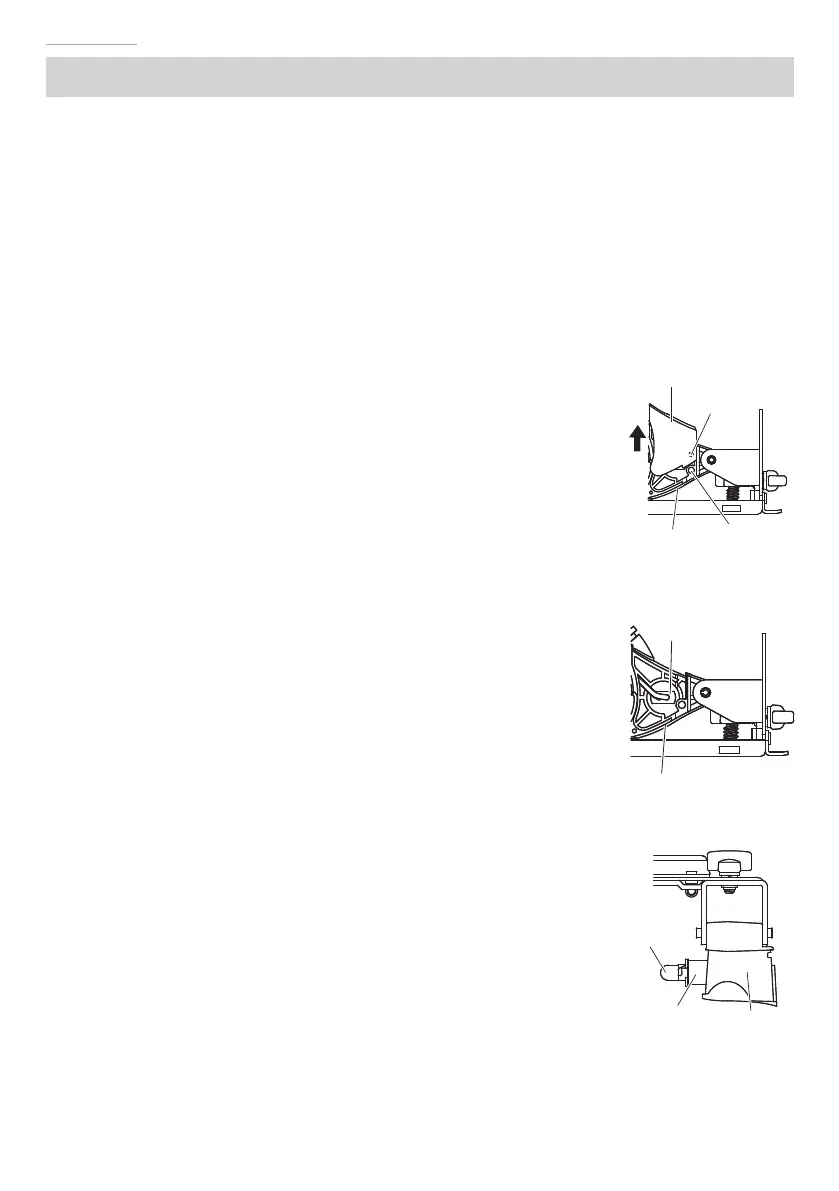

1. Detaching light bulb
(1) Remove the convex part of the light cover from the
concave part of the handle cover, and then pull out
the light cover in the arrow-marked direction as
shown in Fig. 27.
(2) Push the back of the socket, and remove the socket
and the light bulb together from the handle cover
(Fig. 28).
(3) Remove the light bulb from the socket (Fig. 29).
2. Attaching light bulb
Take procedures here that are contrary to the
detaching procedures.
NOTE
○ When attaching the light bulb to the socket, insert
the light bulb until it lightly bumps against the
socket.
○ When attaching the socket to the handle cover,
align the socket with the hole of housing while
watching the back of the socket shown in Fig. 29,
and insert the socket until it lightly bumps against
the handle cover.
Fig. 27
Light cover
Convex
Housing
Concave
Fig. 28
Back of
the socket
Housing
Fig. 29
Housing
Socket
Light
bulb
