Hitachi C 6SS User Manual

-11-
Blue (Lead wire
from stator to
switch)
Fig. 9
Fig. 10
Fig. 11

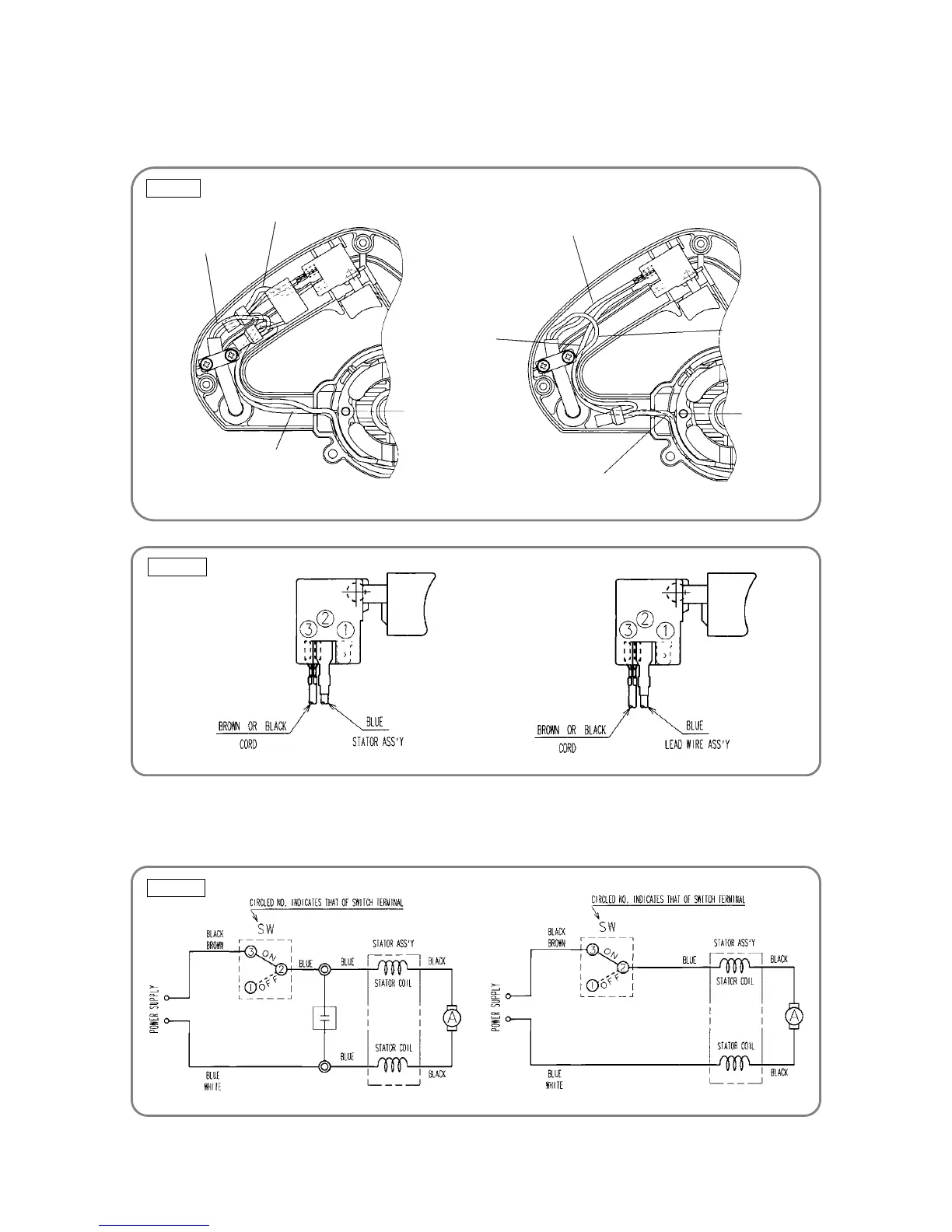

6. Wiring procedure
Wiring should be done by referring to Figs. 9 and 10 below. During installation, be careful not to pinch the.
lead wires between the housing and handle cover. (Left: with condenser Right: None)
7. Wiring diagram
(Left: with condenser Right: None)
Blue (Lead wire to
switch
)
Brown or Black
(Lead wire from
cord
)
Blue (Lead wire
from stator)
Brown or Black
(Lead wire from
cord
)
Blue or White
(Lead wire from
cord
)
Blue (Lead wire from stator)
