Hitachi Compute Blade 2000 User Manual

3-2 Names and Functions of Individual Parys
Names and Functions

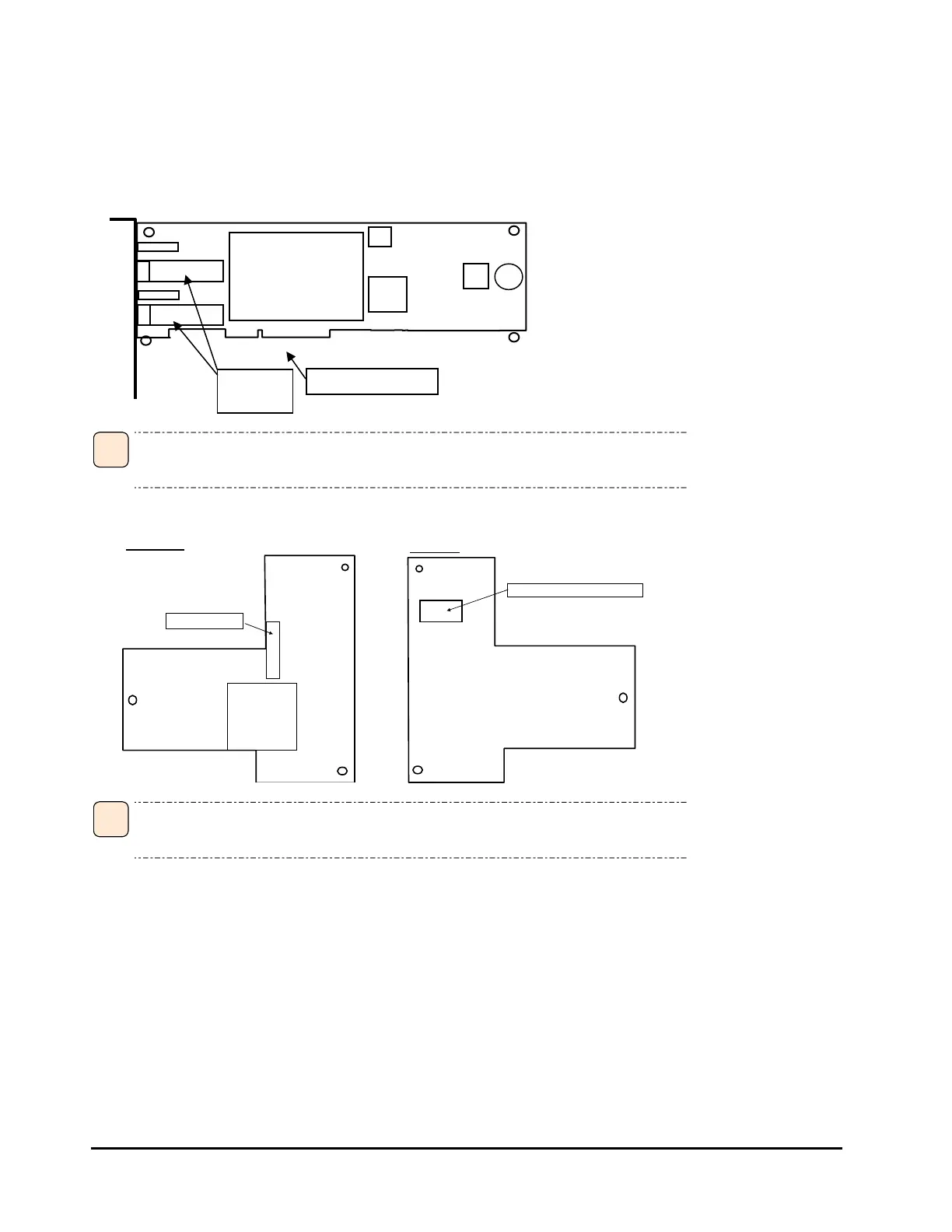

The above figure illustrates "CC2N8G3X1"and“CC9P8G1X1”and”CC2D8G3X1”.
CC2N8G3X1 and CC9P8G1X1 and CC2D8G3X1 are 2-port type which contains 2 SFP connectors.
The above figure illustrates "CC9M4G2X1”and “CC2M8G3X1”. CC9M4G2X1 and CC2M8G3X1
are 2-port type which is not contain SFP connector.
• • •
Tip
• • •
Tip
PCI Express connector
SFP
connectors
Lavel of WWN
Guide bore
Upper side
Guide bore
Guide bore
Connector with Blade Server
Under side
Guide bore
Guide bore
Guide bore
